• Model NO.：FEP15
• Lift height：120mm
• Condition：New
• Weight：245kg
• Fork Size：1150mm*160mm*75mm
• Rated Capacity：1500kg
• Lifting Height：120mm
• Operating Type：Walkie
• Brand：Ltmg
• Warranty：1 Year or 2000 Working Hours
• Controller：Curtis
• Battery Weight：48kg
• Transport Package：Container
• Specification：1707mm*697mm*1181mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：1000set,Month

FULL ELECTRIC PALLET TRUCKMODELItemSpecificationUnitFEP151GeneralRated capacityKg15002Load center mm6003Drive type Standed4Motor brake  Electromagnetic5Load distance (centerline of front axle to front face of forks)mm963/10546Battery weightKg487Self weight (with battery)Kg2868Full Load per Axle - Driving side / bearing sideKg675/11159Empty Load per Axle -  Driving side / bearing sideKg230/6010DimensionsLifting Height (standard)mm12011Fork min. ground clearancemm8512Adjust width of fork (standard)mm520/65013Fork sizemm47/160/122014Minimum ground clearancemm2415Overall lengthmm166016Overall widthmm70017Overall height (including handle )mm123518Bodywork heightmm67719Wheel tread (front/rear)mm490/49020Supporting wheel treadmm131021Minimum turning radiusmm197622Stacking right angle aisle width (1200mm pallet)mm197623PerformanceMax. driving speed (full)Km/h524Max. driving speed (empty)Km/h5.225Max. lifting speed (full)mm/s2726Max. lifting speed (empty)mm/s3527Max. declining speed (full)mm/s4228Max. declining speed (empty)mm/s2729Gradeability  full/empty%5/830Steering angle°20531Sound level at the driver's eardB(A)<7032WheelWheels material Polyurethane33Wheel number (front/rear) 4/334Drive wheel (mm)mmφ252X8935Load wheel (mm)mmφ74X7036Balance wheel (mm)mmφ100X4037Power and ControlTravel motorKW0.838Lift motorKW0.639VoltageV2X1240Battery capacityAh8041Power Electric

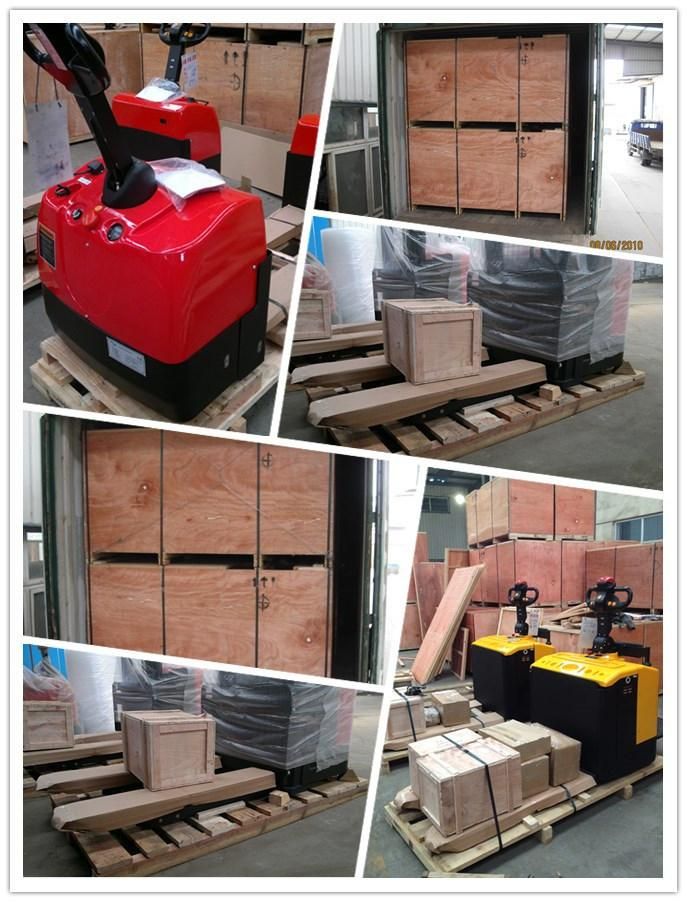

Packaging&Shipping

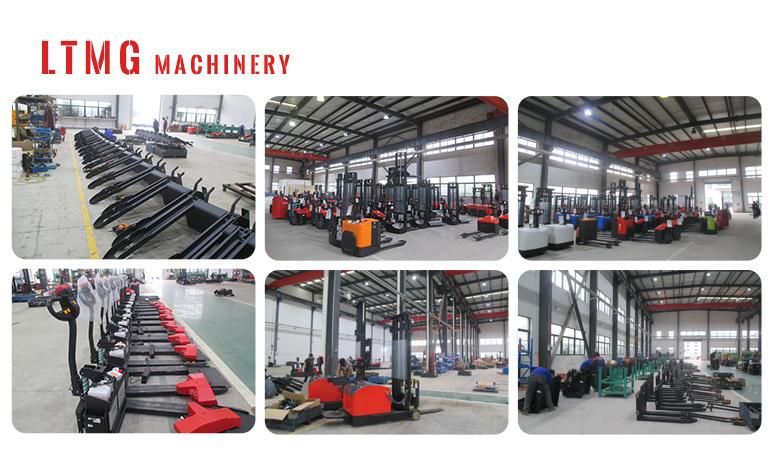

Factory Show


LTMG machinery is engaged in forklift industry over 20 years.We produce a wide range of forklifts, loaders and airport tractors
If you are interested in our product,you could visit our website.
Website:
Ltmg.group
http://ltmamachine.en.made-in-china.com (Group)
http://ltmamachine.en.made-in-china.com  (Forklift)
http://ltmamachine.en.made-in-china.com  (Loader)
http://ltmamachine.en.made-in-china.com (Airport GSE)

Customers Show
Our LTMG Forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The quality of our LTMG forklift has been recognized by our customers.



After Sales Service

LTMG believes that after-sale service is as important as sale. And now we have more than 50 agents around the world to provide LTMG professional after-sale service.
All the product of LTMG supplied comes with one year or 2000 working hours (which occurs first) period quality warranty.
LTMG can also help clients coordinate with professional trained service engineer to provide you comprehensive knowledge about your machine. With our technical support, your machine service life can be significantly prolonged and sustained with high capacity.
Detail clauses and policies please check our website and product certificate.
