New Mini 1.5 Ton Electric Pallet Truck
Xiamen LTMG Machinery Co., Ltd.- Warranty：1 Year or 2000 Working Hours
- Cab Location：Not Adjustable
- Type：Powered Pallet Truck
- Power：AC Motor
- Load Capacity：1T - 5T
- Fuel：Electric
Base Info
- Model NO.：FEP15
- Load center：>500mm
- Lift height：120mm
- Condition：New
- Weight：286kg
- Fork Size：1220mm*160mm*47mm
- Rated Capacity：1500kg
- Lifting Height：120mm
- Fork Min. Ground Clearance：85mm
- Drive Type：Standed
- Brand：Ltmg
- Operating Weight：1500kg
- Battery Weight：48kg
- Transport Package：Container
- Specification：1660mm*700mm*1235mm
- Trademark：LTMG
- Origin：China
- HS Code：8427109000
- Production Capacity：800set,Years
Description
| Characteristics | ||
| Manufacturer | LTMG | |
| Model designation | FEP15 | |
| Drive unit | Battery | |
| Operator type | Walkie | |
| Load capacity | KG | 1500 |
| Load center | Mm | 600 |
| Wheelbase | Mm | 1303 |
| Weight | ||
| Service weight (Incl.Battery) | Kg | 222 |
| Battery Weight | Kg | 48 |
| Wheels | ||
| Tyre type | PU/ PU | |
| Driving Wheel Size | Mm | Ф210x70 |
| Balance Wheel Size | Mm | Φ80x17 |
| Bearing Wheel Size | Mm | Φ84x70 |
| Wheel Quantity Driving Wheel/Balance Wheel/Bearing Wheel | 2001-2-4 | |
| Dimension | ||
| Min.Lowered Fork Height | Mm | 85 |
| Max.Fork Lifting Height | Mm | 205 |
| Max.Lifting Height | Mm | 120 |
| Outside Width Between Forks | Mm | 550/685 |
| Inside Width Between Forks | Mm | 230/365 |
| Fork Length | Mm | 1150/1200 |
| Fork Width | Mm | 160 |
| Fork Thickness | Mm | 75 |
| Overall Length | Mm | 1826 |
| Overall Width | Mm | 698 |
| Overall Height(With Handle) | Mm | 1294 |
| Overall Height(Without Handle) | Mm | 648 |
| Min.Turning Radius | Mm | 1593 |
| Min.Aisle width, 1000×1200 pallet crossways | Ast (mm) | 1939 |
| Min.Aisle width, 800×1200 pallet lengthways | Ast (mm) | 1972 |
| Performance | ||
| Travel speed, laden/ unladen | Km/ h | 3.5/4 |
| Lifting speed, laden/ unladen | Mm/ s | 35/40 |
| Lowering speed, laden/ unladen | Mm/ s | 75/60 |
| Gradeability, laden/ unladen | % | 5/7 |
| Electrical Configuration | ||
| Drive motor/ Lift motor | KW | DC0.65/DC0.80 |
| Battery Voltage | V | 24 |
| Battery Capacity | Ah | 85 |
| Brake | Electromagnetic/Regenerative | |
| Controller | Curtis | |

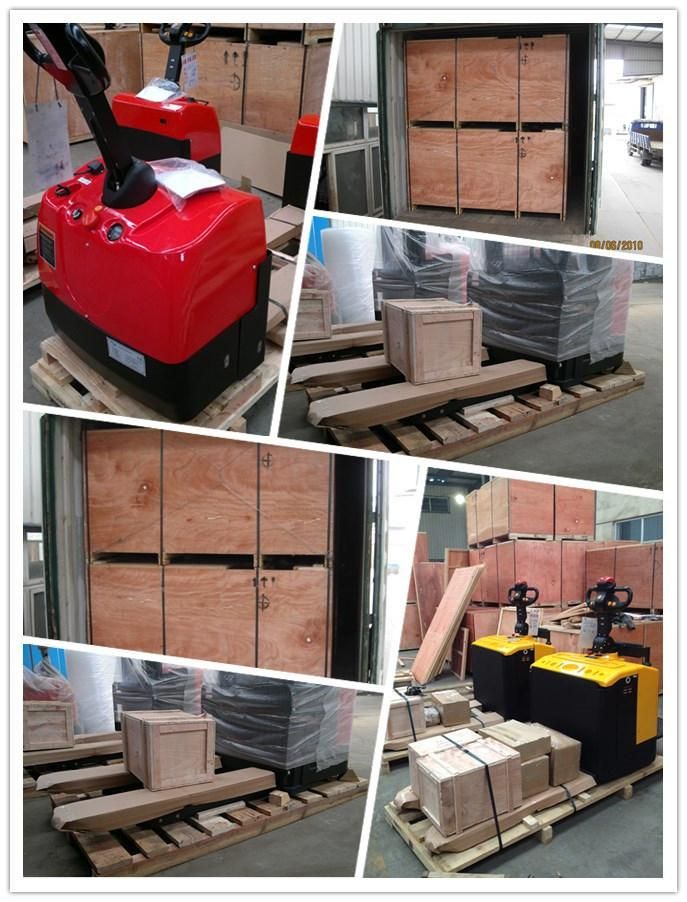

Packaging&shipping
