• Model NO.：manual forklift-56
• Load Capacity：1T - 5T
• Fuel：Manual Stacker
• Load center：>500mm
• Lift height：1600mm
• Condition：New
• Product：Hand Pallet Stacker Manual Forklift
• Capacity：1t-3t
• Nw：300kg,Manaul Stacker
• Wheel Type：Nylon Wheel Manual Stacker
• Manual Stacker Pallet Size：500X530X90mm
• Specification of Manual Stacker：1300*680*2000mm
• Key Words：Hand Pallet Truck,Manual Stacker
• Color：Yellow,Red,Orange
• Pump：AC
• Overall Length：1284
• Transport Package：Package of Manual Stacker: Wood Pallet
• Specification：steel
• Trademark：HUGO
• Origin：China
• HS Code：8427109000
• Production Capacity：300pieces Manual Stacker,Day
• Package size per unit product：190.00cm * 98.00cm * 235.00cm
• Gross weight per unit product：220.000kg

Specification of  Hydraulic High lift hand pallet truck/ jackModelLoading capacityLifting heightH. of MastForks HeightFork TypeWeightMS-100/161000kg1600mm2080mm85mmFixed 550x1150mm180kgMS-100/201000kg2000mm1580mm85mmFixed 550x1150mm200kgMS-100/251000kg2500mm1830mm85mmFixed 550x1150mm220kgMS-100/301000kg3000mm1830mm85mmFixed 550x1150mm240kgMS-150/161500kg1600mm1830mm85mmFixed 550x1150mm210kgMS-150/201500kg2000mm1830mm85mmFixed 550x1150mm230kgMS-150/251500kg2500mm1830mm85mmFixed 550x1150mm250kgMS-150/301500kg3000mm2080mm85mmFixed 550x1150mm270kgMS-200/162000kg1600mm2080mm85mmFixed 550x1150mm240kgMS-200/202000kg2000mm1580mm85mmFixed 550x1150mm260kgVR-MS-200/252000kg2500mm1830mm85mmFixed 550x1150mm280kg

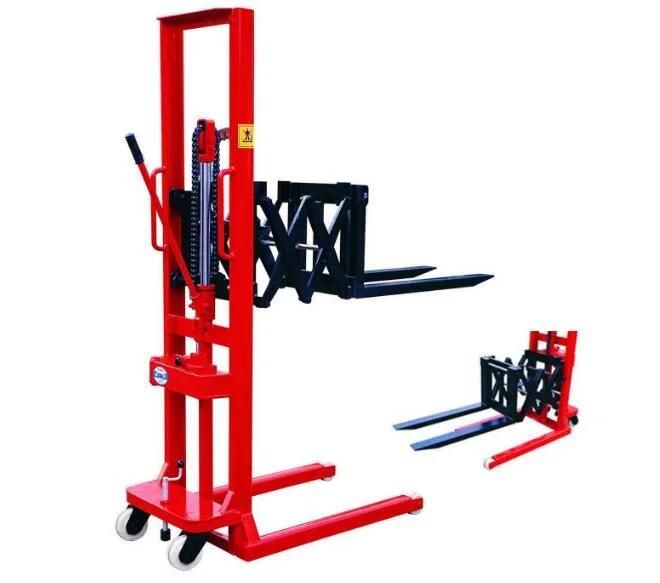

Products show of 1.5 tonne hand pallet stacker manual forklift with best price

 Details of 1.5 tonne hand pallet stacker manual forklift with best price

1)The hydraulic consists of three parts:

the elevating cylinder and controlling parts,the elevating arm and chain-wheel parts,the gantry and back-wheel parts.
The lift lifts the weights with a manual or pedal hydraulic device,and loads weights with manual pull and push at a low position.
The oil-reflow valve is placed in the hydraulic device.
The descending speed is controlled through the pedal,ensuring the correct action of the hydraulic system and safety.

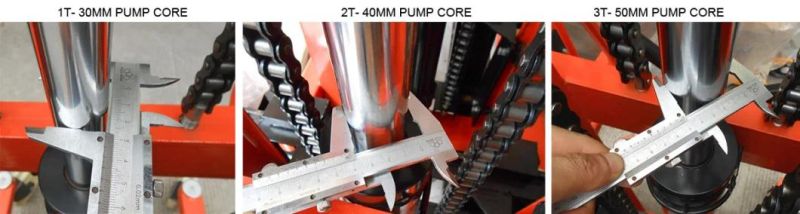

2)Big pump, strong heart

Package of 1.5 tonne hand pallet stacker manual forklift with best price

Factory of manual stacker and pallet truck
