• Model NO.：M630-60
• Lift height：>5000mm
• Condition：New
• Name：Telescopic Forklift Handler
• Engine：Chinese,Janpan,USA
• Rated Power：55~100kw
• Rated Loading Capacity：3ton, 4 Ton, 5ton
• Max. Lifting Height：6m, 7m, 9m, 12m
• Attachments：Quick Hitch, Fork, Bucket, Clamp, Platform
• Driving Type：Hydrostatic 4X4
• Driving Mode：Front,4 Wheel,Crab Steering
• Min. Ground Clearance：330mm
• Usage：Farming Loader, Construction Loader, Snow Loader
• Quick Hitch：Hydraulic
• Color：Yellow, White, Green, Red, Customize
• Warranty：1 Year
• Telehandler Brands：Jcb, Deici, Ghl
• After Sales Service：Free Spare Parts, Technical Support
• Transport Package：Container
• Specification：3 ton telescopic forklift
• Trademark：STEEL CAMEL
• Origin：China
• HS Code：8427209000
• Production Capacity：600 Sets, Year

Basic Info.

Model NO. M630-60 Lift height >5000mm Condition New Name Telescopic Forklift Handler Engine Chinese/Janpan/USA Rated Power 55~100kw Rated Loading Capacity 3ton, 4 Ton, 5ton Max. Lifting Height 6m, 7m, 9m, 12m Attachments Quick Hitch, Fork, Bucket, Clamp, Platform Driving Type Hydrostatic 4X4 Driving Mode Front/4 Wheel/Crab Steering Min. Ground Clearance 330mm Usage Farming Loader, Construction Loader, Snow Loader Quick Hitch Hydraulic Color Yellow, White, Green, Red, Customize Warranty 1 Year Telehandler Brands Jcb, Deici, Ghl After Sales Service Free Spare Parts, Technical Support Transport Package Container Specification 3 ton telescopic forklift Trademark STEEL CAMEL Origin China HS Code 8427209000 Production Capacity 600 Sets/ Year

Product Description

Better agriculture loadall machine hydrostatic 4x4 telehandler M630-60
 General introduction:

STEEL CAMEL M630-60 telescopic forklift handler was a purpose-built machine which can be operated on narrow spaces, slippery ground and can handle with heavy workloads. Its compact dimensions, incredible manoeuvrability, unparalleled build quality and all-day operator comfort are just the ideal machine you are looking for.

As developed to the exact needs of agricultural operators. You can therefore also expect maximum productivity, efficiency , safety and serviceability.

1.Top qualiaty components

Germany/Japan famous brand engine, Italy driving and hydraulic components

High strength steel for boom

Electrical control motor & pump

Waterproof electrics

Powerful and strong Corraro driving axle

2.Driving & Steering

4 x 4 wheel drive and steering (when choose the option)
Fantastic manuverability in rough terrain.

One switch control three driving mode:
Front wheel steering;
Front & rear wheel steering;
Crab driving

3.Operating comfort

Hydro-electrical joystick control
Easy operation, one hand control, offer best operating comfort to operator, long time working won't feel tired.

Adjustable steering assembly and seat
Always one comfortable position for you

Hydrostatic transmission,stepless speed change

Standard heated cabin + optional air conditioner
All season and weather comfort

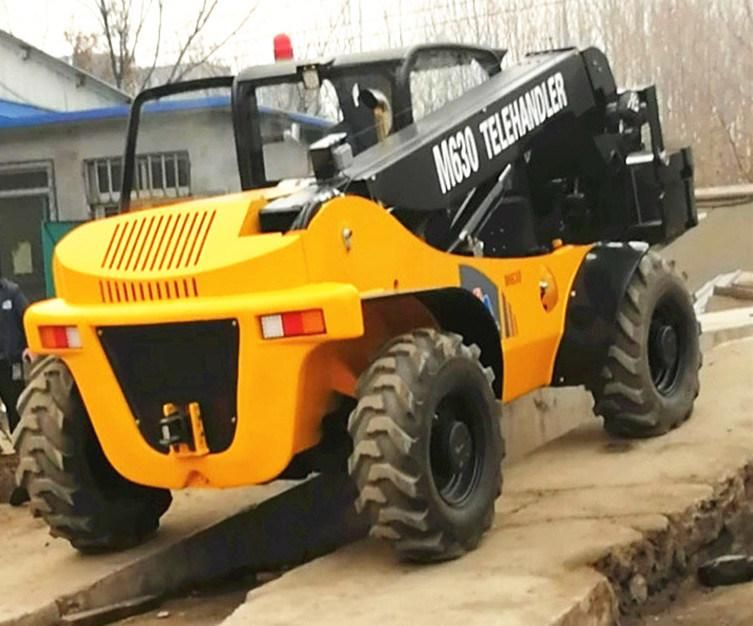

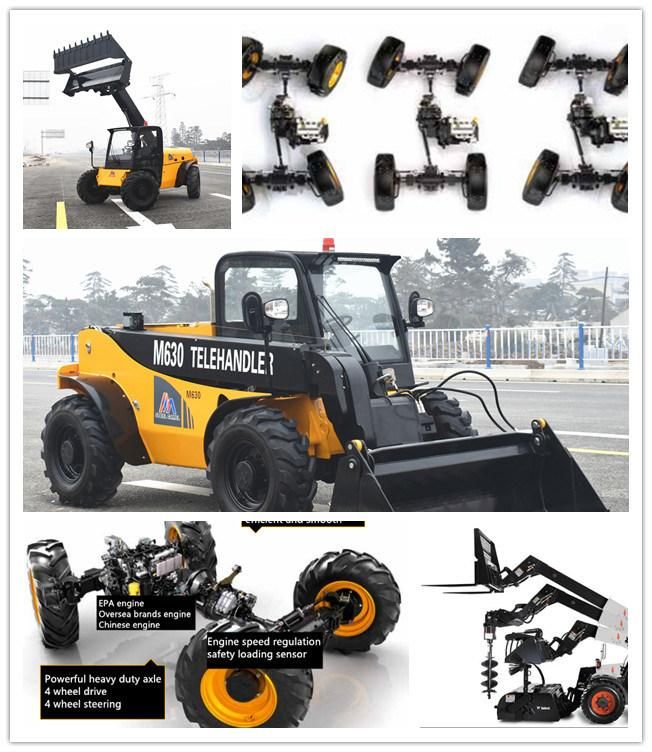

Detailed images of M630-60 telehandler:



Technical data:

Engine	Kohler EPA Tier 4 / Yanmar / Chinese
Rated power	55kw~75kw
Dimension (LxWxH)	3970x2090x2150mm
Rated loading capacity	3000kg
Max. Lifting height	5700mm
Max. Loading capacity in levelwith boom extended	1200kg
Max. Reach in level with boom extended	3500mm
Speed	10/24km/h
Min. Turning radius	3220mm
Truning angel	35 degree
Operating weight	5560kg
Track	1780mm
Wheelbase	2400mm
Tire	12.5/80-18
System pressure	20Mpa
Hydraulic output	82L/min

Application of STEEL CAMEL M630-60 telehandler:

STEEL CAMEL M630-60 4x4 mini telehandler is the ideal choice for almost any task that involves material lifting, moving or placing materials. All of its good features like four-wheel drive, hydro-static transmission, hydraulic power steering, hydraulic brake, full-wheel steering, guarantee its power, stability,safety and efficiency, makes it can hand over all kinds of rough working area. It was widely used in construction material handling, container carrying and logistics, agricultural fields, ect.

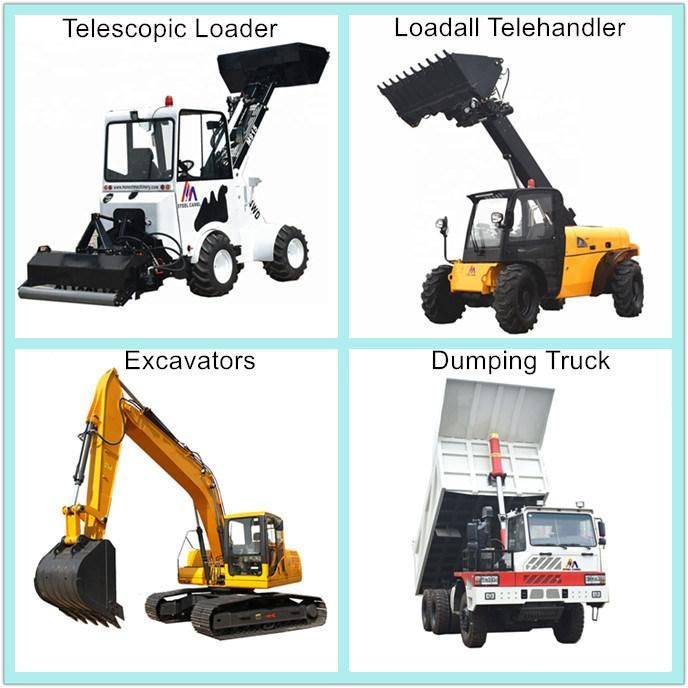

STEEL CAMEL products range:

We produce a wide range of machinery, telescopic loader, telehandler, excavators, dump trucks, and loader attachments. If any of them be of your interest, please inquiry by product name, I will send details for your information.

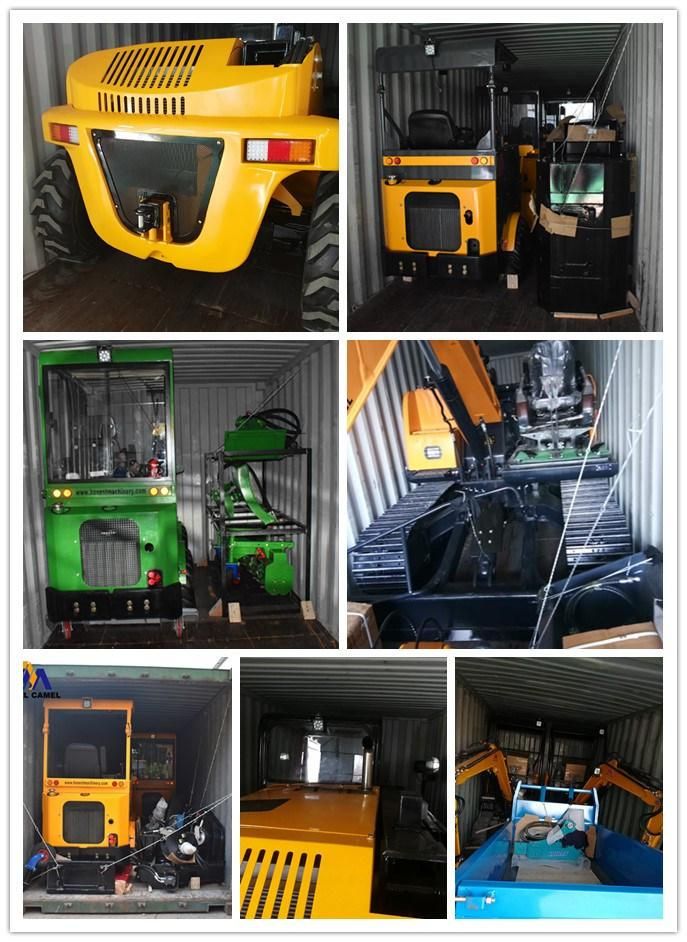

Packing & Delivery:

Till now STEEL CAMEL products, telehandlers, wheel loaders, excavators, attachments etc. have been servicing customers in many countries, like Germany, Russia, Poland, UK, Argentina, Australia, USA, Canada, Indonisia, Spain......


Our service:

Pre-Sales Service:	After Sales Service:
* Inquiry and consulting support.  * Oversea sample testing support.  * Visiting our Factory. * Transporting from factory to door	* Training how to instal the machine, * Training how to use the machine.  * Engineers available to service machinery   overseas. * Warranty and whole workling life service

Inquiry Now:With more than 10 years' experience of production and exporting, I'm ready to be your reliable consultant about products and importing procedure anytime.

Send an inquiry, leave your questions, I will take care of all the rest matters. Anna Guan/Marketing director
