• Model NO.：M630-60
• Lift height：>5000mm
• Condition：New
• Name：Telescopic Forklift
• Engine：Chinese,Janpan,Germany
• Rated Power：55~75kw
• Rated Loading Capacity：3000kg
• Max. Lifting Height：6000mm
• Dimension：3970X2090X2150mm
• Weight：6000kg

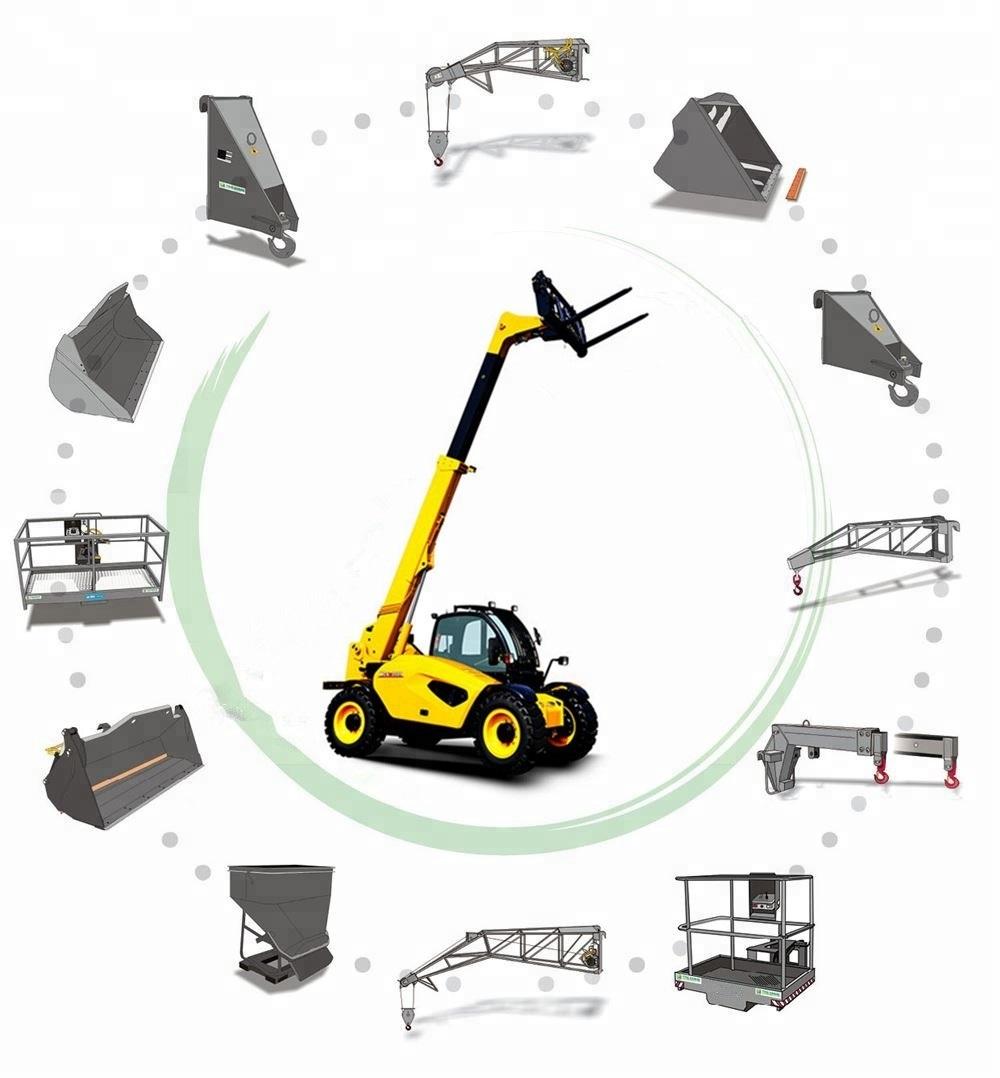

• Attachments：Quick Hitch, Fork, Bucket, Clamp, etc.
• Driving Type：Hydrostatic 4WD
• Steering Type：Full Wheel Steering
• Terrain Forklift：Yes
• Warranty：1 Year
• Color：Yellow, White, Green, Red, Customize
• After Sales Service：Free Spare Parts, Technical Support
• Shipment：by Container
• Transport Package：Container
• Specification：3 ton telescopic forklift
• Trademark：STEEL CAMEL
• Origin：China
• HS Code：8427209000
• Production Capacity：600 Sets, Year

Basic Info.

Model NO. M630-60 Lift height >5000mm Condition New Name Telescopic Forklift Engine Chinese/Janpan/Germany Rated Power 55~75kw Rated Loading Capacity 3000kg Max. Lifting Height 6000mm Dimension 3970X2090X2150mm Weight 6000kg Attachments Quick Hitch, Fork, Bucket, Clamp, etc. Driving Type Hydrostatic 4WD Steering Type Full Wheel Steering Terrain Forklift Yes Warranty 1 Year Color Yellow, White, Green, Red, Customize After Sales Service Free Spare Parts, Technical Support Shipment by Container Transport Package Container Specification 3 ton telescopic forklift Trademark STEEL CAMEL Origin China HS Code 8427209000 Production Capacity 600 Sets/ Year

Product Description

6m/7m/9m/12m side telescopic boom forklift telehandler for sale
 General introduction:

STEEL CAMEL brand M630-60 telescopic forklift adopts hydrostatic transmission, 4 wheel drive and 4 wheel steering, have fantastic manuverability in the rough farming and construction terrain.


1.Top qualiaty components

Germany/Japan famous brand engine, Italy driving and hydraulic components

High strength steel for boom

Electrical control motor & pump

Waterproof electrics

Powerful and strong driving axle
2.Driving & Steering
4 x 4 wheel drive and steering (when choose the option)
Fantastic manuverability in rough terrain.

One switch control three driving mode:
Front wheel steering;
Front & rear wheel steering;
Crab driving

3.Operating comfort
Hydro-electrical joystick control
Easy operation, one hand control, offer best operating comfort to operator, long time working won't feel tired.

Adjustable steering assembly and seat
Always one comfortable position for you

Hydrostatic transmission,stepless speed change

Standard heated cabin + optional air conditioner
All season and weather comfort

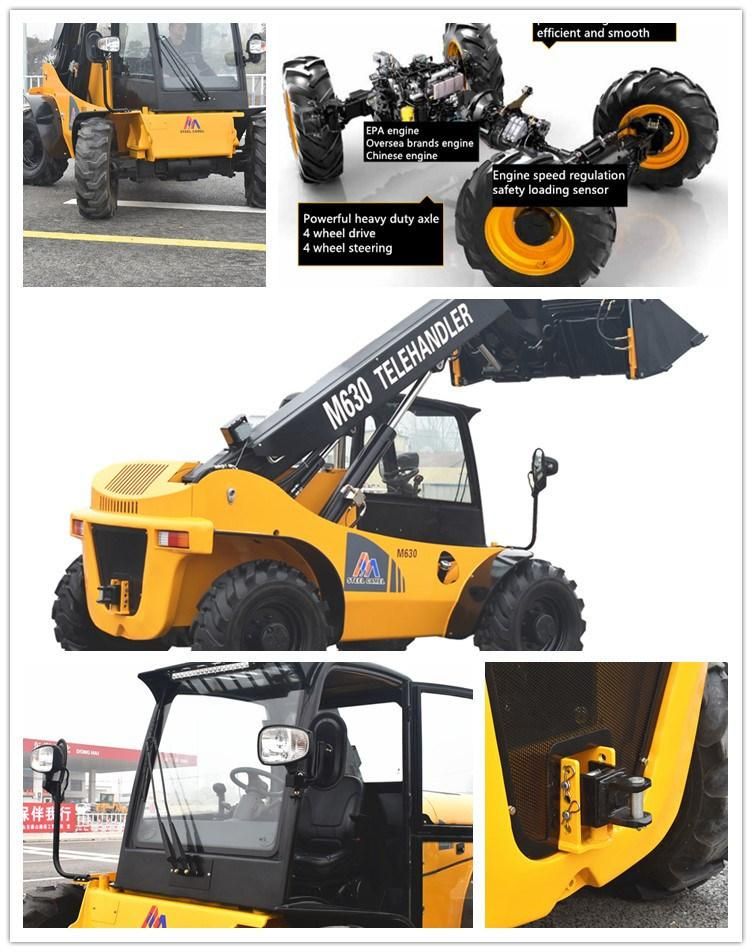

Detailed images of M630-60 Telescopic Forklift:

Technical data:

Model	M630-60 telescopic forklift (Telehandler)
Engine	Kohler EPA Tier 4 / Yanmar / Chinese
Rated power	55kw~75kw
Dimension (LxWxH)	3970x2090x2150mm
Rated loading capacity	3000kg
Max. Lifting height	5700mm
Max. Loading capacity in levelwith boom extended	1200kg
Max. Reach in level with boom extended	3500mm
Speed	10/24km/h
Min. Turning radius	3220mm
Truning angel	35 degree
Operating weight	5560kg
Track	1780mm
Wheelbase	2400mm
Tire	12.5/80-18
System pressure	20Mpa
Hydraulic output	82L/min

Application of STEEL CAMEL M3.0-6 telescopic fork material handler:

STEEL CAMEL M3.0-6 4x4 mini telehandler is the ideal choice for almost any task that involves material lifting, moving or placing materials. All of its good features like four-wheel drive, hydro-static transmission, hydraulic power steering, hydraulic brake, full-wheel steering, guarantee its power, stability,safety and efficiency, makes it can hand over all kinds of rough working area. It was widely used in construction material handling, container carrying and logistics, agricultural fields, ect.

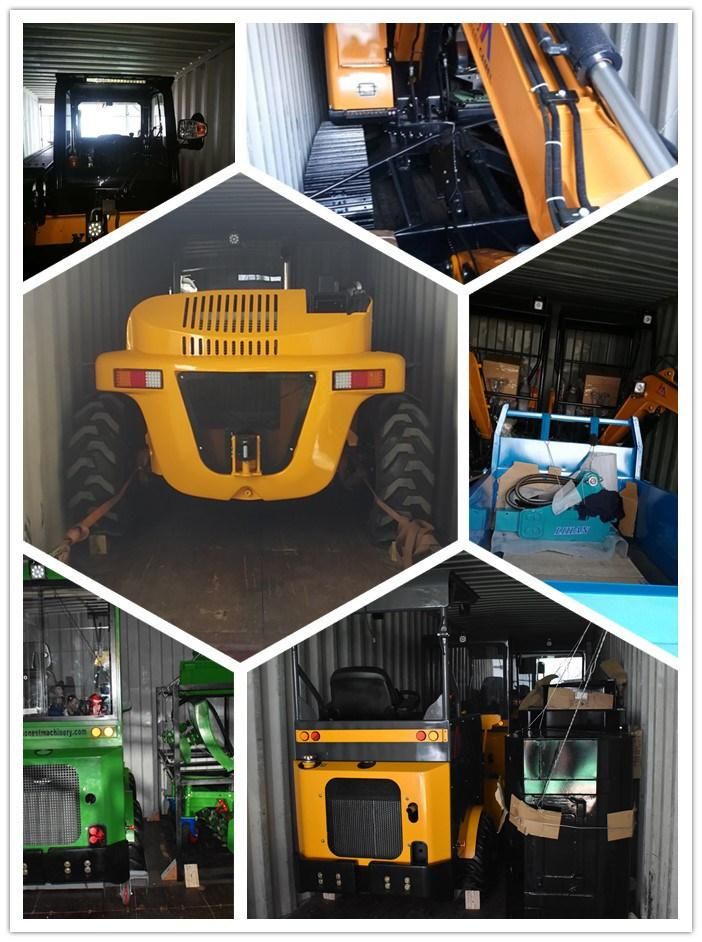

Packing and delivery:

Till now STEEL CAMEL products, telehandlers, wheel loaders, excavators, attachments etc. have been servicing customers in many countries, like Germany, Russia, Poland, UK, Argentina, Australia, USA, Canada, Indonisia, Spain......

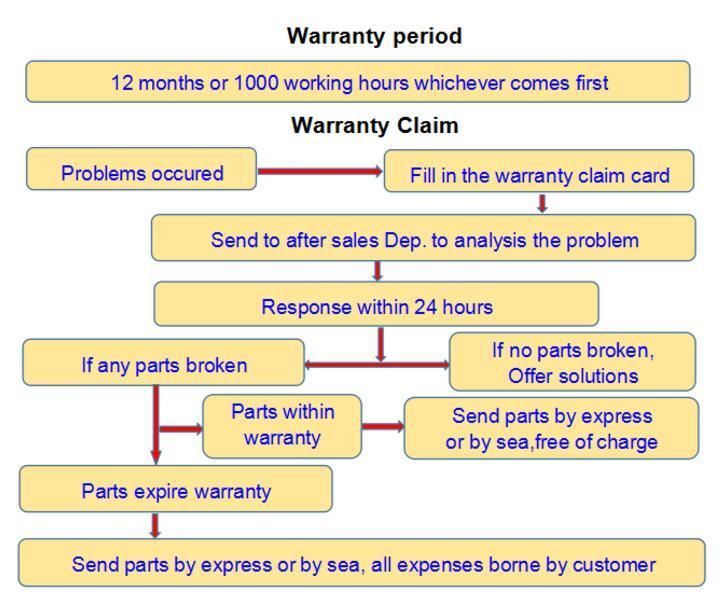

Warranty:


Inquiry Now:With more than 10 years' experience of production and exporting, I'm ready to be your reliable consultant about products and importing procedure anytime.

Send an inquiry, leave your questions, I will take care of all the rest matters. Anna Guan/Marketing director
