Ltmg Mini Forklift 2 Ton Electric Forklift with Curtis Controller

XIAMEN LTMG CO., LTD.
  • Cab Location：Adjustable
  • Type：Electric Forklift
  • Power：AC Motor
  • Load Capacity：2t
  • Fuel：Battery
  • Load center：500mm

Base Info

  • Model NO.：FB20
  • Lift height：3000~5000mm
  • Condition：New
  • Fork Size：1070mm*122mm*40mm
  • Weight：3440kg
  • Wheelbase：1400mm
  • Free Lift：160mm
  • Color：Could Be Designed by Buyer
  • Warranty：1 Year,2000 Working Hours
  • Tire Type：Pneumatic
  • Overall Length(Without Fork)：2245mm
  • Mast Height (Fork Lowering) ：1995mm
  • Total Width ：1150mm
  • Transport Package：Container
  • Specification：2245mm*1150mm*2145mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：8427109000
  • Production Capacity：800sets,Year

Description

LTMGModel   FB20Load capacity   kg2000Load center     mm500Power unit   BatteryOperator type  Driver/seatTire type  pneumaticWheel(x=driving)Front/rear        2X/2Max. lifting height   mm3000Free lift  mm160Fork size   L*W*Tmm1070*122*40Tilt range Mast forward/backwarddeg6/12Overall length(without fork)  mm2245Total width  mm1150Mast height (fork lowering)  mm1995Overall height fork raised With backrestmm4030Height to head guard mm2145Turning radius(outside) mm1980Front overhang ( face of fork to front axle) mm445Min. right angle stacking aislenot add load length&clearancemm2425Speed Max Travellingfull loadkm/h13.5Max Travellingno load km/h15Liftingfull loadmm/s240Liftingno load mm/s450Gradeability full load %12.5Truck weight(with standard battery) kg3440Weight  distribution  Fullloadfront/rearkg4565/875Noloadfront/rearkg1445/1995Tires  Number  front/rear2/2Model    front axle21*8-9-16PRrear axle18*7-8-14PRWheelbase  mm1400Tread Front/rear  mm955/950Ground clearanceAt lowest point(mast)  mm110Frame  mm115BrakeServicebrake  Hydraulic-foot pedal Parking brake Mechanical-hand leverBattery  Voltage/capacity V/AH/5hr48V-450Weight with box(standard) kg 825Electric motor AC Driving motor kw11DC Hydraulic driving motor kw8.6 AC Hydraulic driving motor (as option)kw13Control type  Driving AC , lifting DC
Driving AC , lifting AC (as option ) Operating pressure    kg/cm²175

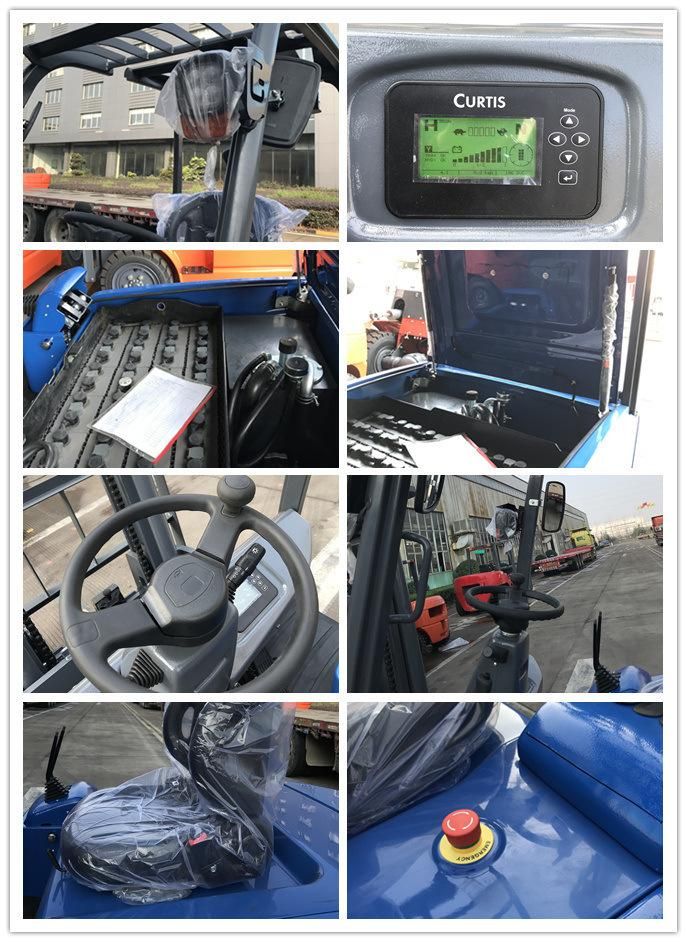

Details
Ltmg Mini Forklift 2 Ton Electric Forklift with Curtis Controller

Product Features

1.Safe: LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.New designed overhead guard protective device prevent the sudden accidents.Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate: Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable: New suspension adjustable seat makes the long time operating more comfortable. Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable: Sunken tilt cylinder under the floor build broader flat floor and less abrasion.Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.Thicker steering axle bridge deck.

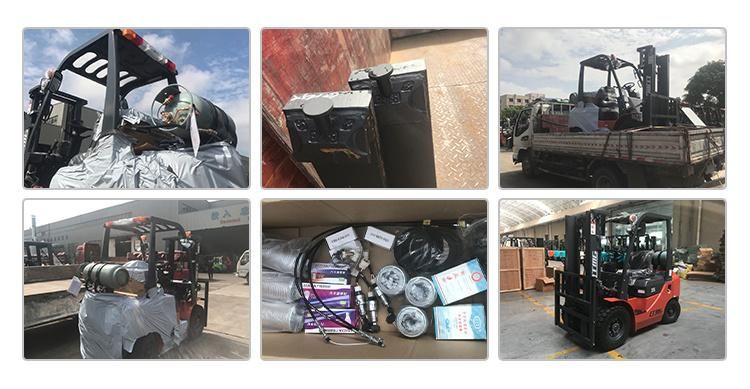

Packing & Delivery


Ltmg Mini Forklift 2 Ton Electric Forklift with Curtis Controller



Our factory


Ltmg Mini Forklift 2 Ton Electric Forklift with Curtis Controller



Our customer


Ltmg Mini Forklift 2 Ton Electric Forklift with Curtis Controller



 Forklift application
Ltmg Mini Forklift 2 Ton Electric Forklift with Curtis Controller

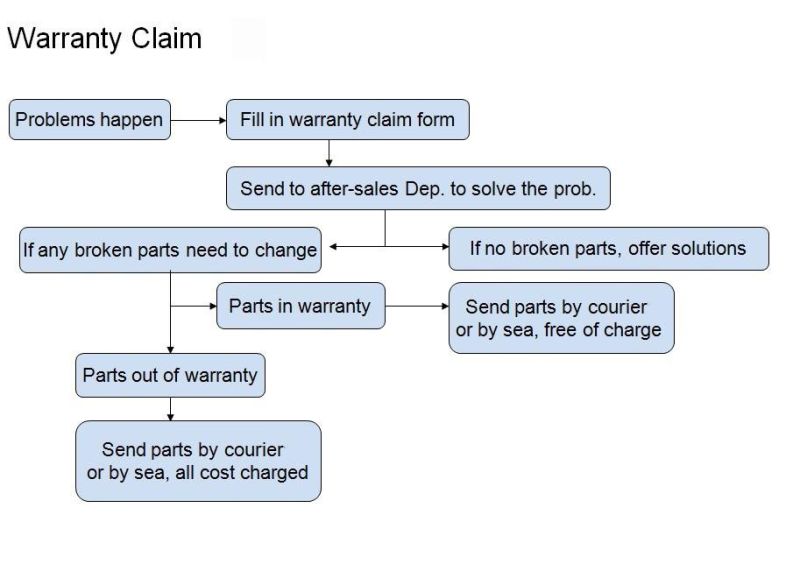

After sales service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.

Ltmg Mini Forklift 2 Ton Electric Forklift with Curtis Controller
Ltmg Mini Forklift 2 Ton Electric Forklift with Curtis Controller



FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
