• Model NO.：FD30
• Lift height：3-6m
• Condition：New
• Engine：Imported Engine (Isuzu Mitsubishi) Engine
• Tire Type：Pneumatic
• Fork Size：1070*125*45mm
• Turning Raduis：2445
• Truck Weight：4380kg
• Item：Industrial Forklift
• Battery：12,80V,Ah
• Brand：Ltmg
• Transport Package：Nude Packing, Fixed in Container
• Specification：2705mm*1225mm*2140mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：3000sets,Year

Manufacturer  LTMGModelPower shift t/mFD30Manual shift t/mFD30Load capacity Kg3000Load center Mm500Power unit  DieselOperator type  Driver/seatTire type  PneumaticWheelFront/rear 2/2Max.Lifting height Mm3000Free lift Mm150Fork sizeL*w*tMm1070*125*45Tilt rangeMast forward/backwardDeg6/12Overall length(without fork) Mm2705Total width Mm1225Mast height (fork lowering) Mm2075Overall height fork raisedWith backrestMm4250Height to head guard Mm2140Turning radius(outside) Mm2445Front face of fork to front axle Mm480Min.Right angle stacking aisleWithout load length&clearanceMm2925SpeedMax travelling full/no loadKm/h18/19.5Lifting full/no loadMm/s450/500Lowering full/no loadMm/s450/450Max.Drawbar pullPower shift t/m full/no loadKg1500/1000Manual shift t/m full/no loadKg1550/1000Gradeability at 1.6km/hPower shift t/m full/no load%18/20Manual shift t/m full/no load%18/20Truck weight Kg4380Weight distributionFull load front/rearKg6490/890No load front/rearKg1670/2700TiresNumberFront/rear2/2ModelFront axle28x9-15-12prRear axle6.50-10-10prWheelbase Mm1700TreadFront/rearMm1000/970Ground clearanceAt lowest point(mast)Mm120FrameMm135BrakeService brake Hydraulic-foot pedalParking brake Mechanical-hand leverBatteryVoltage/capacityV/ah12/80EngineModel Isuzu c240Rated powerKw/rpm34.3/2500Rated torqueN.M/rpm138/1800Number of cylinders 4PlacementL2.369Fuel tank capacityL70TransmissionSpeed forward/backwardPower shift t/m
Manual shift t/m1-1 power shift t/m
2-2 manual shift t/m

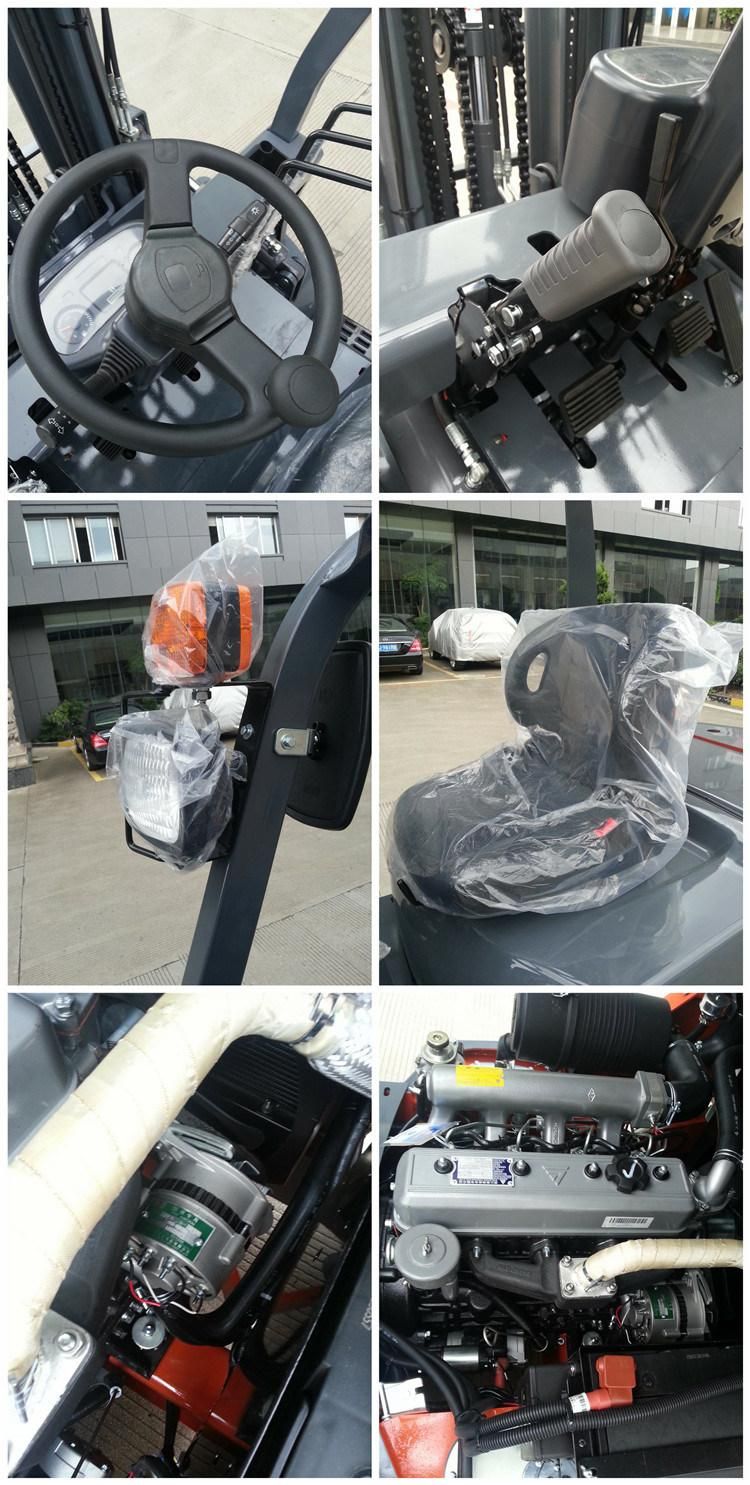

Details photo

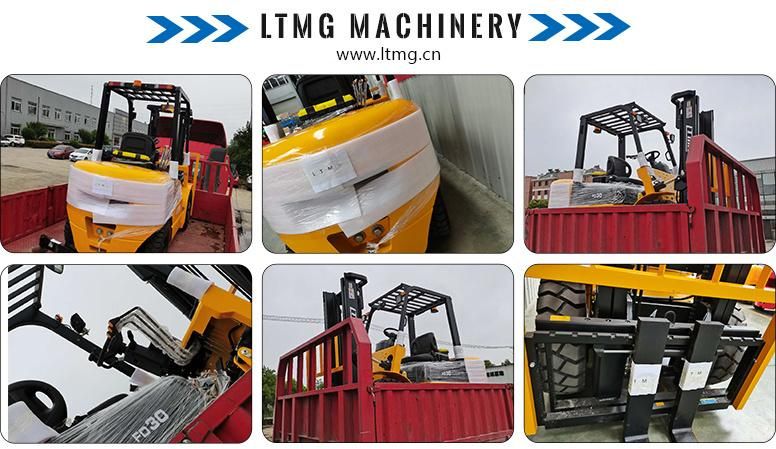

Shipping & packaging




After sales service

LTMG always treat after-sale service as important as the product quality.
LTMG grants our clients a twelve-month-period or 2000 working hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
LTMG always treat after-sale service more important than sale.
