• Model NO.：FB15
• Lift height：3000~5000mm
• Condition：New
• Fork Size：920mm*100mm*35mm
• Weight：2690kg
• Wheelbase：1250mm
• Max.Lifting Height：3000mm
• Overall Length(Without Fork)：1955mm
• Gradeability：15%
• Battery：48V-400ah
• Warranty：1 Year,2000 Working Hours
• Color：Customize
• Overhead Guard Height：2100mm
• Transport Package：Container
• Specification：1955mm*1070mm*2100mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：800sets,Year

Manufacturer     LTMGModel    FB15Load capacity  kg1500Load center  mm500Power unit  BatteryOperator type  Driver/seat Tire type  PneumaticWheel(x=driving) Front/rear   2X/2Max. lifting height mm3000Free lift  mm155Fork sizeL*W*Tmm920*100*35Tilt range Mast forward/backward deg6/12Overall length(without fork) mm1955Total width  mm1070Mast height (fork lowering)   mm1995Overall height fork raisedWith backrestmm4030Height to head guard mm2100Turning radius(outside)     mm1780Load distance mm375Min. right angle stacking aisle not add load length&clearancemm2155Speed   Max Travellingfull load km/h14Max TravellingNoload km/h16Liftingfull load mm/s350Liftingnoload  mm/s530Gradeabilityfull load  %15Truck weight(with standard battery) kg2690Weight  distribution  Fullloadfront/rearkg3635/555Noloadfront/rear  kg1110/1580Tires        Number                                                   front/rear   2/2Model                                                    frontaxle 6.00-9-10-10PRrear axle        16*6-8-10PRWheelbase   mm1250Tread   Front/rear        mm910/900Ground clearanceAt lowest point(mast)  mm105Frame      mm95BrakeServicebrake          Hydraulic-foot pedal Parking brake Mechanical-hand lever BatteryVoltage/capacity     V-AH/5hr48V-400Weight with box (standard) kg 735Electric motor AC Driving motorkw8DC Hydraulic driving motor kw8.2AC Hydraulic driving motor (as option) kw8Control type Driving AC  , lifting DC
Driving AC  , lifting AC(as option )  Operating pressure  kg/cm²145
Customer visit




Company information

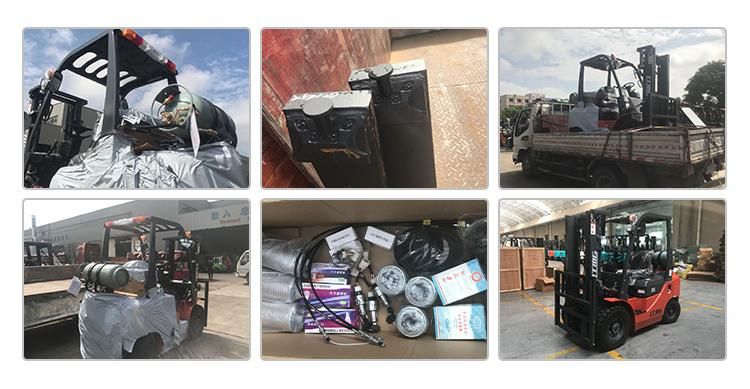

Shipping&Packing


After sales service
Nowadays more than 100 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
