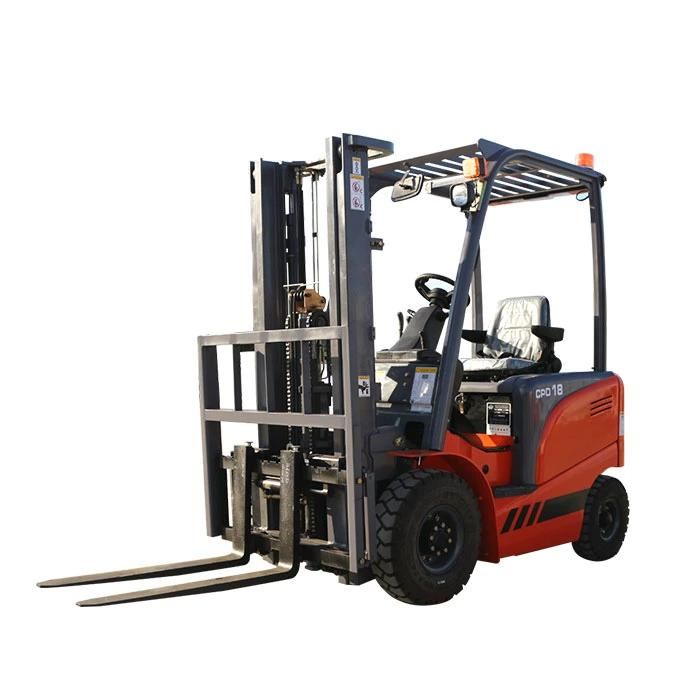

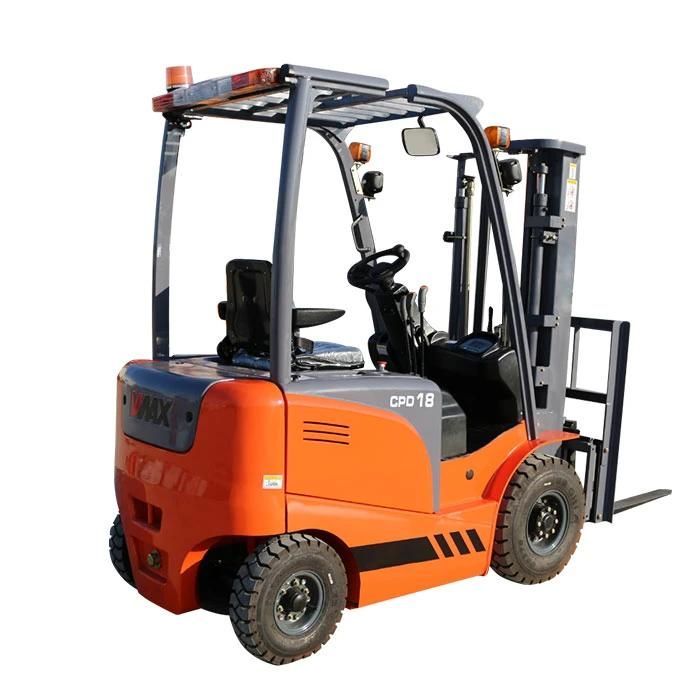

1.8ton CPD18 battery Curtis 48V forklift electric motor 1.8 ton electric forklift truck with cheap price
Wmt Cnc Industrial Co., Ltd.- Cab Location：Not Adjustable
- Type：Electric Forklift
- Power：AC Motor
- Load Capacity：1T - 5T
- Fuel：Diesel
- Load center：>500mm
Base Info
- Model NO.：CPD18
- Lift height：3000~5000mm
- Condition：New
- Specification：CE
- Origin：Anhui
- Production Capacity：100 Per Sets Monthly
Description
Main Information1.1 Brand WMTCNC 1.2 Model CPD18 1.4 Operation type Drive in seat 1.5 Load capacity kg 1800 1.6 Load center mm 500 2.1 Weight with battery 3200kg 3200 Tire,chassis 3.1 Tire Type,Driving wheel/Load wheel Size 4.1 Mast tilt,Forward/backward α/β(°) 6/12 4.2 Mast height after mast fall mm 1995 4.3 Free lift height mm 140 4.4 Standard Mast height mm 3000 4.7 Overhead guard height mm 2100 4.8 Overall length mm 2035 4.9 Vehicle width mm 1090 4.1 Fork size mm 1070*122*45 4.12 Channel width mm 3797 4.13 Turning radius mm 1997 Performance 5.1 Walking speed,loaded/withoutload km/h 13/15 5.2 lifting speed,loaded/load m/s 240/450 5.3 Dropping speed loaded/without load m/s 480/420 5.6 Maximum traction,loaded N 15000 5.8 Max grade ability,loaded/without load % 12/15 Drive 6.1 Drive motor power kw 8 6.2 Drive motor power kw 7.5 6.4 Level voltage/Capacitance V/Ah 48/450 Others 7.1 Drive System AC 7.2 Electrical control system Curtis from America
