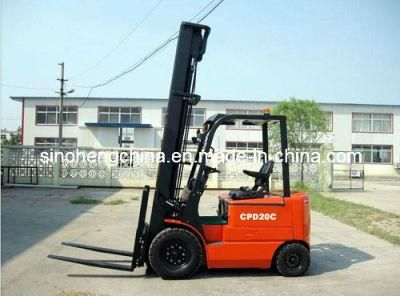

2 Ton Mini Battery Electric Forklift Truck for Sale Cpcd20c

Jinan Sinoheng Import and Export Co., Ltd.
  • Type：Powered Pallet Truck
  • Power：DC Motor
  • Load Capacity：1T - 5T
  • Fuel：Electric
  • Load center：500mm
  • Lift height：3000~5000mm

Base Info

  • Model NO.：SH20C
  • Condition：New
  • Load Capacity (T)：2t
  • Power Type：Battery
  • Lifting Height：3000mm
  • Fork Width：100mm
  • Fork Thickness：40mm
  • Load Capacity (Kg)：2000
  • Load Center (mm)：500
  • Max. Lifting Speeds ( with Load ) mm/S：250
  • Free Lift (mm)：60
  • Total Weight (Kg)：3950
  • Transport Package：Container, FCL,LCL
  • Specification：CE
  • Trademark：sinoheng
  • Origin：Shandong, China
  • Production Capacity：300PCS,Month

Description

Product Name2Ton DC battery Forklift TruckModelCPD20CLoad capacity (kg)2000Load center (mm)500Power typeBatteryMax. lifting speeds ( with load )  mm/s250Max. driving speeds ( with/without load )  km/h12,5/14Max. towing ( with/without load )  kn10Gradeability (with/without load )  %15Lifting height (mm)3000Free lift (mm)60Tilting angles ( forward-backward )  (  .)6/12Min. turning radius (mm)2200Min. right angle aisel width ( mm )2050Min. under-clearance (mm)                    110
DimensionOverall length (including fork)mm3350Overall width ( mm )1160Overall height (mast lowered )mm2130Overall height (mast extend )mm4040Overall height to overhead guard (mm)2130Fork width (mm)100Fork thickness (mm)40Fork length (mm)920(1070)Fork overhang (mm)451Wheel base (mm)1550TreadFront tread (mm)970Rear tread (mm)950TyreFront tyre7.00-12Rear tyre18 x 7 -8Total weight (kg)3950MotorTraction motorXQ-8Lifting motorXQD-10-3SBatteryBattery typeD-600(700)Battery voltage /Capacity  V/Ah48/600(700)
