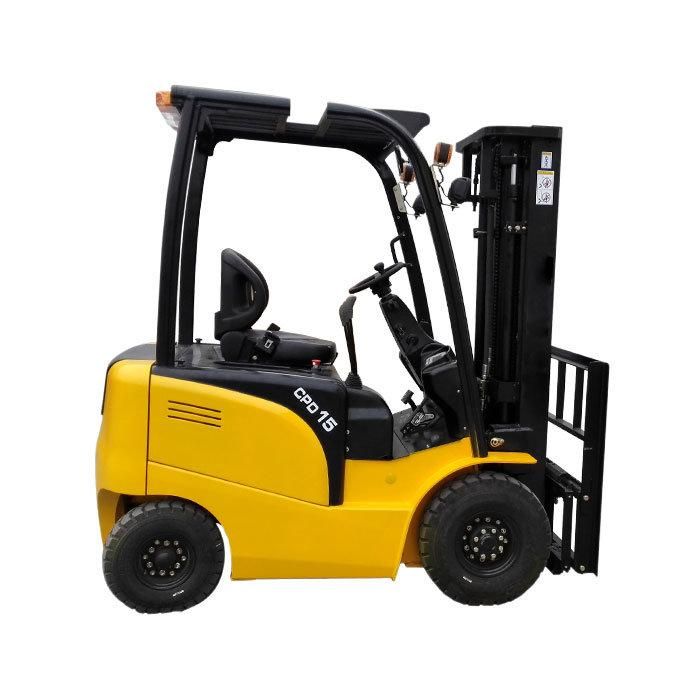

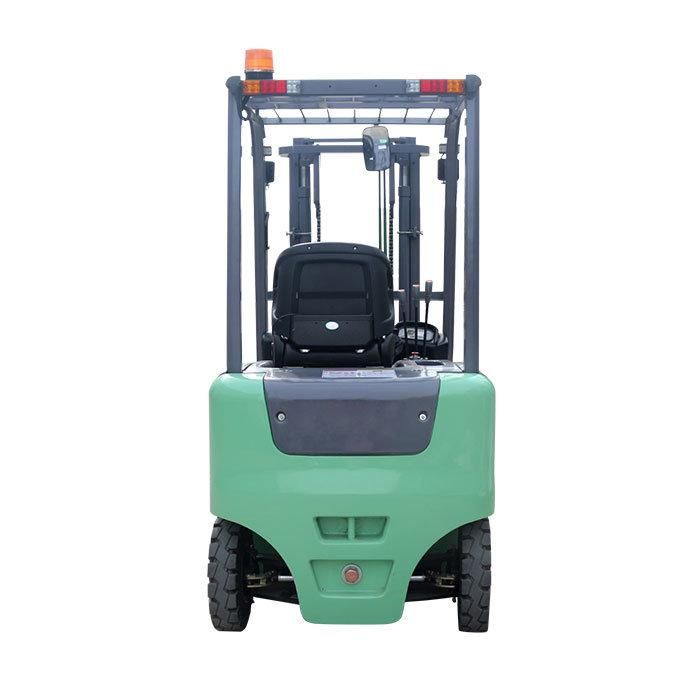

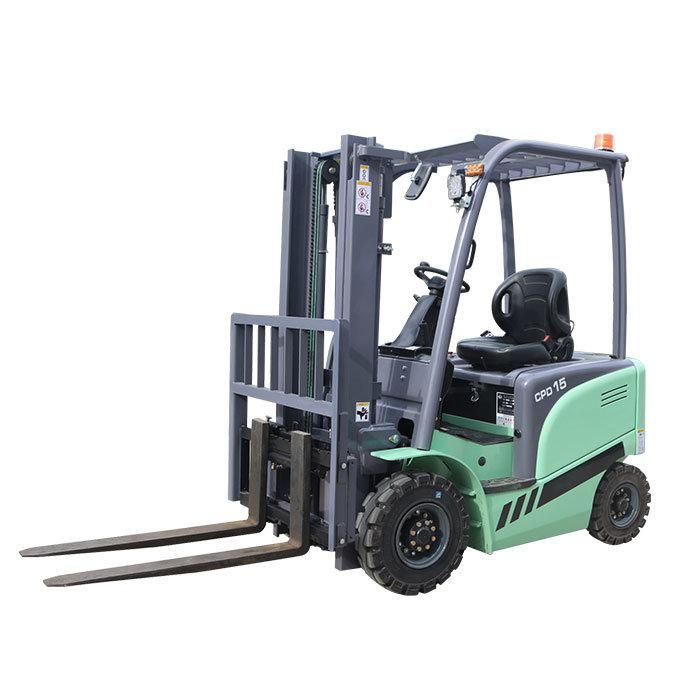

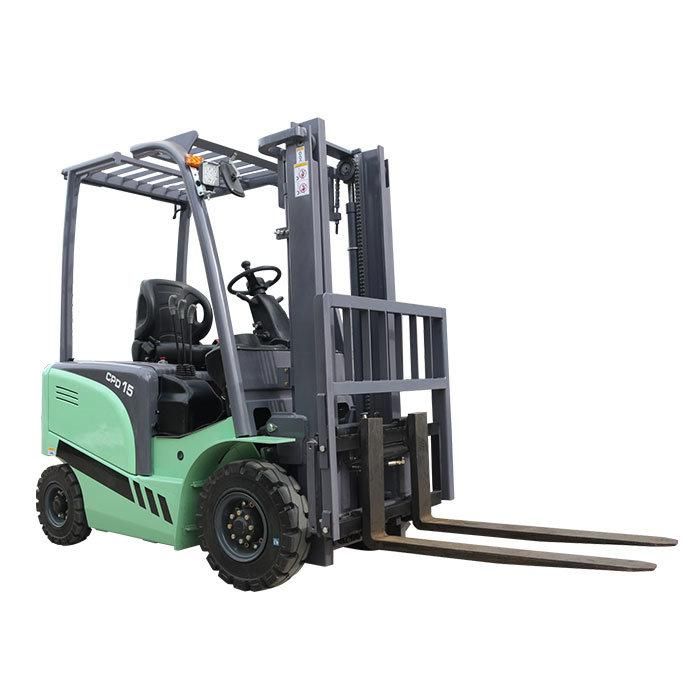

• Model NO.：CPD15
• Lift height：3000~5000mm
• Condition：New
• Specification：CE
• Origin：Anhui
• Production Capacity：100 Per Sets Monthly

Main Information1.1BrandWMTCNC1.2ModelCPD151.4Operation typeDrive in seat1.5Load capacitykg15001.6Load centermm5002.1Weight with batterykg3210Tire,chassis3.1Tire Type,Driving wheel/Load wheel  Size4.1Mast tilt,Forward/backwardα/β(°)6/124.2Mast height after mast fallmm19954.3Free lift heightmm1404.4Standard Mast heightmm30004.7Overhead guard heightmm21004.8Overall lengthmm20354.9Vehicle widthmm10904.1Fork sizemm1070*122*454.12Channel widthmm37974.13Turning radiusmm1997Performance5.1Walking speed,loaded/withoutloadkm/h13/155.2lifting speed,loaded/loadm/s240/4505.3Dropping speed loaded/without loadm/s480/4205.6Maximum traction,loadedN150005.8Max grade ability,loaded/without load%12/15Drive6.1Drive motor powerkw86.2Drive motor powerkw7.56.4Level voltage/CapacitanceV/Ah48/450Others7.1Drive SystemAC7.2Electrical control systemCurtis from America
