• Model NO.：FB50
• Lift height：3000~5000mm
• Condition：New
• Color：Customize
• Fork Size：1070mm*150mm*50mm
• Battery：80V,700ah
• Fork Carriage Tilt：6,9
• Gradeability：15
• Wheelbase：2000mm
• Max.Lifting Height：3000mm
• Overall Length(to Fork Face)：3030mm
• Overall Width：1600mm
• Tire：Pneumatic
• Transport Package：Container
• Specification：3030mm*1600mm*2330mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：1000sets,Year

Power source BatteryBatteryBatteryRated load capacitykg400045005000Load centremm500500500Lift heightmm300030003000Fork size (L×W×T)mm1070×150×501070×150×501070×150×50Fork carriage tilt(F/R)°6°/9°6°/9°6°/9°Overall Length(to fork face)mm303030303030Overall Widthmm160016001600Mast Lowered Heightmm233023302330Mast Extended Heightmm425542554255Overhead Guard Heightmm225522552255Wheelbasemm200020002000Overall length(with forks)mm410041004100Gradeability(Laden)%151515Front Tire 28×12.5-15-24PR28×12.5-15-24PR28×12.5-15-24PRRear Tire 7.0-12-14PR7.0-12-14PR7.0-12-14PRBattery(Voltage/Capacity)V/Ah80/70080/70080/700Drive motor                    Kw2x112x112x11Lifte motor                       Kw262626

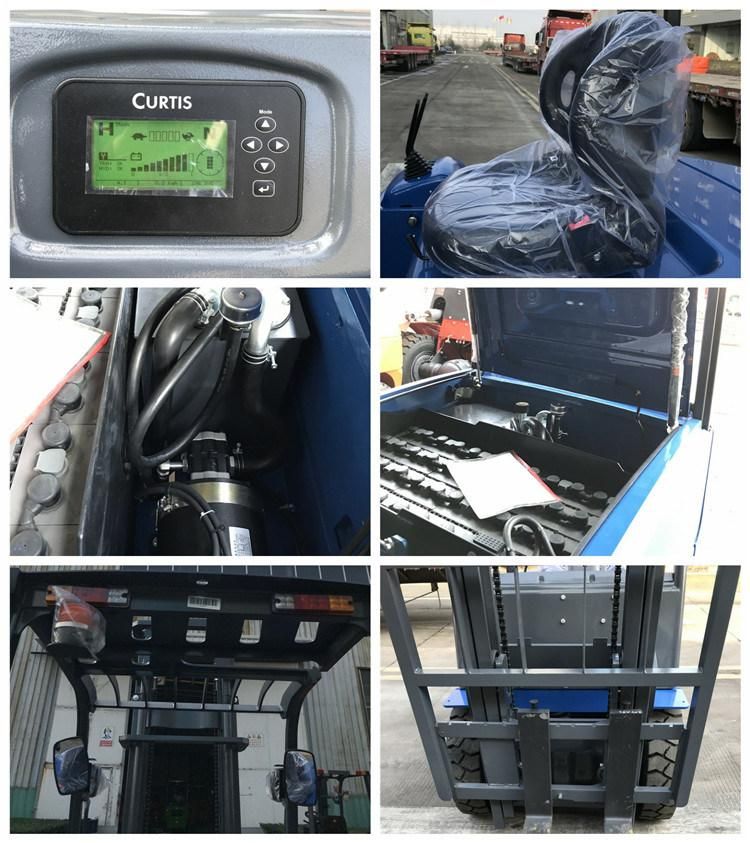

Product Detail



1.Safe:

LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:

Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:

New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:

Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.Thicker steering axle bridge deck.

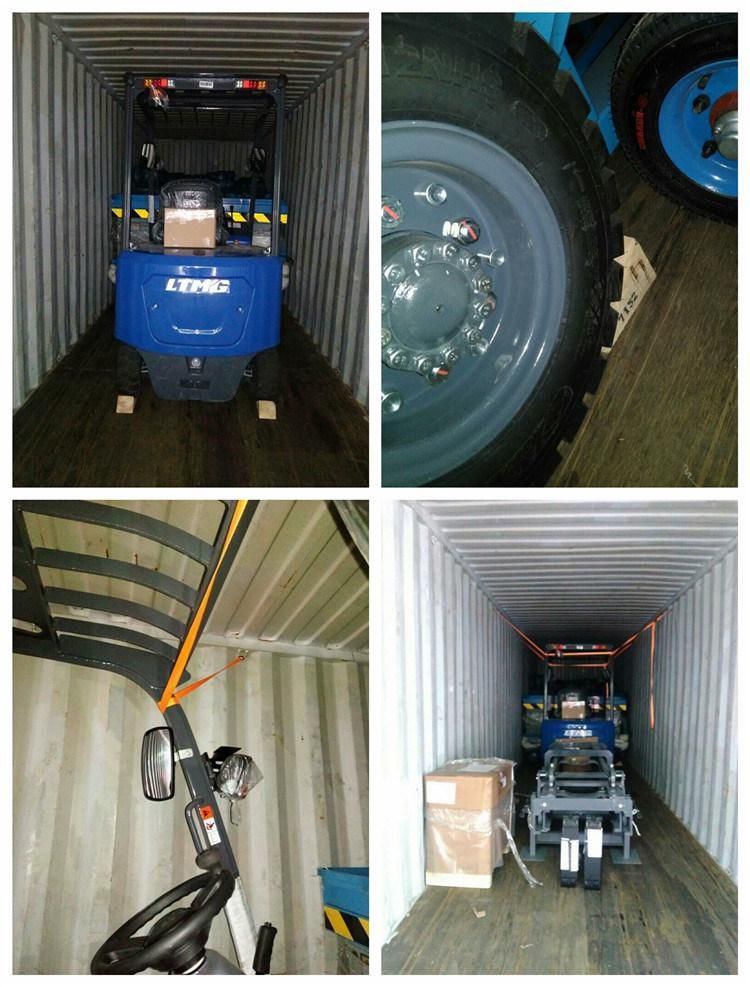

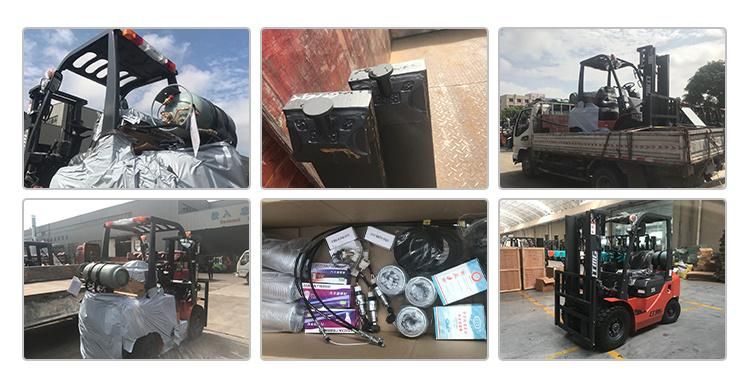

Packing&Shipping





Our Customer






About us:

Since foundation, LTMG Machinery Group(LTMG)  has always kept its professional role in Chinese Material Handling Equipment &Construction Machinery industry. At present, Forklift production base owns 120,000 square meters production base and 15000 units forklifts annual production capacity.  with product type and series: 1-40 ton Forklift Trucks(diesel, gasonline, LPG, battery),1-20 ton Rough Terrain Forklifts, Electric Pallet Trucks, Side Loader Forklift, Reach Stacker, 1-8 ton wheel loaders,10-40 ton forklift loaders,(as well as grapple loaders, side loaders.), wheel excavators and so on.






Welcome to contact us!
