• Model NO.：FDS30
• Lift height：3000~5000mm
• Condition：New
• Product Name：Hydraulic 3t Side Loader Forklift Truck with 4.8m
• Max. Traction Force：20.67kn
• Operating Weight：5300kg
• Platform Height：0.92m
• Fork Length：1150mm
• Track Base：1600mm
• Rated Load Capacity：3000mm
• Optional：Side Shift, Solid Tires
• Platform Width：1200mm
• Platform Lenghth：4555mm
• Transport Package：Container
• Specification：4450mm*2030mm*2700mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：800sets,Year

Rated load capacity (loader center≤0.6m)3000kgMax. lifting height3.6m Free lifting height0.3mMax. lifting speed (full load)≥0.3m/sDriving speedforward20km/hreverse20km/hFork dipping angle  up/down5°/3°Min. turning radius4.3mMax. traction force20.678knGradeablity22%Min. ground clearance (full load)0.17mDimensionsLength4.45mWidth (Without the back mirror)2.03mHeightfork down2.7mfork lifting4.66mWheel base2.46mTrack base1.6mPlatform height0.92mPlatform width1.15mFork length1.15mMax. base of the forks0.94mStorage battery6-QA-2-24VTires8.25-15-14PR
pressure 7.5kg/cm²Operating weight5300kgEngineModel495BPGRated power(kw/rpm)45/2650Max. Torque(n.m)≥174

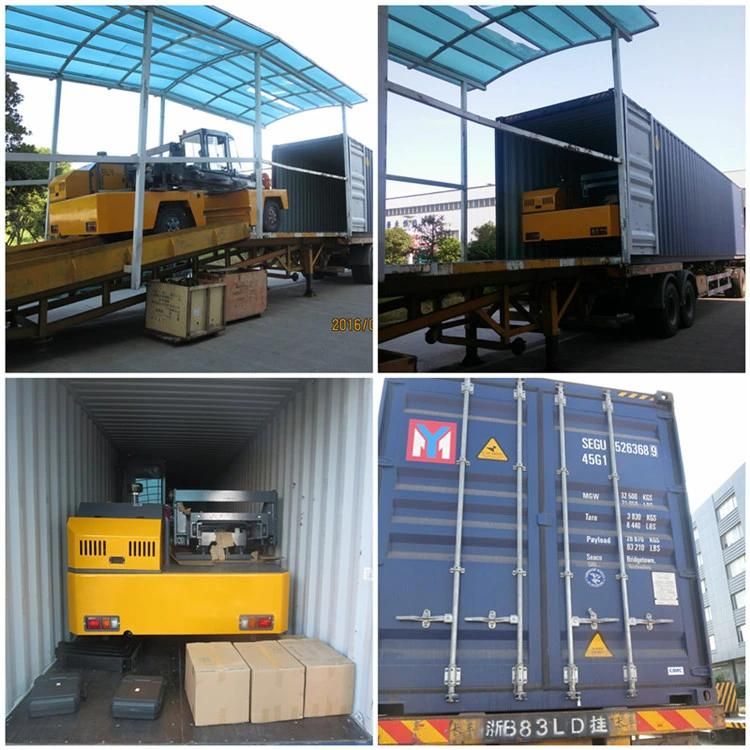

Shipping & Packaging

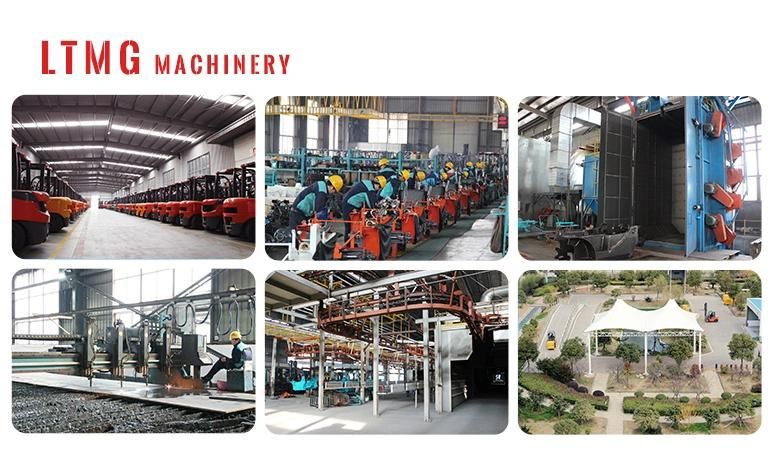

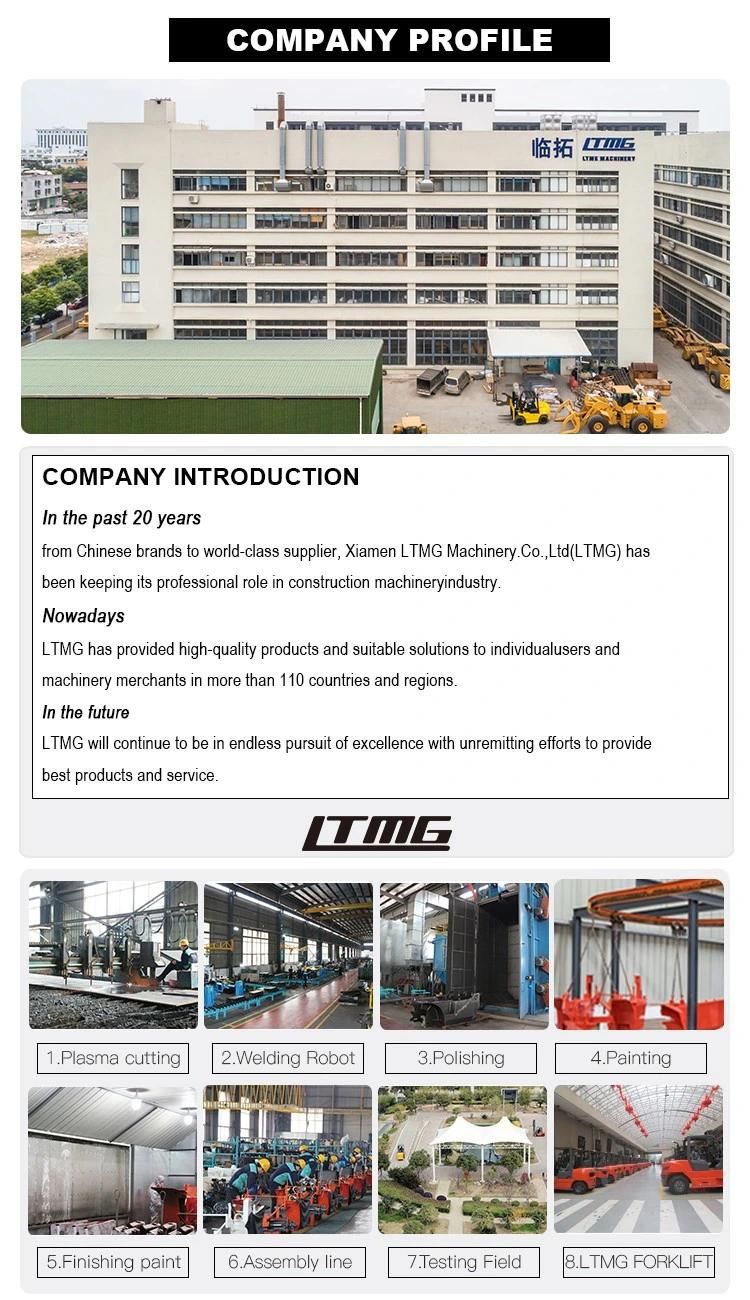

Factory Overview
