• Model NO.：FG40
• Lift height：3000~5000mm
• Condition：New
• Wheelbase：1900mm
• Fork Size：1070mm*130mm*50mm
• Rated Power：57kw,2800rpm
• Length with Fork：2895mm
• Optional：Solid Tires, Side Shift
• Weight：4810kg
• Engine：Nissan
• Ground Clearance：120mm
• Battery：12V,60ah
• Transport Package：Nude Packing, Fixed in Container
• Specification：2895mm*4140mm*2150mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：800sets,Year

ModelUnitFG40Power type Gasoline/Liquefied gas/Natural gasRated capacityKg4000Load centerMm500Operator type Drive in seatMax.Lift height of mast with Load-backrestMm4275Max.Lift  height of fork(standard)Mm3000Height of mast (standard)Mm2150Free lift height(standard)Mm150Height of Load-backrestMm1240Front wheel overheadMm2105Length with forkMm2895Front overhangMm500Rear overhangMm495Wheel baseMm1900The height of traction pinMm330Min.Ground clearanceMm130Overall widthMm1410The distance between forksMm1290/260Tread(front /rear)Mm1160/1065Min.Turning radius(outside)Mm2700Min.Turning radius(inside)Mm230Min.Intersecting aisleMm2685Mast tilt angleDeg6° / 12°Fork sizeMm1070X130X50
SpeedsMax.Drive speeds(with/without load)Km/h18/19Lifting speeds (with load)Mm/s350/380Lowering speeds(with /without full load)Mm/s350/400Max.Tractive forceKN20/18Max.Grade ability (with/without full load)%15/18Total weightKg4270Weight Distribution full load (front/ rear)Kg8380/930Weight Distribution zero load(front / rear)Kg2120/3190Quantity of wheels 2X / 2Type of tyres Penumatic tiresTiresFront 250-15-16PRRear 6.00-10-10PRDriving Brake Hydraumatic pedalParking Brake Mechanical manualBatteryV/AH12/80Engine (standard)Model GQ-4YRated outputKw/rpm57/2800Rated torqueN.M/rpm198/1800No.Of cylinder 4-91X86DisplacementL2.237Fuel tank capacityL60Number of speeds for transmission 1-1 Power shift transmission
/ 2-2 Hand shift transmission

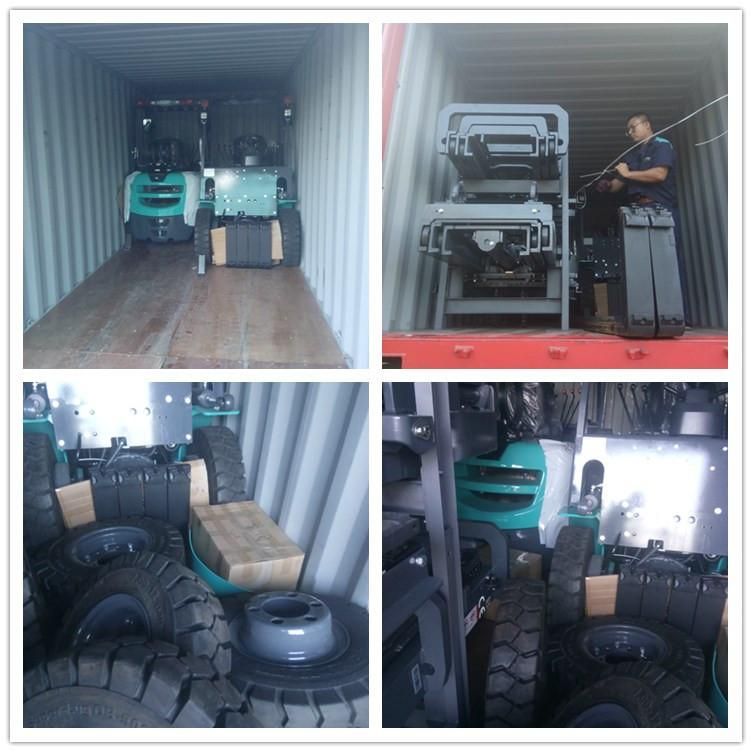

Shipping&Packing


After sales service

LTMG always treat after-sale service as important as the product quality.
LTMG grants our clients a twelve-month-period or 2000 working hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
