• Model NO.：FB40
• Lift height：3000~5000mm
• Condition：New
• Fork Size：1070mm*150mm*50mm
• Wheel Base：2000mm
• Certificate：EPA ISO Ce
• Overall Length(to Fork Face)：3030mm
• Rated Load Capacity：4 Ton
• Gradeability：15
• Lifting Height：3m
• Battery Capacity：80V,700ah
• Tires：Pneumatic
• Overall Width：1600 mm
• Transport Package：Nude Packing, Fixed in Container
• Specification：3030mm*1600mm*2330mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：800sets,Year

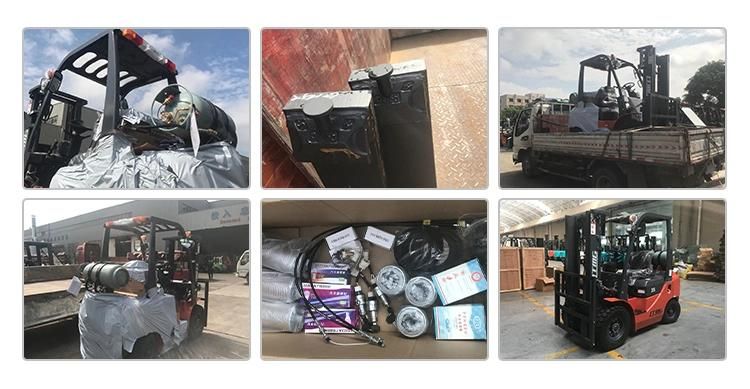

Power source BatteryRated load capacityKg4000Load centreMm500Lift heightMm3000Fork size (L×W×T)Mm1070×150×50Fork carriage tilt(F/R)°6°/9°Overall Length(to fork face)Mm3030Overall WidthMm1600Mast Lowered HeightMm2330Mast Extended HeightMm4255Overhead Guard HeightMm2255WheelbaseMm2000Overall length(with forks)Mm4100Gradeability(Laden)%15Front Tire 28×12.5-15-24PRRear Tire 7.0-12-14PRBattery(Voltage/Capacity)V/Ah80/700Drive motorKw2x11Lifte motorKw26Packing&Shipping



Product Features

1.Equipped with original imported American Curtis electric control system;High voltage and large capacity battery can supply the forklift with strong power;DC or AC motors are optional according to customers' requirements.

2.This electric forklift truck not only has excellent operability, comfortable and safe, and reliable performance with waterproof.In addition, it can also significantly more comfortable and more versatility.

3.Economical, environmentally friendly.It won't be emissions, and does not produce noise.In the running process does not produce carbon monoxide, carbon dioxide, nitrogen oxide or other causes of global warming and air pollution harmful gases.

4.Redesigned hydraulic control levers positioned next to seat to make operators feel comfortable.

5.This electric forklift truck not only has excellent operability, comfortable and safe, and reliable performance with waterproof.In addition, it can also significantly more comfortable and more versatility.

6.The forklift mast vibration generated at the junction is also reduced, thereby eliminating operator attached to the cargo scattered for fear, shock or damage arising mental tension.

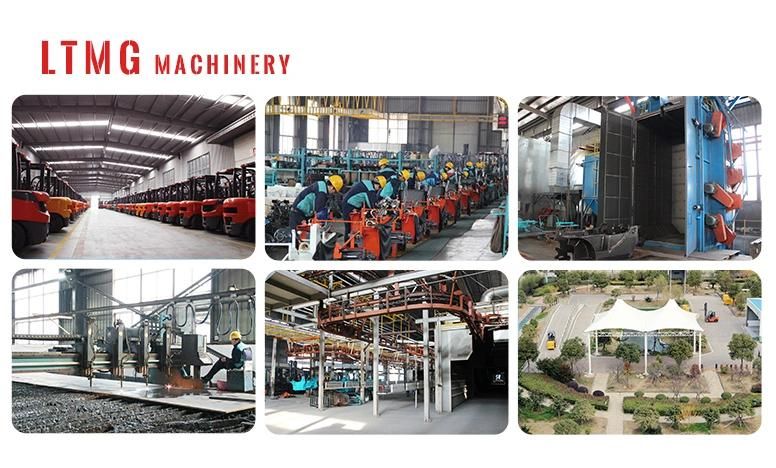

Factory Overview

Our Customer


After sales service
Nowadays we have been sell more than 100 countries.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product's quality certificate.

FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.

2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.Details to see the LTMG warranty policy for each model.

4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5.What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
