• Model NO.：GL-350
• Load center：>500mm
• Lift height：1.5m, 2.5m, 3.5m
• Condition：New
• Max. Lifting Height：3500mm
• Lifting Capacity：150kg to 800kg
• Surface Treatment：Shot Blasting
• Drive Motor：24V 500kw 700kw 900kw
• Hydraulic Motor：24V 2000W
• Battery：2PCS of 12V 70ah 100ah 160ah
• Max. Plate Size：2440X1830mm,3660X2440mm
• Charger：24V 10A 15A 20A
• Transport Package：High Quality Paper Boxes with Stretch Film.
• Trademark：SAGA FIRST
• Origin：Shandong, China (Mainland)
• HS Code：8428909090
• Production Capacity：1000 Set,Sets Per Month

Basic Info.

Model NO. GL-350 Load center >500mm Lift height 1.5m, 2.5m, 3.5m Condition New Max. Lifting Height 3500mm Lifting Capacity 150kg to 800kg Surface Treatment Shot Blasting Drive Motor 24V 500kw 700kw 900kw Hydraulic Motor 24V 2000W Battery 2PCS of 12V 70ah 100ah 160ah Max. Plate Size 2440X1830mm/3660X2440mm Charger 24V 10A 15A 20A Transport Package High Quality Paper Boxes with Stretch Film. Trademark SAGA FIRST Origin Shandong, China (Mainland) HS Code 8428909090 Production Capacity 1000 Set/Sets Per Month

Product Description

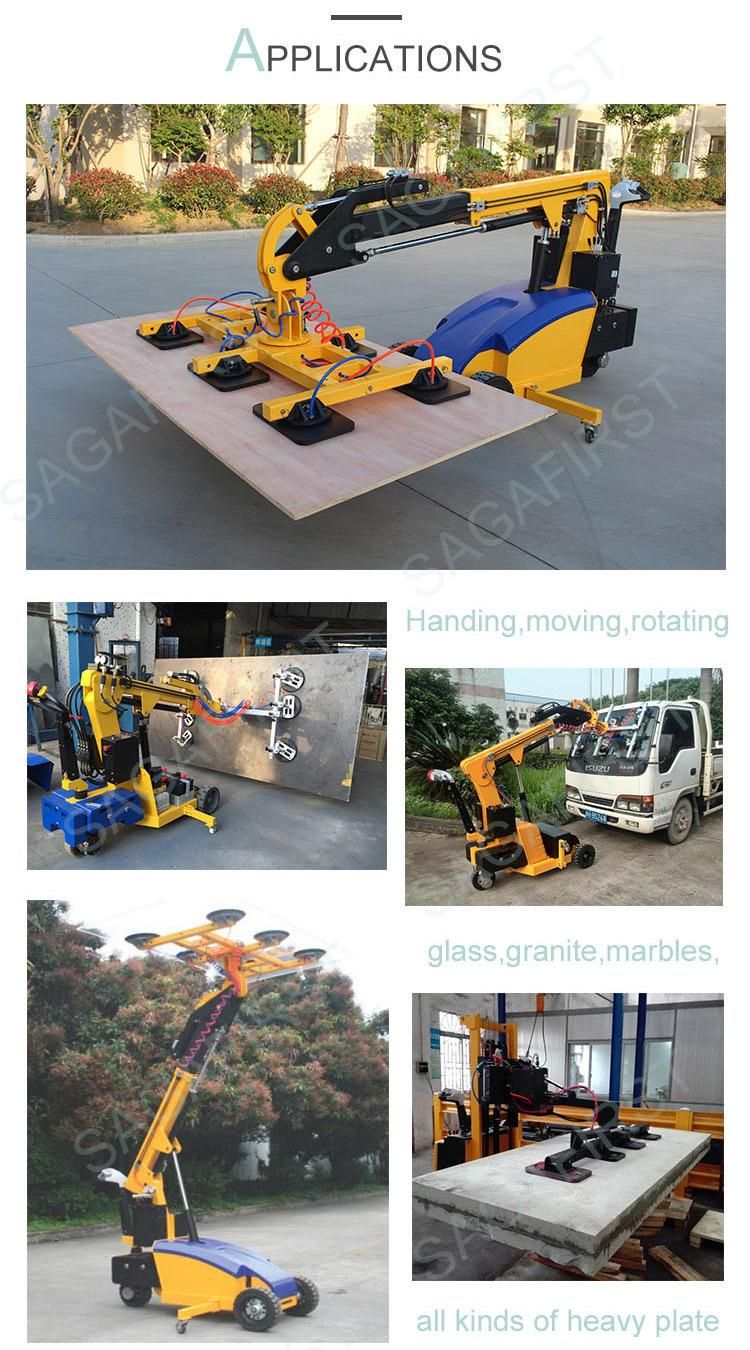

Sagafirst Vacuum lifter series are specially design for handling different kinds of heavy plate, board and glass, useful for installing steel board, glass wall, moving such as granite, marble. Easily handle lifting, moving and rotating with vacuum suction caps and powerful drive system.

Features & Advantages:

- Integrated control system secures quick and automatic positioning vertically and horizontally by a single push on a button.

- DC24V reliable actuators for lifting, extension and tipping. efficient and precise. Self propelling, various circuit vacuum suction.

- Attractive price, staff saving, strong improvement of working environment.

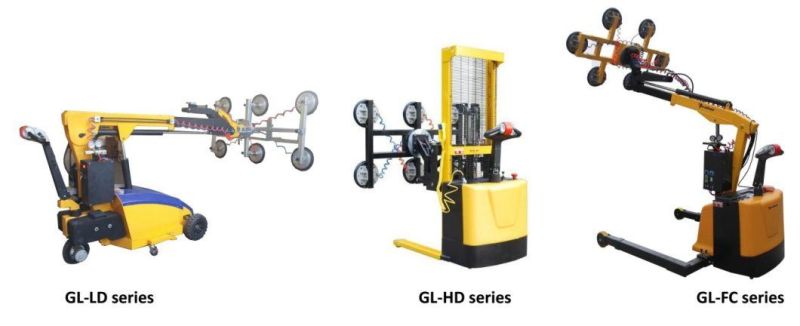

- There are 3 models available, GL-LD, GL-HD and GL-FC-6035 suits for different working environments.

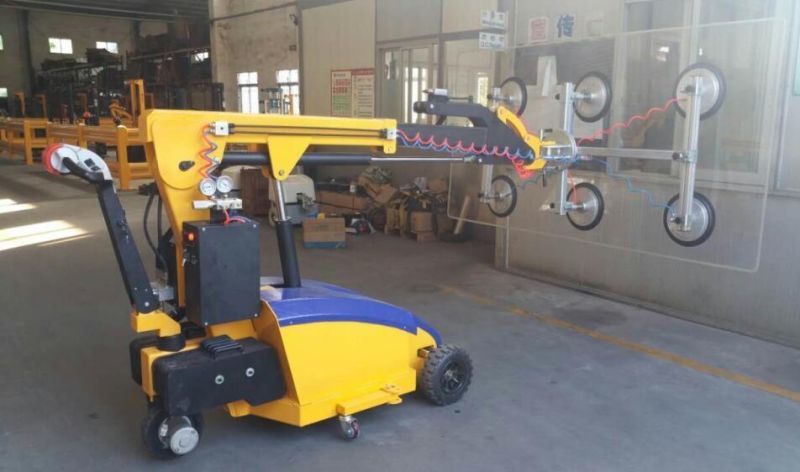

GL-LD light duty vacuum lifter, small size, easy to transport.




Description:
Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with vacuum suction caps.
Specifications:

Model Type	GL-LD-350	GL-LD-600
Loading Capacity	350kg (retract)/175kg(extend)	600kg (retract)/300kg(extend)
Lifting Height	3500mm	3500mm
Battery	2x12V/100AH	2x12V/120A
Controller	VST224-15	CP2207A-5102
Drive motor	24V/600W	24V/900W
Hydraulic power	24V/2000W/5L	24V/2000W/5L
Cap Diameter	Ø250mm/300mm	Ø250mm/300mm

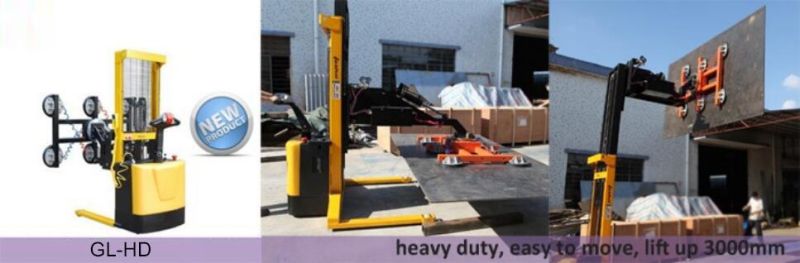

GL-HD heavy duty vacuum lifter, easy to move around,



Description:
Self-propelled drive, Higher lift cap. is available upon request. Electric side shift 100mm both right & left. Electric tilting forwards & backwards from vertical to horizontal or reverse. Suction plate is manual rotating.

Specifications:
GL-HD-40 series:

Model	GL-HD-4015(4x30)	GL-HD-4015(6x25)	GL-HD-4015(6x30)	GL-HD-4015(8x25)
Max. Load Capacity	400kgs	400kgs	400kgs	400kgs
Safe Load Capacity	200kgs	200kgs	200kgs	200kgs
Lifting Height	1500mm	1500mm	1500mm	1500mm
QTY of Caps (customized)	4pcs	6pcs	6pcs	8pcs
Cap Diameter	Ø300mm	Ø250mm	Ø300mm	Ø250mm
Plate Size (customized)	1220x1830mm	1220x1830mm	1220x1830mm	1220x1830mm
Drive Motor	24V/500W	24V/500W	24V/500W	24V/500W
Hydraulic Motor	24V/2000W	24V/2000W	24V/2000W	24V/2000W
Battery	2x12V/70Ah	2x12V/70Ah	2x12V/70Ah	2x12V/70Ah
Charger	24V/10A	24V/10A	24V/10A	24V/10A

GL-HD-60 series:

Model	GL-HD-6015(4x30)	GL-HD-6015(6x25)	GL-HD-6015(6x30)	GL-HD-6015(8x30)
Max. Load Capacity	600kgs	600kgs	600kgs	600kgs
Safe Load Capacity	300kgs	300kgs	300kgs	300kgs
Lifting Height	1500mm	1500mm	1500mm	1500mm
QTY of Caps (customized)	4pcs	6pcs	6pcs	8pcs
Cap Diameter	Ø300mm	Ø250mm	Ø300mm	Ø300mm
Plate Size (customized)	2440x1830mm	2440x1830mm	2440x1830mm	2440x1830mm
Drive Motor	24V/700W	24V/700W	24V/700W	24V/700W
Hydraulic Motor	24V/2000W	24V/2000W	24V/2000W	24V/2000W
Battery	2x12V/100Ah	2x12V/100Ah	2x12V/100Ah	2x12V/100Ah
Charger	24V/15A	24V/15A	24V/15A	24V/15A

GL-HD-80 series:

Model	GL-HD-8015(6)	GL-HD-8015(8)	GL-HD-8015(10)	GL-HD-8025(8)	GL-HD-8025(10)
Max. Load Capacity	800kgs	800kgs	800kgs	800kgs	800kgs
Safe Load Capacity	400kgs	400kgs	400kgs	400kgs	400kgs
Lifting Height	1500mm	1500mm	1500mm	2500mm	2500mm
QTY of Caps (customized)	6pcs	8pcs	10pcs	8pcs	10pcs
Cap Diameter	Ø300mm	Ø300mm	Ø300mm	Ø300mm	Ø300mm
Plate Size (customized)	3660x2440mm	3660x2440mm	3660x2440mm	3660x2440mm	3660x2440mm
Drive Motor	24V/900W	24V/900W	24V/900W	24V/900W	24V/900W
Hydraulic Motor	24V/2000W	24V/2000W	24V/2000W	24V/2000W	24V/2000W
Battery	2x12V/160Ah	2x12V/160Ah	2x12V/160Ah	2x12V/160Ah	2x12V/160Ah
Charger	24V/20A	24V/20A	24V/20A	24V/20A	24V/20A

GL-FC-6035 floor crane style vacuum lifter, various options.



Description:
GL-FC-6035 is designed and modified based on Sagafirst FC Series Full Power Floor Crane. And it is combined with vacuum lifter for carrying glass, steel plate and some other materials.
Specifications:

Model	GL-FC-6035
Max. Capacity	600kgs
Lift Height	3500mm
Qty of Cap	6pcs
Cap Diameter	Ø300mm
Max. Plate size	2440 x 1830mm
Handle	CH-2
Battery	2x12V/100A
Charger	24V/15A
Drive Motor	24V/700W
Lift motor	24V/2000W
Travel speed W/O load	4.5km/h
Travel speed W/Load	3.5km/h
Grade ability	5% / 10%



Certificate:ISO and CE


Our Service:

1.We can design the customerized disable wheelchair lift as per your requirement.

2.The most suitable model will be recommended to you once we know about your requirement.

3.Shipment can be arranged from our port to your destination port.

4.Opetion video can be sent to you if needed.

5.Maintenance video will be given once the disable wheelchair lift break down to help you repair.

6.Parts of disable wheelchair lift can be sent to you by express within 7 days if needed.
