• Model NO.：EPT20-18WA
• Fuel：Electric
• Load center：600mm
• Lift height：120mm
• Condition：New
• Turning Radius：1560mm
• Lowered Height：85mm
• Fork Length：1150mm
• Fork Width：150mm
• Service Weight：445kg
• Tyre Type：PU,PU
• Travel Speed：5.5,6 Km,H
• Lifting Speed：0.051,0.06 M,S
• Battery Voltage：24V,110ah
• Certification：Ce
• Transport Package：Standard Export Packing
• Specification：1735mm*710mm*715mm
• Trademark：EP
• Origin：Zhejiang
• HS Code：8427109000
• Production Capacity：50000,Year

Basic Info.

Model NO. EPT20-18WA Fuel Electric Load center 600mm Lift height 120mm Condition New Turning Radius 1560mm Lowered Height 85mm Fork Length 1150mm Fork Width 150mm Service Weight 445kg Tyre Type PU/PU Travel Speed 5.5/6 Km/H Lifting Speed 0.051/0.06 M/S Battery Voltage 24V/110ah Certification Ce Transport Package Standard Export Packing Specification 1735mm*710mm*715mm Trademark EP Origin Zhejiang HS Code 8427109000 Production Capacity 50000/Year

Product Description

Specification:

Distinguishing mark
1.1	Manufacturer			EP	EP	EP
1.2	Model designation			EPT20-18WA	EPT20-20WA	EPT25-WA
1.3	Drive unit			Electrics	Electrics	Electrics
1.4	Operator type			pedestrian	pedestrian	pedestrian
1.5	rated capacity	Q	kg	1800	2000	2500
1.6	Load center distance	c	mm	600	600	600
1.7	Load distance	x	mm	940	916/982      937/1003	916/982      937/1003
1.9	Wheelbase	y	mm	1368	1418            1488	1418            1488
Weight
2.1	Service weight (include battery)		kg	445	508	565
2.2	Axle loading, laden driving side/loading side		kg	745  / 1500	938  /  1570	1070  / 1995
2.3	Axle loading, unladen  driving side/loading side		kg	345  / 100	413  / 95	445 / 120
Types,Chassis
3.1	Tyre type driving wheels/loading wheels			polyurethane/ polyurethane	polyurethane/ polyurethane	polyurethane/ polyurethane
3.2	Tyre size, driving wheels(diameter×width)		mm	Ф230x75	Ф230x75	Ф230x75
3.3	Tyre size, loading wheels(diameter×width)		mm	Ф80x60	Ф85x70   /   Ф83x115	Ф85x70   /   Ф83x115
3.4	Tyre size, caster wheels(diameter×width)		mm	Ф85x48	Ф85x48	Ф85x48
3.5	Wheels, number driving,caster/loading (x=drive wheels)		mm	1 x  + 2 / 4	1 x  + 2 / 4   /   1 x  + 2 / 2	1 x  + 2 / 4   /   1 x  + 2 / 2
3.6	Track width, front,driving side	b10	mm	498	498	498
3.7	Track width,rear,loading side	b11	mm	390 / 450 /  535	370 / 430 /  515	370 / 430 /  515

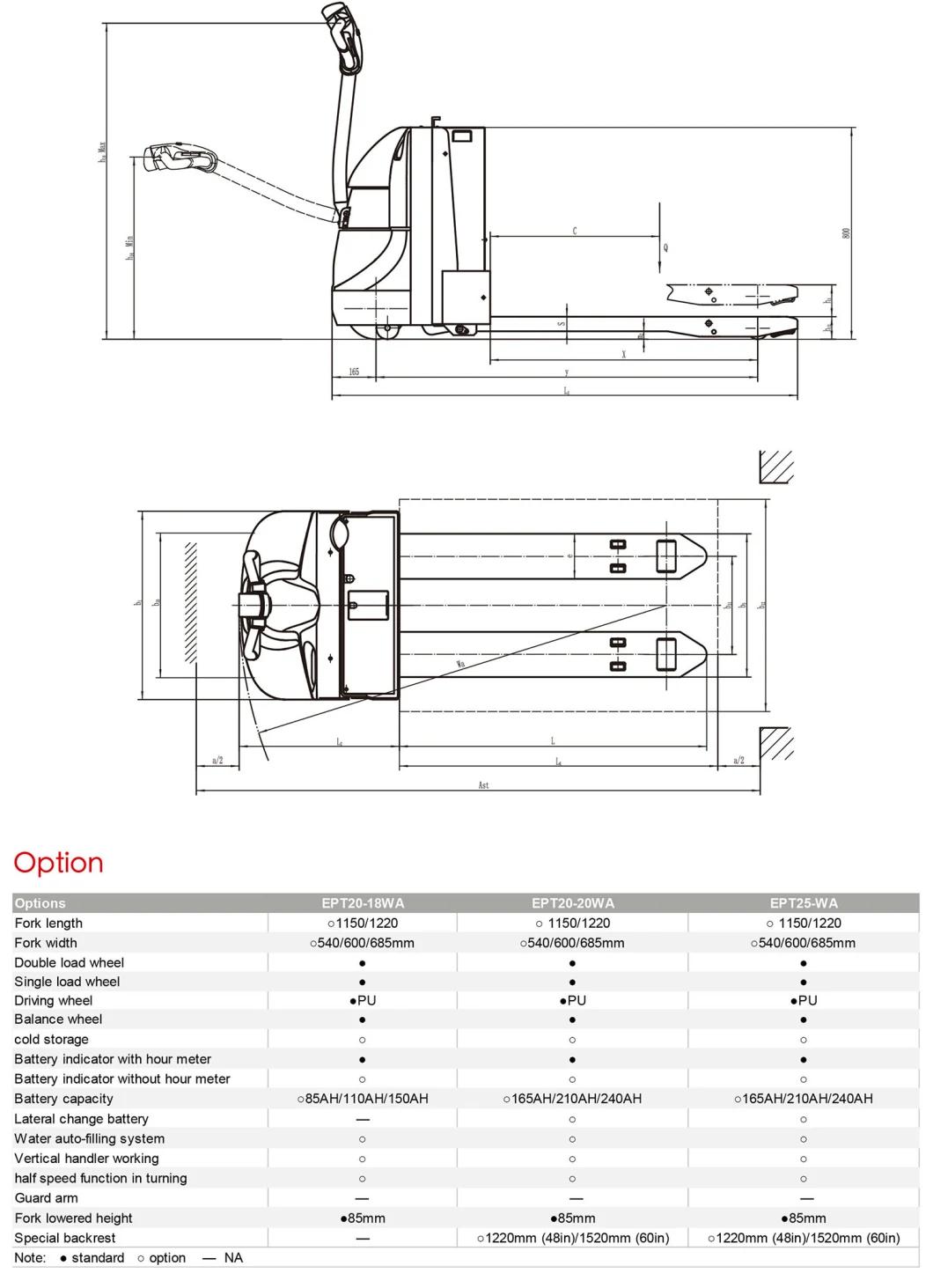

Dimensions
4.4	Lift height	h3	mm	120	120	120
4.9	Height drawbar in driving position min./max.	h14	mm	715  / 1200	715  / 1200	715  / 1200
4.15	Lowered height	h13	mm	85	85	85
4.19	Overall length	l1	mm	1735	1748          1818	1748          1818
4.20	Length to face of forks	l2	mm	585	598	598
4.21	Overall width	b1/ b2	mm	710	710	710
4.22	Fork dimensions	s/ e/ l	mm	50 x 150 x 1150	55 x 170 x 1150    55x170x1220	55 x 170 x 1150    55x170x1220
4.25	Distance between fork-arms	b5	mm	540  /  600  /  685	540  /  600  /  685	540  /  600  /  685
4.32	Ground clearance, center of wheelbase	m2	mm	35	30	30
4.34.1	Aisle width for pallets 1000 × 1200 crossways	Ast	mm	1820	1815	1815
4.34.2	Aisle width for pallets 800 × 1200 lengthways	Ast	mm	2020	2015	2015
4.35	Turning radius	Wa	mm	1560	1595	1595
Performance data
5.1	Travel speed, laden/ unladen	km/ h	km/h	5.5  /  6.0	5 /  5.5	5 /  5.5
5.2	Lifting speed, laden/ unladen		m/ s	0.051  /  0.060	0.026  /  0.031	0.026  /  0.031
5.3	Lowering speed, laden/ unladen		m/ s	0.032  /  0.039	0.032  /  0.039	0.032  /  0.039
5.8	Max. gradeability, laden/unladen			6  / 16	8  / 16	6  / 16
5.10	Service brake type			Electromagnetic	Electromagnetic	Electromagnetic
Electric-engine
6.1	Drive motor rating S2 60 min		kW	1.1	1.1	1.1
6.2	Lift motor rating at S3 15%		kW	0.84	0.84	0.84
6.3	The maximum allowed size battery		mm	670 x 180 x 570	680 x 205 x OPEN	690 x 205 x 600
6.4	Battery voltage/nominal capacity K5			24  / 110	24 / 224	24  / 240
6.5	Battery weight		kg	120	163	220
Addition data
8.1	Type of drive control			AC	AC	AC
10.5	Steering type			Mechanical	Mechanical	Mechanical
10.7	Sound pressure level at the driver's ear		dB(A)	74	74	74
