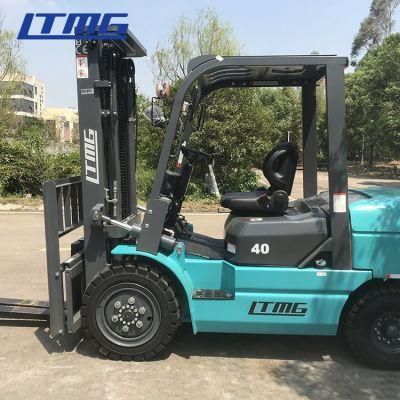

Ltmg Diesel Counterbalance Forklift Truck 3 Ton 5 Ton 10 Ton Tier 3 Forklift for Sale

Xiamen LTMG Machinery Co., Ltd.
  • Warranty：1 Year,2000 Working Hours
  • Cab Location：Not Adjustable
  • Type：Diesel Forklift
  • Power：Diesel Engine
  • Load Capacity：1T - 5T
  • Fuel：Diesel

Base Info

  • Model NO.：FD30
  • Load center：500mm
  • Lift height：3000mm
  • Condition：New
  • Engine：Isuzu C240
  • Fork Size：1070mm*125mm*45mm
  • Weight：4300kg
  • Wheelbase：1700mm
  • Load Centrer：500mm
  • Ground Clearence：120mm
  • Color：Decided by Buyer
  • Fuel Tank：70L
  • Optional：Side Shift Mast Height, Mast Stage, etc
  • Transport Package：Container
  • Specification：2660mm*1225mm*2115mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：8427209000
  • Production Capacity：1000set,Years

Description

Speed  Max Travelling          full/no loadkm/h18/19.5Lifting                         full/no load    mm/s450/500Lowering                    full/no load   mm/s450/450Max.drawbar pull                   full/no load  kg1550/1000Gradeability at 1.6km/h         full load %25Truck weight               kg4290Weight  distribution            Full  load front/rear     kg6420/870No  load  front/rear   kg1680/2610Tires                                       Number front/rear2/2Model front axle28x9-15-12PRrear axle 6.50-10-10PRWheelbase                               mm1700Tread                                               Front/rearmm1000/970Ground clearence           At lowest point(mast)            mm120Frame mm135Brake                                            Service  brake Hydraulic-foot peda                                         Parking brake  Mechanical-hand lever                              Battery                                          Voltage/capacityV/AH12/80Engine                                          Model  ISUZU C240Rated power kw/rpm52/2500Rated torque N-m/rpm15.7/1800Number of cylinders  4Fuel tank capacity L70Transmission                              shift stage(front/rear-type) 1-1 power shift T/M                                 Operating pressure                    Hydraulic system pressure     kg/cm²180
 Product Features

Standard Configuration of 3 ton forklift

1.Chinese Engine
2. Hydraulic / Automatic Transmission
3. Duplex Mast Lifting Height 3000mm
4. Pneumatic Tires
5. 1070mm Fork Length

Optional Equipments

1.Janpan engine ISUZU or Mitsubishi
2.Lifting Height 3m-7m
3.Full-free Duplex or Triplex Mast
4.Side Shift, Solid Tires, Suspension Seat, fork positiner .
5.Driver's Cabin, Customized Color, air-conditioner, etc.
6.Attachments :paper roll clamp,bale clamp ,rotating clamp ect.

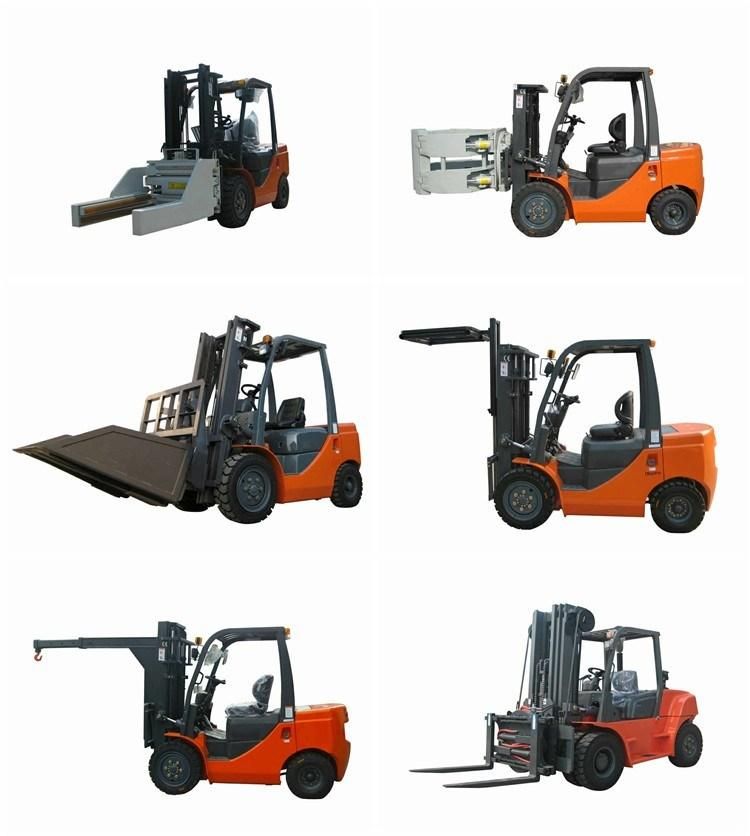

Optional attachment
Ltmg Diesel Counterbalance Forklift Truck 3 Ton 5 Ton 10 Ton Tier 3 Forklift for Sale

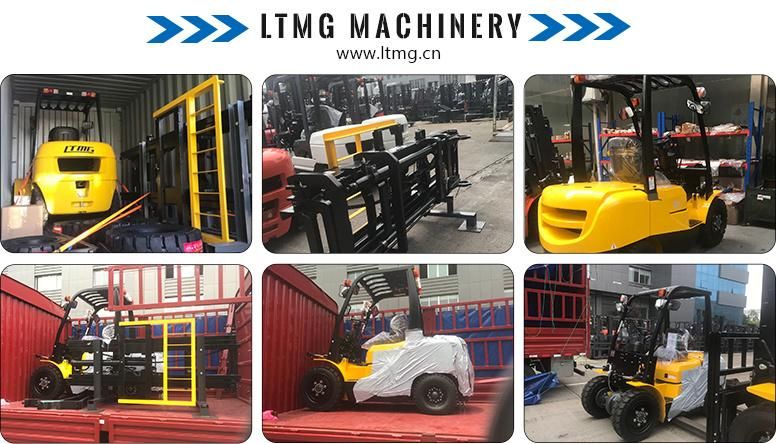

Packiging&shipping

Ltmg Diesel Counterbalance Forklift Truck 3 Ton 5 Ton 10 Ton Tier 3 Forklift for Sale



After sales service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.


Our company
Ltmg Diesel Counterbalance Forklift Truck 3 Ton 5 Ton 10 Ton Tier 3 Forklift for Sale


Our customer
Ltmg Diesel Counterbalance Forklift Truck 3 Ton 5 Ton 10 Ton Tier 3 Forklift for Sale

FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
