• Model NO.：FD60
• Condition：New
• Fork Size：1220mm*150mm*60mm
• Weight：8750kg
• Engine：Isuzu
• Rated Power ：82.3kw,2000rpm
• Wheelbase：2250mm
• Color：Decided by Buyer
• Max.Lifting Height：3000mm
• Truck Weight    ：8050kg
• Ground Clearence：190mm
• Free Lift ：205mm
• Transport Package：Container
• Specification：3530mm*1995mm*2450mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：800sets,Year

Features    1Manufacturer                           LTMG2Model                              FD603Load capacity                         kg60004Load center                            mm6005Power unit                                Diesel   6Operator type                          Driver/seat 7Tire type                           Front/rear Pnenumatic  8Wheel                                    Front/rear 4/2Dimension  9Max. lifting height                    mm300010Free lift                              mm20511Fork size                            L*W*Tmm1220*150*6012Tilt range                                Mast forward/backward          deg6/1213Overall length(without fork)     mm355014Total width                              mm199515Mast height (fork lowering)   mm250016Overall height fork raised    With backrest                           mm442017Height to head guard               mm245018Turning raduis(outside)           mm325019Front face of fork to front axle mm61520Min. right angle stacking aislepallet size :1100×1100 add clearence                     mm5500Performance   21Speed  Max Travelling          full/no loadkm/h26/3022Lifting                         full/no load    mm/s500/55023Lowering                    full/no load   mm/s450/50024Max.drawbar pull                   full/no load  kg5500/225025Gradeability at 1.6km/h         full load %3726Max. Gradeability  full/no load  %38/19Weight            27Truck weight               kg805028Weight  distribution            Full  load               front/rear     kg11710/134029No  load                 front/rear   kg4020/4030Frame           30Tires                                       Number front/rear4/231Model front axle8.25x15-14PR32rear axle 8.25x15-14PR33Wheelbase                               mm225034Tread                                               Front/rearmm1470/1700 Ground clearence           At lowest point(mast)            mm19035Frame mm230 Brake                                            Service  brake power brake36Parking brake  Mechanical-hand lever  Engine       37Battery                                          Voltage/capacityV/AH2x12V-80AH38Engine                                          Model  ISUZU 6BG1Rated power PS112/2000Rated torque kg-m 42.5/1500Number of cylinders  6Placement L6.49439Fuel tank capacity L14040Transmission                              shift stage(front/rear-type) 2-2 power shift T/M     41Operating pressure                    Hydraulic system pressure     kg/cm²200
Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

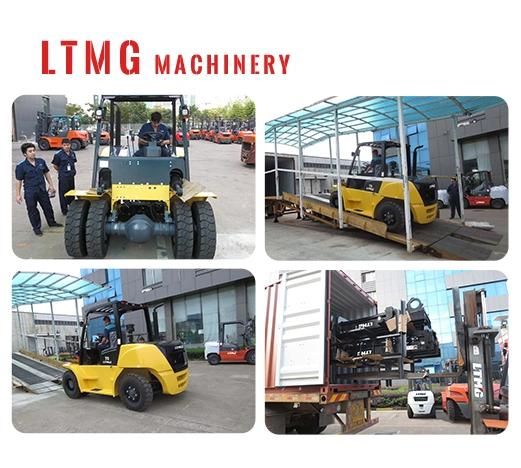

Packing&Shipping

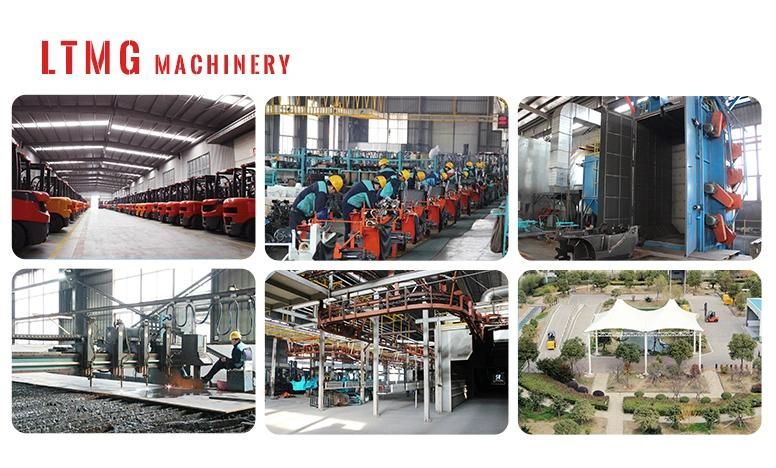

Factory Overview


Our Customer





After sales service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.



FAQ

1.What the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.
Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.

2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
Details to see the LTMG warranty policy for each model.

4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5.What the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.

6.What logistics waysd we can work for shipment ?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.

7.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 30 days.
