Heli Forklift of China 2.5 Ton Cpqyd25 Gasoline or LPG Forklift Heli Forklift of China
Newindu Construction Engineering (Shanghai) Co., Ltd.- Cab Location：Adjustable
- Type：Diesel Forklift
- Power：Diesel Engine
- Load Capacity：5T - 10T
- Fuel：Diesel
- Load center：>500mm
Base Info
- Model NO.：CPQYD25
- Lift height：3000~5000mm
- Condition：New
- Transport Package：Nude
- Specification：4365*3510*1995mm
- Trademark：YTO
- Origin：Henan, China
- HS Code：84295100
- Production Capacity：500 Sets,Month
Description
Model
CP(Q)Y25
Power Type
Gasoline or LPG
Rated Capacity
kg
2500
Load Center
mm
500
Driving Mode
Sit-on type
Overall max.lifting height(with backrest)
h4
mm
4030
Max.Lifting height
h3
mm
3000
Height mast retracted(upright)
h1
mm
2000
Free lift height
h2
mm
170
Backrest height(from upper face of forks)
h8
mm
995
Overall height(overhead guard)
h6
mm
2170
Overall length(without forks)
(L1/L2)
mm
3646/2576
Front overhang
X
mm
477
Rear overhang
L4
mm
494
Wheel base
L5
mm
1600
Coupler height
h5
mm
290
Min.groud clearance under mast
m1
mm
110
Overall width
B
mm
1170
Lateral fork adjustment(Outside of fork)
R
mm
1024/200
Tread(front)
(S/P)
mm
970/970
Inside turning radius
Wa
mm
2240
Outside turning radius
V
mm
160
Min.intersecting aisle
Ra
mm
2280
Tilting angles(forward/backward)
α/β
6°/12°
Fork Size
axbxc
mm
1070*122*40

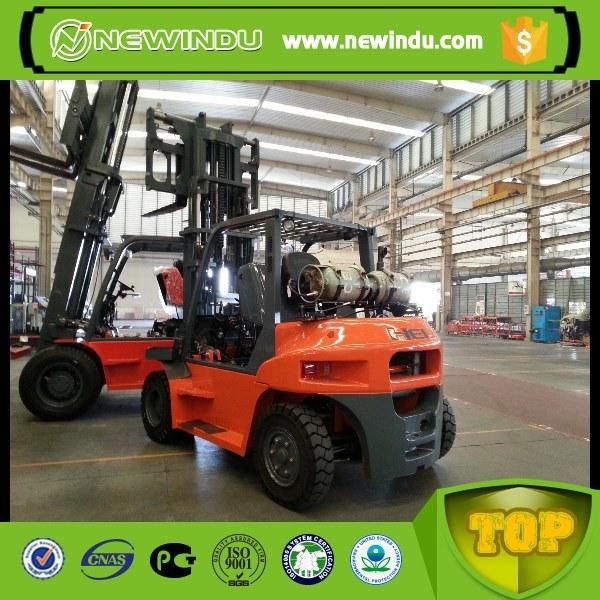

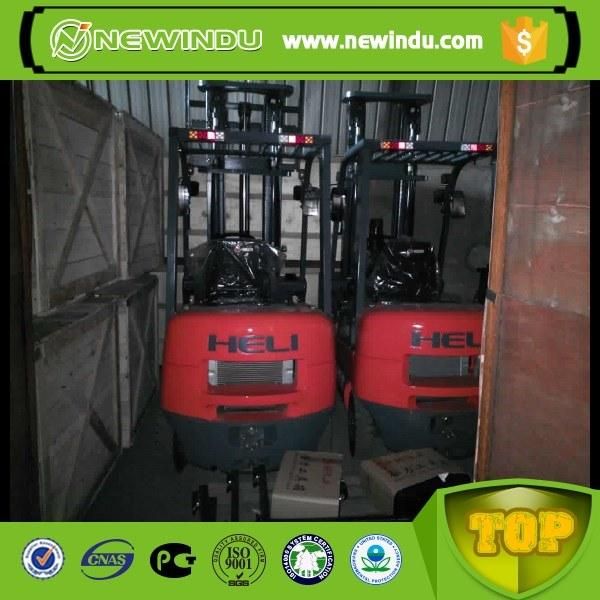

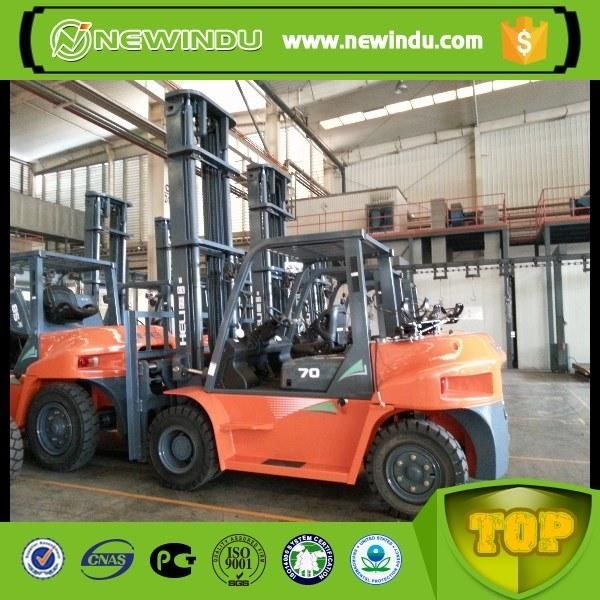

Photos for Reference
