• Model NO.：CPCD50
• Lift height：3000~5000mm
• Condition：New
• Transport Package：Nude
• Specification：4365*3510*1995mm
• Trademark：YTO
• Origin：Henan, China
• HS Code：84295100
• Production Capacity：500 Sets,Month

Performance parameter

Travel brake

Hydraulic-Foot pedal

Parking brake

Mechanical-Hand level

Lift speed(with/without load)

mm/s

240/380

Lower speed (with/without load)

mm/s

laden<600without load>300

Travel speed (with/without load)

km/h

11/12

Max. gradeability (laden)

%

10

Max. Towing (with/without load)

kN

9.8/8

Weight Distribution with load(front/rear)

5900/840

Weight Distribution without load(front/rear)

1825/2415

Power, transmission and others

motor

Driving motor

Model

XQ-6.3-1T

Rated power

kw

6.3

Rated rotation

r/min

1200

Working motor

Model

XQD-8.6-C

Rated power

kw

8.6

Rated rotation

r/min

1550

Controller

Manufacturer

GE

Type

MOSFET

Battery

Voltage

V

48

Capacity

Ah

630

Size(L×W×H)

mm

820×1065×520

Gearbox

Transmission type

Mechanical

Tyre

type

Pneumatic tyres

Model

Pront

7.00-12-12PR

Rear

18×7-8-14PR

Others

Dead.weight

kg

4240

Free lift height

mm

140

Fork

Thickness×Width×Length

mm

40×125×1070

Overall dimensions

Overall length(without forks)

mm

2430

Overall width

mm

1150

Overall height

Extended height(mast)

mm

4030

Lowered height (mast)

mm

1995

Overhead guard

mm

2150

Min. turning radius

mm

2100

Min. under ground clearance

Under mast

mm

110

Center of wheel-base

mm

120

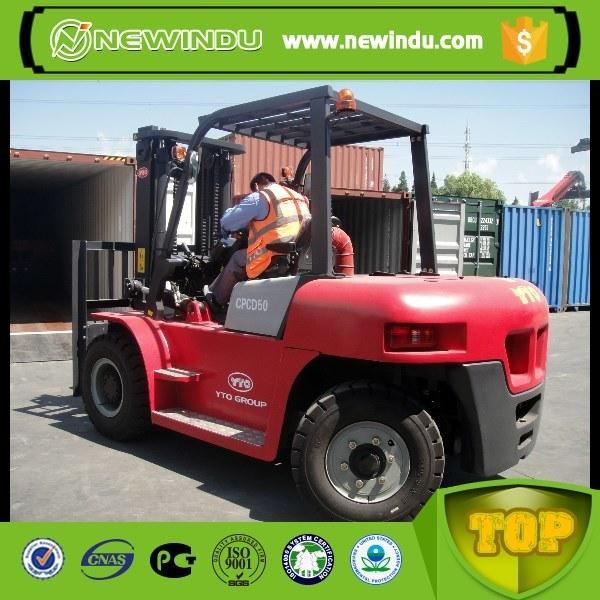

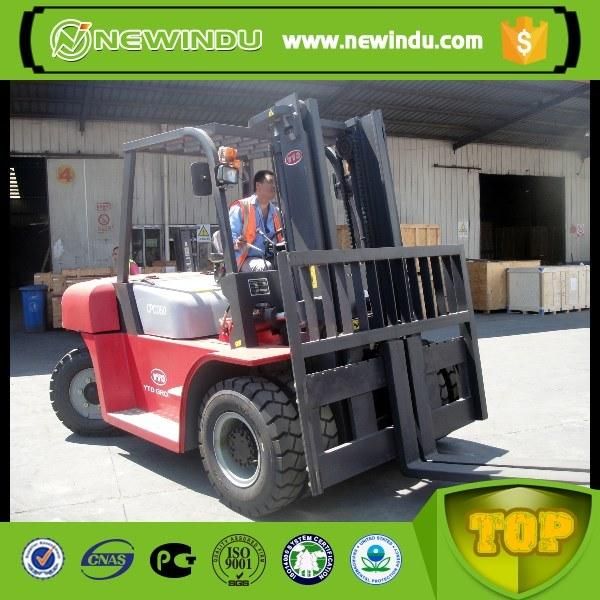

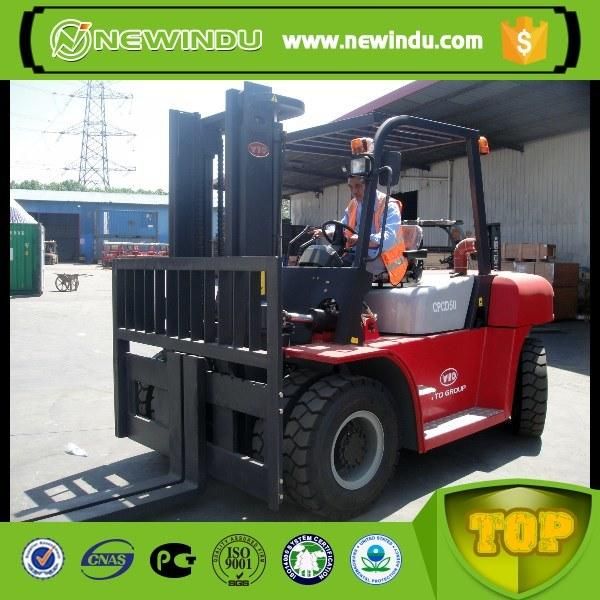

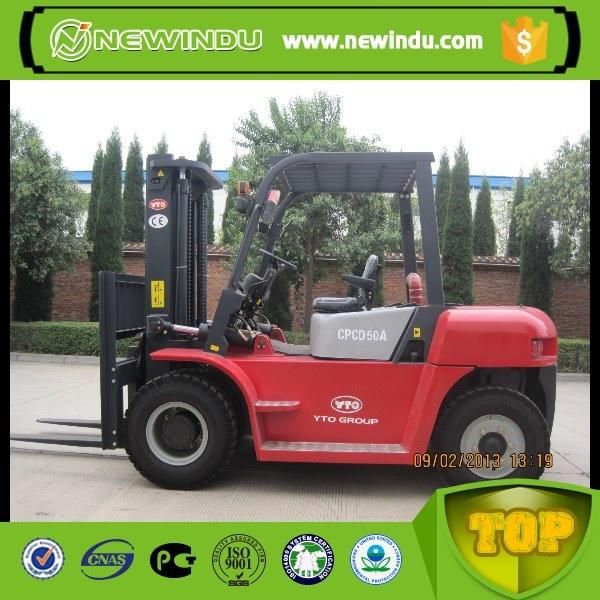

Photos for Reference
