• Model NO.：CPD15FJ5
• Lift height：2000mm-6000mm
• Condition：New
• Rated Loading Capacity：1500kg
• Service Weight：2670kg

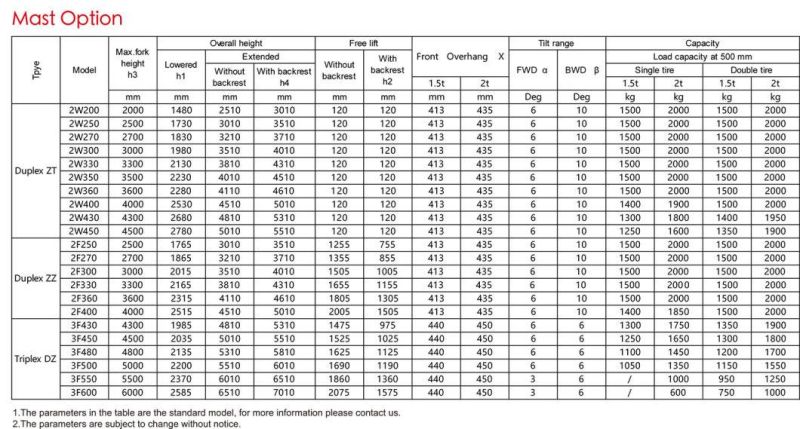

• Mast：2 Stage , 3 Stage
• Fork Length：920mm , Optional
• Fork Width：100mm
• Certification：Ce,ISO9001
• Tyre Type：Pneumatic
• Operator Type：Seated
• Battery Voltage：48V,385ah
• Travel Speed,Laden/Unladen：12,12.5 Km,H
• Transport Package：Standard
• Specification：2165*1070*2170mm
• Trademark：EP
• Origin：Zhengjiang, China
• HS Code：8427209000
• Production Capacity：4000 Units,Year

Basic Info.

Model NO. CPD15FJ5 Lift height 2000mm-6000mm Condition New Rated Loading Capacity 1500kg Service Weight 2670kg Mast 2 Stage / 3 Stage Fork Length 920mm / Optional Fork Width 100mm Certification Ce/ISO9001 Tyre Type Pneumatic Operator Type Seated Battery Voltage 48V/385ah Travel Speed,Laden/Unladen 12/12.5 Km/H Transport Package Standard Specification 2165*1070*2170mm Trademark EP Origin Zhengjiang, China HS Code 8427209000 Production Capacity 4000 Units/Year

Product Description

Distinguishing mark
1.1	Manufacturer			EP	EP
1.2	Model designation			CPD15FJ5	CPD20FJ5
1.3	Drive unit			Electrics	Electrics
1.4	Operator type			seated	seated
1.5	rated capacity	Q	t	1.5	2
1.6	Load center distance	c	mm	500	500
1.8	Load distance,centre of drive axle to fork	x	mm	413	435
1.9	Wheelbase	y	mm	1410	1410
Weight
2.1	Service weight (include battery)		kg	2670	3250
2.2	Axle loading, laden driving wheels /steering wheels		kg	3720/450	4690/560
2.3	Axle loading, unladen  driving wheels /steering wheels		kg	1230/1440	1290/1960
Types,Chassis
3.1	Tyre type,driving wheels /steering wheels			pneumatic	solid rubber / pneumatic
3.2	Tyre size, driving wheels			6.5-10-10PR	6.5-10
3.3	Tyre size, steering wheels			5.00-8-10PR	5.00-8-10PR
3.5	Wheels, number driving/steering (x=drive wheels)		mm	2x/ 2	2x/ 2
3.6	Tread, Driving wheels	b10	mm	890	890
3.7	Tread, Steering wheels	b11	mm	920	920

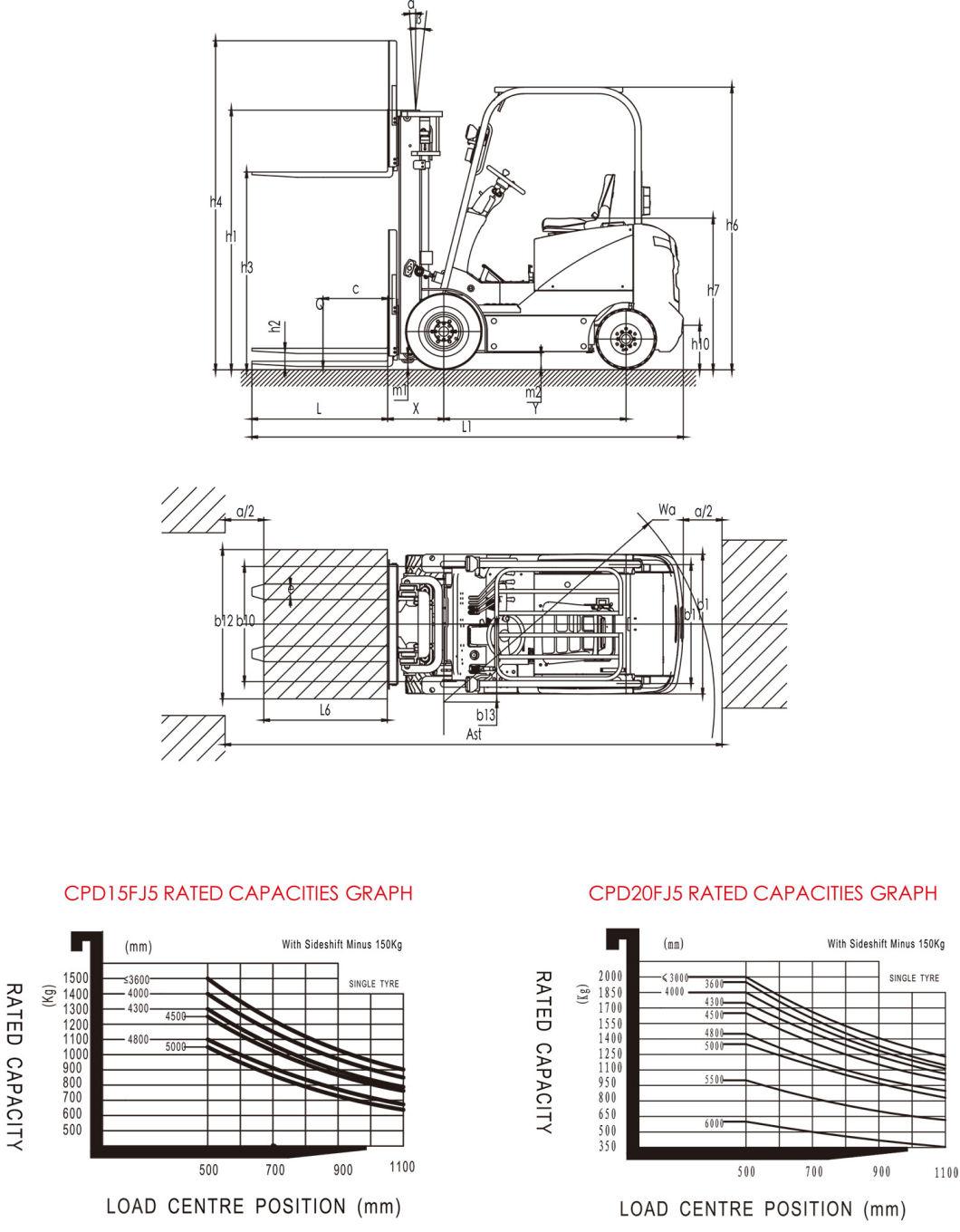

Dimensions
4.1	Tilt of mast/fork carriage forward/backward	α/ β (°)		6/ 10	6/ 10
4.2	Height, mast lowered	h1	mm	2170	2170
4.3	Free lift (load backrest)	h2	mm	120	120
4.4	Lift height	h3	mm	3000	3000
4.5	Height, mast extended	h4	mm	4010	4010
4.7	Height of overhead guard (cabin)	h6	mm	2170	2170
4.8	Seat height	h7	mm	1160	1160
4.12	Tow center of pin height	h10	mm	335	350
4.19	Overall length	l1	mm	3085	3200
4.20	Length to face of forks	l2	mm	2165	2280
4.21	Overall width	b1/ b2	mm	1080/1070	1080/1070
4.22	Fork dimensions	s/ e/ l	mm	40×100×920	40×100×920
4.23	Fork carriage class/type A, B			2A	2A
4.24	Fork carriage width	b3	mm	1085	1085
4.31	Ground clearance, laden, below mast	m1	mm	110	110
4.32	The minimum ground clearance of frame	m2	mm	110	100
4.34.1	Aisle width for pallets 1000 × 1200 crossways	Ast	mm	3673	3780
4.34.2	Aisle width for pallets 800 × 1200 lengthways	Ast	mm	3873	3980
4.35	Turning radius	Wa	mm	2060	2145
Performance data
5.1	Travel speed, laden/ unladen		km/ h	12/ 12.5	12/ 12.5
5.2	Lifting speed, laden/ unladen		m/ s	0.25/ 0.45	0.25/ 0.45
5.3	Lowering speed, laden/ unladen		m/ s	0.45/ 0.44	0.45/ 0.44
5.5	Drawbar pull, laden/unladen		N	--	--
5.6	Max. drawbar pull, laden/unladen (time)		N	11000	11000
5.7	Gradeability, laden/unladen		%	--	--
5.8	Max. gradeability, laden/unladen		%	10.5/ 14	10.5/14
5.10	Service brake type			Hydraulic+ Mechanical	Hydraulic+ Mechanical
	park brake type			Mechanical	Mechanical
Electric-engine
6.1	Drive motor rating S2 60 min		kW	6	8
6.2	Lift motor rating at S3 15%		kW	7.5	7.5
6.3	The maximum allowed size battery		mm	--	--
6.4	Battery voltage/nominal capacity K5			48/385	48/450
6.5	Battery weight		kg	660	727
Addition data
8.1	Type of drive unit			AC	AC
10.5	Steering type			--	--
10.7	Sound pressure level at the driver's ear		dB (A)	70	71
