• Model NO.：CPD18T3
• Lift height：2500mm-4500mm
• Condition：New
• Rated Loading Capacity：1800kg
• Service Weight：2385kg
• Mast：2 Stage , 3 Stage
• Fork Length：920mm , Optional
• Fork Width：100mm
• Certification：Ce,ISO9001
• Tyre Type：Pneumatic,Solid Rubber
• Operator Type：Seated
• Battery Voltage：48V,300ah
• Travel Speed,Laden/Unladen：10,12 Km,H
• Lifting Speed：0.25,0.4 Km,H
• Lowering Speed：0.45,0.44 Km,H
• Transport Package：Standard
• Specification：2240*1080*2080mm
• Trademark：EP
• Origin：Zhengjiang, China
• HS Code：8427209000
• Production Capacity：4000 Units,Year

Basic Info.

Model NO. CPD18T3 Lift height 2500mm-4500mm Condition New Rated Loading Capacity 1800kg Service Weight 2385kg Mast 2 Stage / 3 Stage Fork Length 920mm / Optional Fork Width 100mm Certification Ce/ISO9001 Tyre Type Pneumatic/Solid Rubber Operator Type Seated Battery Voltage 48V/300ah Travel Speed,Laden/Unladen 10/12 Km/H Lifting Speed 0.25/0.4 Km/H Lowering Speed 0.45/0.44 Km/H Transport Package Standard Specification 2240*1080*2080mm Trademark EP Origin Zhengjiang, China HS Code 8427209000 Production Capacity 4000 Units/Year

Product Description

Distinguishing mark
1.1	Manufacturer			EP	EP
1.2	Model designation			CPD15T3	CPD18T3
1.3	Drive unit			Electrics	Electrics
1.4	Operator type			seated	seated
1.5	rated capacity	Q	t	1.5	1.8
1.6	Load center distance	c	mm	500	500
1.8	Load distance,centre of drive axle to fork	x	mm	358	358
1.9	Wheelbase	y	mm	1410	1410
Weight
2.1	Service weight (include battery)		kg	2300	2385
2.2	Axle loading, laden driving wheels /steering wheels		kg	3440/360	3820/365
2.3	Axle loading, unladen  driving wheels /steering wheels		kg	970/1330	995/1390
Types,Chassis
3.1	Tyre type,driving wheels /steering wheels			pneumatic/solid rubber	solid rubber
3.2	Tyre size, driving wheels(diameter×width)		mm	6.0-9	6.0-9
3.3	Tyre size, steering wheels(diameter×width)		mm	15-4.5-8	15-4.5-8
3.5	Wheels, number driving/steering (x=drive wheels)		mm	2x/ 2	2x/ 2
3.6	Tread, Driving wheels	b10	mm	890	890
3.7	Tread, Steering wheels	b11	mm	180	180

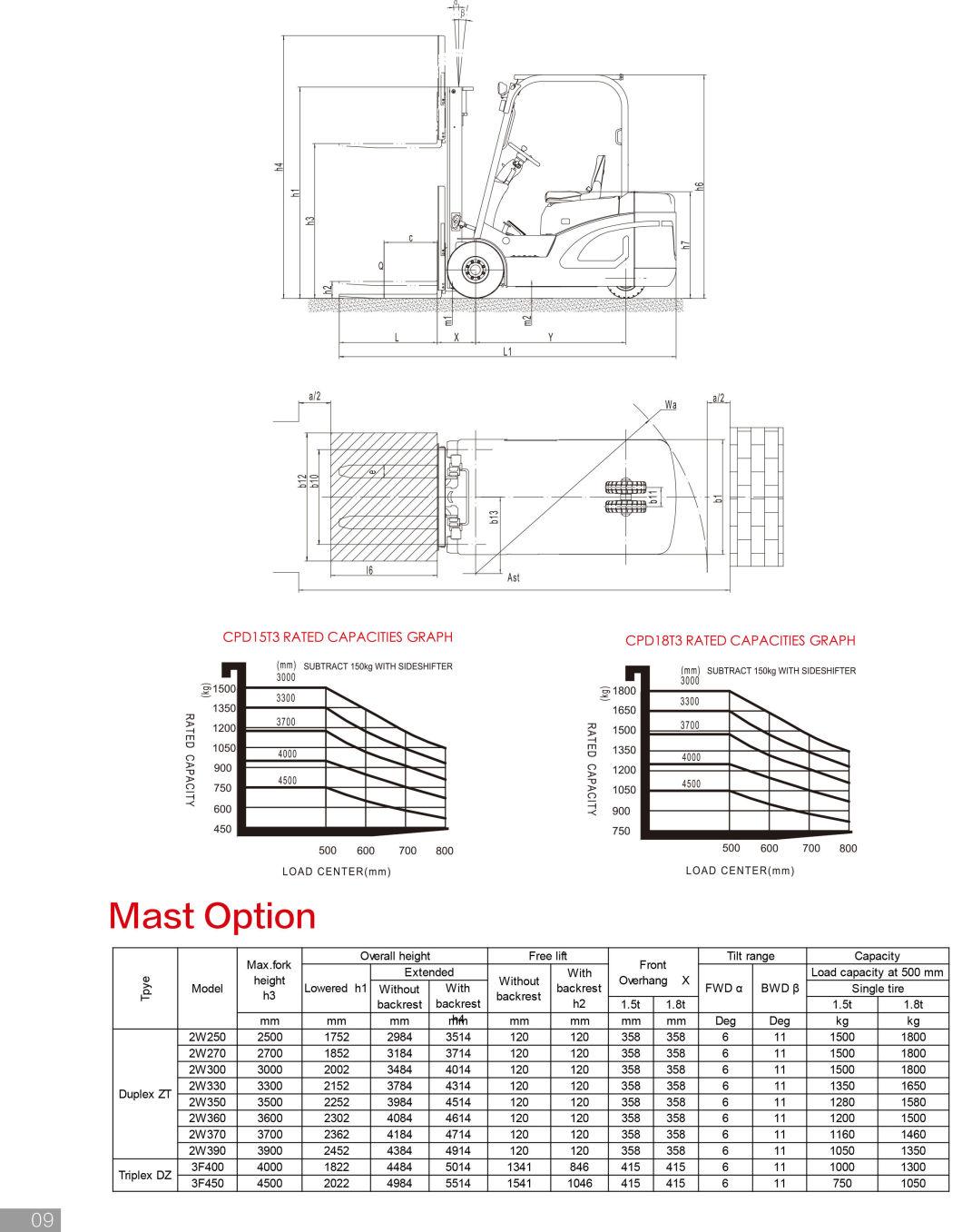

Dimensions
4.1	Tilt of mast/fork carriage forward/backward	α/ β (°)		6/ 11	6/ 11
4.2	Height, mast lowered	h1	mm	2080	2080
4.3	Free lift (load backrest)	h2	mm	120	120
4.4	Lift height	h3	mm	3000	3000
4.5	Height, mast extended	h4	mm	4015	4015
4.7	Height of overhead guard (cabin)	h6	mm	2080	2080
4.8	Seat height	h7	mm	985	985
4.12	Tow center of pin height	h10	mm	--	--
4.19	Overall length	l1	mm	3160	3160
4.20	Length to face of forks	l2	mm	2240	2240
4.21	Overall width	b1/ b2	mm	1080	1080
4.22	Fork dimensions	s/ e/ l	mm	40×100×920	40×100×920
4.23	Fork carriage class/type A, B			2A	2A
4.24	Fork carriage width	b3	mm	1000	1000
4.31	Ground clearance, laden, below mast	m1	mm	90	90
4.32	The minimum ground clearance of frame	m2	mm	100	100
4.34.1	Aisle width for pallets 1000 × 1200 crossways	Ast	mm	4265	4265
4.34.2	Aisle width for pallets 800 × 1200 lengthways	Ast	mm	4290	4290
4.35	Turning radius	Wa	mm	2175	2175
Performance data
5.1	Travel speed, laden/ unladen		km/ h	10/12	10/12
5.2	Lifting speed, laden/ unladen		m/ s	0.25/ 0.4	0.25/ 0.4
5.3	Lowering speed, laden/ unladen		m/ s	0.45/ 0.44	0.45/ 0.44
5.5	Drawbar pull, laden/unladen		N	--	--
5.6	Max. drawbar pull, laden/unladen (time)		N	--	--
5.7	Gradeability, laden/unladen		%	--	--
5.8	Max. gradeability, laden/unladen		%	10.5/ 14	10.5/ 14
5.10	Service brake type			Mechanics+ hydraulic	Mechanics+ hydraulic
	park brake type			Mechanics	Mechanics
Electric-engine
6.1	Drive motor rating S2 60 min		kW	5	5
6.2	Lift motor rating at S3 15%		kW	7.5	7.5
6.3	The maximum allowed size battery		mm	1000X377X760	1000X377X760
6.4	Battery voltage/nominal capacity K5			48/300	48/300
6.5	Battery weight		kg	588	588
Addition data
8.1	Type of drive unit			AC	AC
10.5	Steering type			--	--
10.7	Sound pressure level at the driver's ear		dB (A)	70	70
