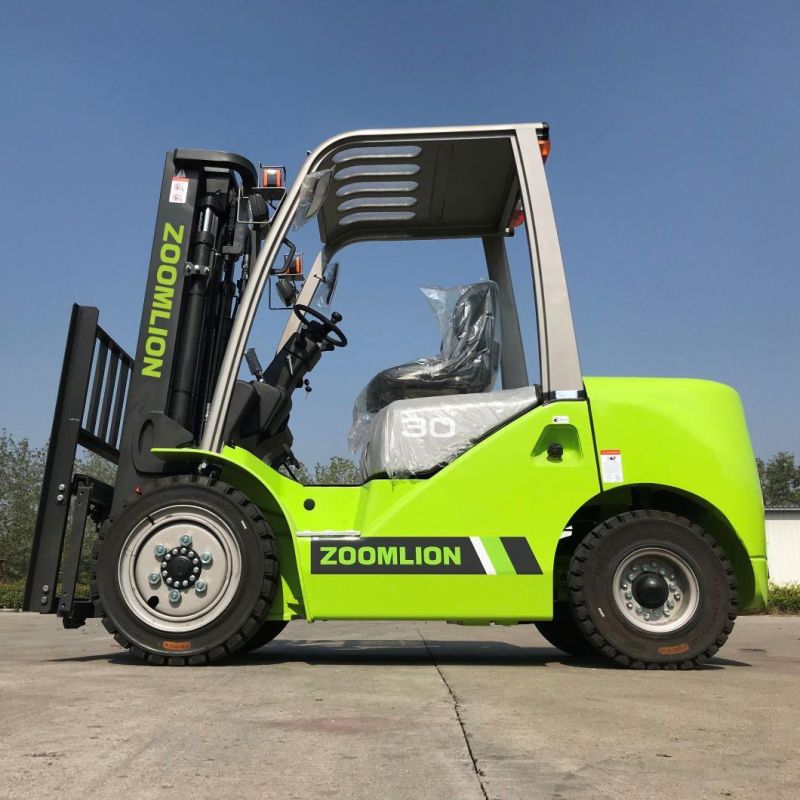

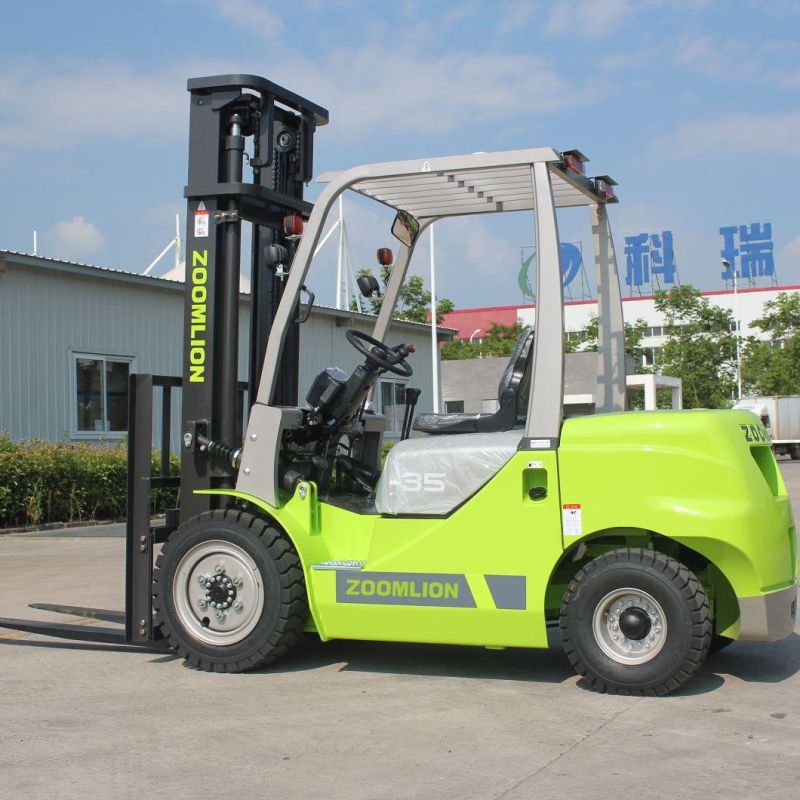

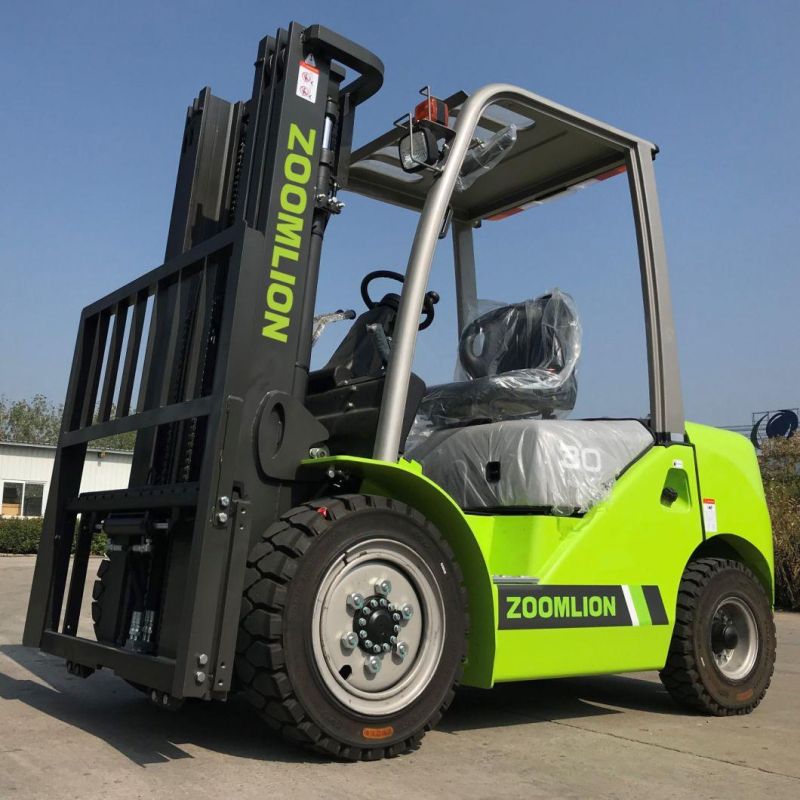

• Model NO.：FD35Z
• Lift height：3000~5000mm
• Condition：New
• Rated Loading Capacity：3500kg
• Max. Lifting Height：3000mm
• Fork Length：1070mm
• Forkwidth：122mm
• Engine：Quanchai Isuzu
• Transport Package：Nude Package
• Specification：3500*1150*2150mm
• Trademark：ZOOMLION
• Origin：Anhui, China
• HS Code：8430691100
• Production Capacity：100pieces,Month

SpecificationsUnitFD30ZFD35ZFD38ZCharacteristicsPower-dieseldieseldieselRated Capacitykg300035003800Center of loadJ(mm)500500500Lifting heighth1(mm)300030003000Free lifting heighth3(mm)14514590Forks L×W×HL5×W×T(mm)1070×125×451070×125×451070×150×50Tilt Forward/Backwardº6/126/126/12Min.turning radiusR1(mm)260026002650Min.ground clearance(Mast)m(mm)120120135Overhead guard heighth4(mm)217021702170Height from seat to overhead guardL3(mm)480480501Front overhangL4(mm)545545595PerfMax.traveling speed(loaded)km/h202020Max.lifting speed(loaded/empty)mm/s470/520470/520470/520Drawbar pull/GradeabilitykN/%18/2018/2018/20DimensionsOverall length (without fork)L1(mm)389538953966Overall widthW1(mm)123012301230Mast lowered height h2(mm)206520952170Mast extended heightmm426042654263ChassisTireFront-28×9-15-12PR28×9-15-12PR250-15-16PRRear-6.50-10-10PR6.50-10-10PR6.50-10-10PRWheelbaseL2(mm)180018001800Tread widthFront/RearS/P(mm)1000/9701000/9701000/970Curb weightNone-loadkg425044504800PowertrainBatteryVoltage/CapacityV/Ah12/9012/9012/90EngineModel-QC490GPQC490GPQC495GRated powerkw/r.p.m39/265039/265042/2650Rated torqueN·m/r.p.m157/1980157/1980174/1980Cylinder amount-444Bore×Stroke mm90×10590×10595×105DisplacementL2.672.672.98Fuel tankL707070Transmission-1/1 automatic transmissionWorking pressureMPa17.517.517.5
