• Model NO.：CPD15F8
• Lift height：3000mm-6000mm
• Condition：New
• Side Shift：Optional
• Transmission：Powershift
• Mast：2 Stage ,3 Stage
• Lifting Height：2-6m
• Color：Optional
• Tyre：Pneumatic ,Solid
• OEM Service：Yes
• Self Weight：3050
• Turning Radius：2045mm
• Type of Drive Unit：AC
• Travel Speed：14,14.5 Km,H
• Lifting Speed：0.3,0.45 M,S
• Lowering Speed：0.45,0.44 M,S
• Transport Package：Standard Export Package
• Specification：2170*1080*2098mm
• Trademark：EP
• Origin：China
• HS Code：8427209000
• Production Capacity：4000 Units

Basic Info.

Model NO. CPD15F8 Lift height 3000mm-6000mm Condition New Side Shift Optional Transmission Powershift Mast 2 Stage /3 Stage Lifting Height 2-6m Color Optional Tyre Pneumatic /Solid OEM Service Yes Self Weight 3050 Turning Radius 2045mm Type of Drive Unit AC Travel Speed 14/14.5 Km/H Lifting Speed 0.3/0.45 M/S Lowering Speed 0.45/0.44 M/S Transport Package Standard Export Package Specification 2170*1080*2098mm Trademark EP Origin China HS Code 8427209000 Production Capacity 4000 Units

Product Description

Distinguishing mark
1.1	Manufacturer			EP	EP	EP	EP
1.2	Model designation			CPD15F8	CPD15F8(-H)	CPD18F8	CPD18F8(-H)
1.3	Drive unit			Electrics	Electrics	Electrics	Electrics
1.4	Operator type			seated	seated	seated	seated
1.5	rated capacity	Q	t	1.5	1.5	1.8	1.8
1.6	Load center distance	c	mm	500	500	500	500
1.8	Load distance,centre of drive axle to fork	x	mm	413	413	413	413
1.9	Wheelbase	y	mm	1400	1400	1400	1400
Weight
2.1	Service weight		kg	3050	3050	3120	3120
2.2	Axle loading, laden front/ rear		kg	3899/651	3899/651	4331/589	4331/589
2.3	Axle loading, unladen front/ rear		kg	1485/1565	1485/1565	1489/1631	1489/1631
Tyre,type
3.1	Tyre type			pneumatic	pneumatic	pneumatic	pneumatic
3.2	Tyre size, front			6.5-10-10PR	6.5-10-10PR	6.5-10-10PR	6.5-10-10PR
3.3	Tyre size, rear			5.00-8-10PR	5.00-8-10PR	5.00-8-10PR	5.00-8-10PR
3.5	Wheels, number front/ rear (x=drive wheels)		mm	2x/ 2	2x/ 2	2x/ 2	2x/ 2
3.6	Tread, front	b10	mm	890	890	890	890
3.7	Tread, rear	b11	mm	920	920	920	920

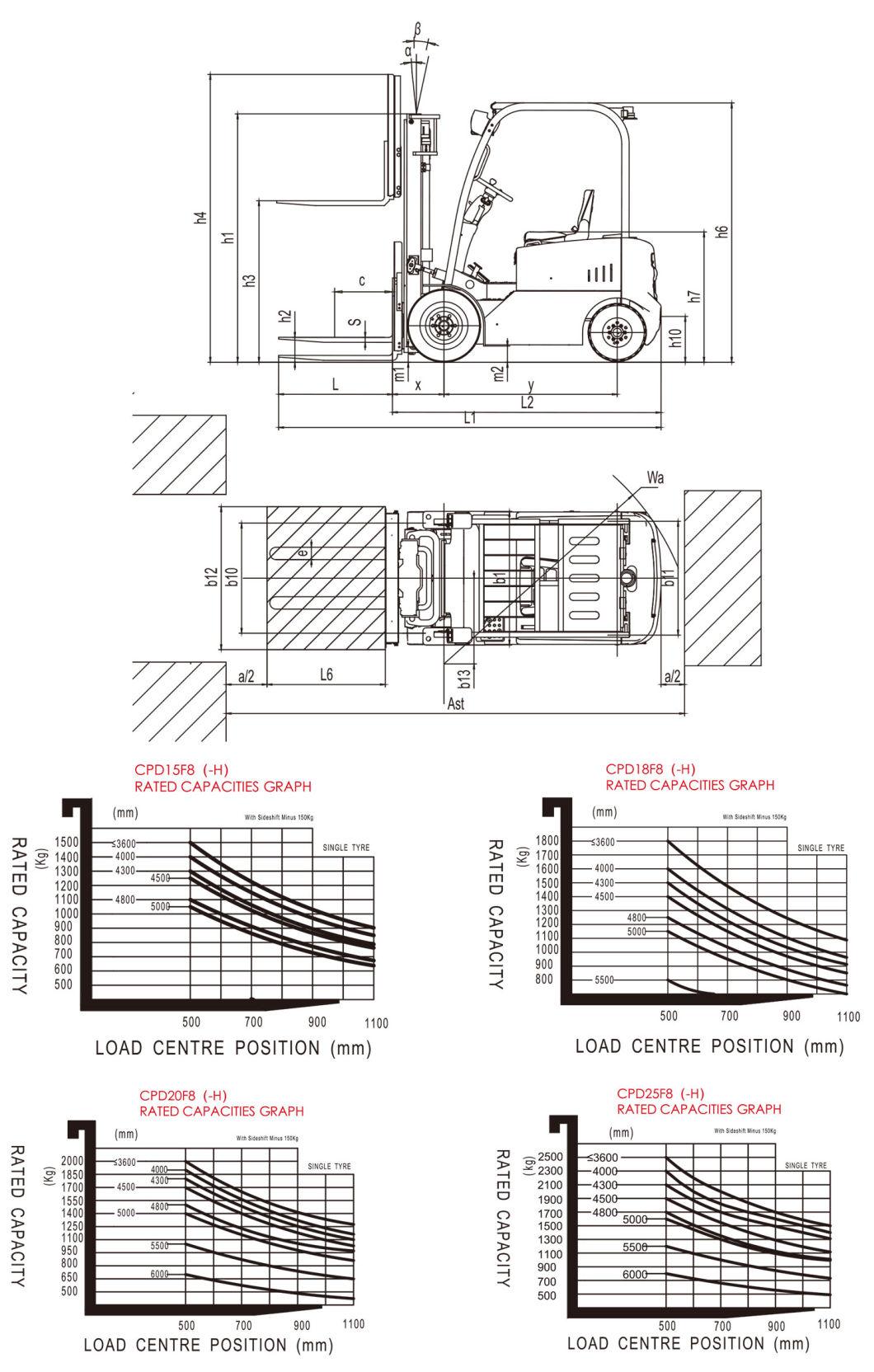

Dimensions
4.1	Tilt of mast/fork carriage forward/backward	α/ β (°)		6/ 12	6/ 12	6/ 12	6/ 12
4.2	Height, mast lowered	h1	mm	2098	2098	2098	2098
4.3	Free lift	h2	mm	120	120	120	120
4.4	Lift height	h3	mm	3000	3000	3000	3000
4.5	Height, mast extended	h4	mm	4010	4010	4010	4010
4.7	Height of overhead guard (cabin)	h6	mm	2098	2098	2098	2098
4.8	Seat height/standing height	h7	mm	1053	1053	1053	1053
4.12	Tow coupling height	h10	mm	390	390	390	390
4.19	Overall length	l1	mm	3090	3090	3090	3090
4.20	Length to face of forks	l2	mm	2170	2170	2170	2170
4.21	Overall width	b1/ b2	mm	1080	1080	1080	1080
4.22	Fork dimensions	s/ e/ l	mm	40×100×920	40×100×920	40×100×920	40×100×920
4.23	Fork carriage class/type A, B			――	――	――	――
4.24	Fork carriage width	b3	mm	1085	1085	1085	1085
4.31	Ground clearance, laden, below mast	m1	mm	120	120	120	120
4.32	Ground clearance, center of wheelbase	m2	mm	110	110	110	110
4.34.1	Aisle width for pallets 1000 × 1200 crossways	Ast	mm	3658	3658	3658	3658
4.34.2	Aisle width for pallets 800 × 1200 crossways	Ast	mm	3858	3858	3858	3858
4.35	turning radius	Wa	mm	2045	2045	2045	2045
Performance data
5.1	Travel speed, laden/ unladen		km/ h	14/14.5	14/14.5	14/14.5	14/14.5
5.2	Lifting speed, laden/ unladen		m/ s	0.3/0.45	0.3/0.45	0.3/0.45	0.3/0.45
5.3	Lowering speed, laden/ unladen		m/ s	0.45/0.44	0.45/0.44	0.45/0.44	0.45/0.44
5.5	Drawbar pull, laden/unladen		N	――	――	――	――
5.6	Max. drawbar pull, laden/unladen		N	11000	11000	11000	11000
5.7	Gradeability, laden/unladen		%	――	――	――	――
5.8	Max. gradeability, laden/unladen		%	10.5/14	10.5/14	10.5/14	10.5/14
5.9	Acceleration time, laden/unladen		s	Hydraulic / Mechanical	Hydraulic / Mechanical	Hydraulic / Mechanical	Hydraulic / Mechanical
5.10	Service brake			Mechanical	Mechanical	Mechanical	Mechanical
Electric-engine
6.1	Drive motor rating S2 60 min		kW	8	8	8	8
6.2	Lift motor rating at S3 15%		kW	11	7.5	11	7.5
6.3	Battery according to DIN 43531 /35 / 36 A, B, C, no			――	――	――	――
6.4	Battery voltage/nominal capacity K5			48/400	48/400	48/540	48/540
6.5	Battery weight		kg	780	780	923	923
Addition data
8.1	Type of drive unit			AC	DC	AC	DC
10.5	Steering type			--	--	--	--
10.7	Sound pressure level at the driver's ear		dB (A)	70	70	70	70

Distinguishing mark
1.1	Manufacturer			EP	EP	EP	EP
1.2	Model designation			CPD20F8	CPD20F8(-H)	CPD25F8	CPD25F8(-H)
1.3	Drive unit			Electrics	Electrics	Electrics	Electrics
1.4	Operator type			seated	seated	seated	seated
1.5	rated capacity	Q	t	2	2	2.5	2.5
1.6	Load center distance	c	mm	500	500	500	500
1.8	Load distance,centre of drive axle to fork	x	mm	456	456	456	456
1.9	Wheelbase	y	mm	1500	1500	1500	1500
Weight
2.1	Service weight (include battery)		kg	3860	3860	4030	4030
2.2	Axle loading, laden driving wheels /steering wheels		kg	5350/510	5350/510	5930/600	5930/600
2.3	Axle loading, unladen  driving wheels /steering wheels		kg	1770/2090	1770/2090	1800/2230	1800/2230
Types,Chassis
3.1	Tyre type,driving wheels /steering wheels			pneumatic	pneumatic	pneumatic	pneumatic
3.2	Tyre size, driving wheels			23×9-10	23×9-10	23×9-10	23×9-10
3.3	Tyre size, steering wheels			18X7-8	18X7-8	18X7-8	18X7-8
3.5	Wheels, number driving/steering (x=drive wheels)		mm	2x/ 2	2x/ 2	2x/ 2	2x/ 2
3.6	Tread, Driving wheels	b10	mm	1045	1045	1045	1045
3.7	Tread, Steering wheels	b11	mm	950	950	950	950
Dimensions
4.1	Tilt of mast/fork carriage forward/backward	α/ β (°)		6/11	6/11	6/11	6/11
4.2	Height, mast lowered	h1	mm	2180	2180	2180	2180
4.3	Free lift (load backrest)	h2	mm	120	120	120	120
4.4	Lift height	h3	mm	3000	3000	3000	3000
4.5	Height, mast extended	h4	mm	4010	4010	4010	4010
4.7	Height of overhead guard (cabin)	h6	mm	2180	2180	2180	2180
4.8	Seat height	h7	mm	1105	1105	1105	1105
4.12	Tow center of pin height	h10	mm	305	305	305	305
4.19	Overall length	l1	mm	3416	3416	3416	3416
4.20	Length to face of forks	l2	mm	2346	2346	2346	2346
4.21	Overall width	b1/ b2	mm	1252	1252	1252	1252
4.22	Fork dimensions	s/ e/ l	mm	40×120×1070	40×120×1070	40×120×1070	40×120×1070
4.23	Fork carriage class/type A, B			2A	2A	2A	2A
4.24	Fork carriage width	b3	mm	1085	1085	1085	1085
4.31	Ground clearance, laden, below mast	m1	mm	110	110	110	110
4.32	The minimum ground clearance of frame	m2	mm	125	125	125	125
4.34.1	Aisle width for pallets 1000 × 1200 crossways	Ast	mm	3791	3791	3791	3791
4.34.2	Aisle width for pallets 800 × 1200 lengthways	Ast	mm	3991	3991	3991	3991
4.35	Turning radius	Wa	mm	2135	2135	2135	2135
Performance data
5.1	Travel speed, laden/ unladen		km/ h	13/ 13.5	13/ 13.5	13/ 13.5	13/ 13.5
5.2	Lifting speed, laden/ unladen		m/ s	0.3/ 0.45	0.28/ 0.45	0.3/ 0.45	0.28/ 0.45
5.3	Lowering speed, laden/ unladen		m/ s	0.44/ 0.435	0.44/ 0.435	0.44/ 0.435	0.44/ 0.435
5.5	Drawbar pull, laden/unladen		N	--	--	--	--
5.6	Max. drawbar pull, laden/unladen (time)		N	17000	17000	17000	17000
5.7	Gradeability, laden/unladen		%	--	--	--	--
5.8	Max. gradeability, laden/unladen		%	10.5/14	10.5/14	10.5/14	10.5/14
5.10	Service brake type			Hydraulic+Mechanical	Hydraulic+Mechanical	Hydraulic+Mechanical	Hydraulic+Mechanical
	park brake type			Mechanical	Mechanical	Mechanical	Mechanical
Electric-engine
6.1	Drive motor rating S2 60 min		kW	11	11	11	11
6.2	Lift motor rating at S3 15%		kW	13	1/8	13	1/10
6.3	The maximum allowed size battery		mm	--	--	--	--
6.4	Battery voltage/nominal capacity K5			48/600(Max770)	48/600(Max770)	48/630(Max770)	48/630(Max770)
6.5	Battery weight		kg	940	940	1044	1044
Addition data
8.1	Type of drive unit			AC	AC	AC	AC
10.5	Steering type			--	--	--	--
10.7	Sound pressure level at the driver's ear		dB (A)	71	72	71	72
