• Model NO.：Reach Stacker
• Lift height：>5000mm
• Condition：New
• Engine：Volvo Tad 1171 Ve
• Emission Standard：Euro Stage IV
• Transmission：Dana Clark Gearbox 15.5 Hr 36000
• Drive Axle：Kessler D 102 Pl 341
• Tire：18.00 - 25
• Max.Lifting Speed (Non-Load/Load)：220,440 mm,S
• Ax.Travel Speed (Non-Load/Load)：21,25 Km,H
• Overall Weight：75500 Kg
• Max.Load：45-31-15 T
• Wheel Base：6000 mm
• Transport Package：Nude Packing
• Specification：45 ton Reach Stacker
• Trademark：Sany
• Origin：China
• Production Capacity：10 Units,Month

Basic Info.

Model NO. Reach Stacker Lift height >5000mm Condition New Engine Volvo Tad 1171 Ve Emission Standard Euro Stage IV Transmission Dana Clark Gearbox 15.5 Hr 36000 Drive Axle Kessler D 102 Pl 341 Tire 18.00 - 25 Max.Lifting Speed (Non-Load/Load) 220/440 mm/S Ax.Travel Speed (Non-Load/Load) 21/25 Km/H Overall Weight 75500 Kg Max.Load 45-31-15 T Wheel Base 6000 mm Transport Package Nude Packing Specification 45 ton Reach Stacker Trademark Sany Origin China Production Capacity 10 Units/Month

Product Description

Sany Port Machinery Sany Reach Stacker



.  Focused on special automobiles' design and production for nearly 10 years.
. Obtained the ISO9001 international quality management system certification.
. Achieved foreign trade qualification granted by Chinese government.
. Manufacturer direct sale,quality guaranteed, low price.
. Europe Emission Standard 2/3/4/5.
. Except standard products, also customize products according to your requirements.

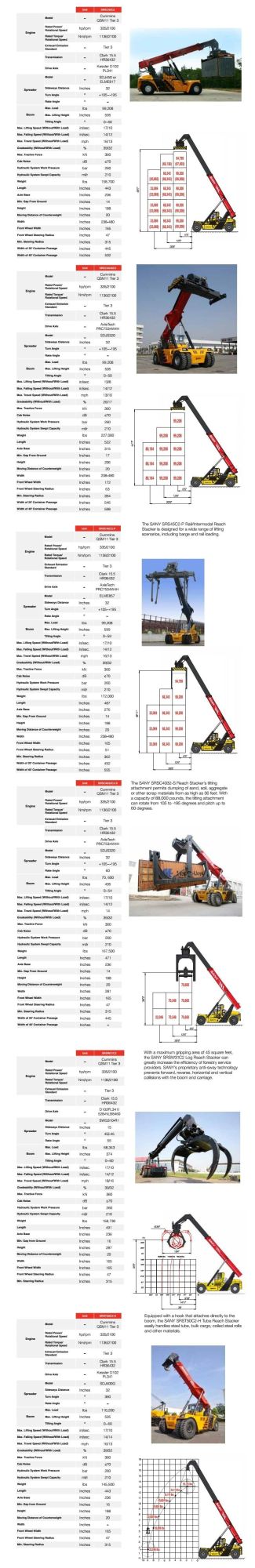

Parameters

Premium comes as standard with a high performance drive train which includes a fuel efficient Volvo power unit, Clark transmissions and Kessler drive axle. Options for a Sany or Elme spreader complete its core specification.

SANY offers the best visibility. The operator's cabin is designed to facilitate the driver's natural range of movement and frameless windows provide an unrestricted view of the working environment.

A more comfortable working environment is supported by sound insulation with exceeds the highest industry standards.

Vehicle visibility in all environments - day and night - is enforced by a standard 18LED lights.



MAIN FEATURES

TAD 1171 VE Euro Stage IV

Dana Clark gearbox 15.5 HR 36000

Drive Axle Kessler D 102 PL 341

ELME Top lift Spreader Model 817

Movable rear weight to increase the load

Hydraulic movable cab for drivers best view to the environment

LED Light system: 18 LED Lights + brake/indicators/reverse lights

Air conditioning as a standard equipment

Reversing camera system as standard equipment

Fully adjustable comfort seat from Company Grammer

Buddy seat with seat belt

Configurable Joystick for all work functions

Large IFM-HMI high resolution color Display for perfect Monitoring

Additional status display in the driver's field of vision

Load-sensing technology for a highly efficient hydraulic system

Dual variable displacement pump system for highest efficiency

Load sensing proportional Control-Valve

CAN BUS system for data transfer

CAN BUS diagnostic for main components

Radio prearrangement

2 liters fire extinguisher

Rotating amber beacon

Sun curtain on roof window
