• Model NO.：sany reach stacker
• Lift height：>5000mm
• Condition：New
• Engine：Cummins Qsb6.7
• Emission Standard：Tier III
• Rated Power：164,2300kw,Rpm
• Max.Torque：949,1400nm,Rpm
• Transmission：Clark 13.7hr32334
• Drive Axle：Kessler D81 Pl488
• Tire：14.00-24 28pr
• Max.Lifting Height：16200mm
• Boom Tilt Angle：0-64.5
• Wheel Base：5000 mm
• Transport Package：Nude Packing
• Specification：10 ton Reach Stacker
• Trademark：Sany
• Origin：China
• Production Capacity：10 Units,Month

Basic Info.

Model NO. sany reach stacker Lift height >5000mm Condition New Engine Cummins Qsb6.7 Emission Standard Tier III Rated Power 164/2300kw/Rpm Max.Torque 949/1400nm/Rpm Transmission Clark 13.7hr32334 Drive Axle Kessler D81 Pl488 Tire 14.00-24 28pr Max.Lifting Height 16200mm Boom Tilt Angle 0-64.5 Wheel Base 5000 mm Transport Package Nude Packing Specification 10 ton Reach Stacker Trademark Sany Origin China Production Capacity 10 Units/Month

Product Description

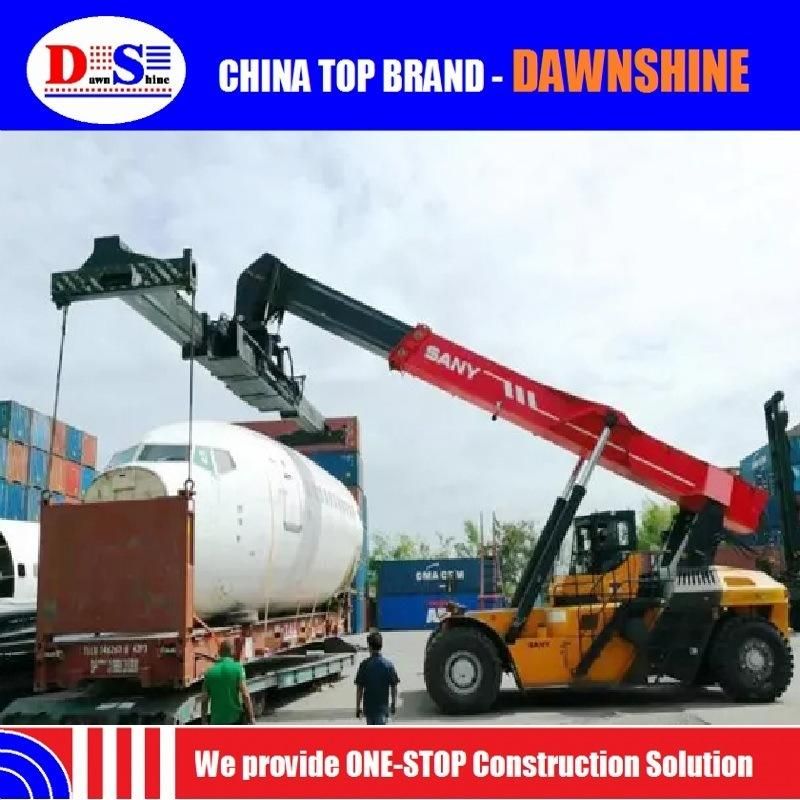

Container Handling Equipment Used In Port SANY Reach Stacker



.  Focused on special automobiles' design and production for nearly 10 years.
. Obtained the ISO9001 international quality management system certification.
. Achieved foreign trade qualification granted by Chinese government.
. Manufacturer direct sale,quality guaranteed, low price.
. Europe Emission Standard 2/3/4/5.
. Except standard products, also customize products according to your requirements.

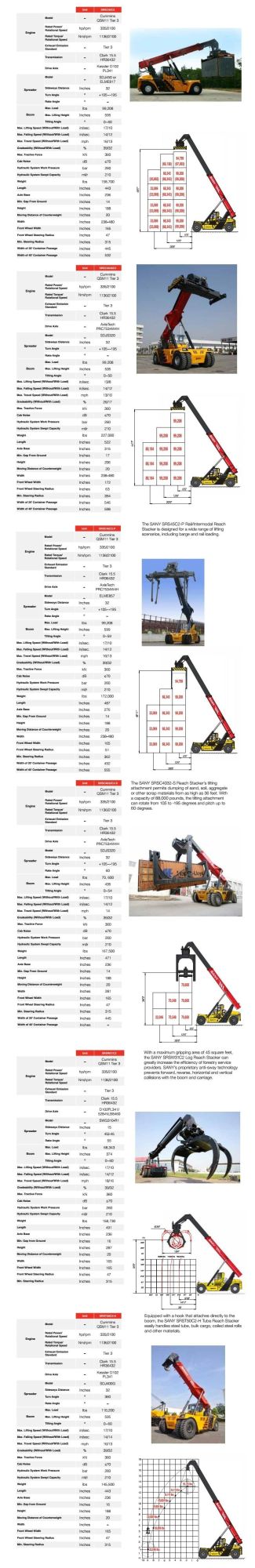

Parameters

The SANY reach stacker SRSC1009-6E is mainly used in ports, wharfs and storage yards to handle, transfer and stack various containers and other materials. With many product series such as heavy, overweight hurdling, light, empty container and off-road reach stackers, SANY reach stacker SRSC1009-6E can accommodate various industries, bringing you the maximum economic benefit.

Safe and Reliable

Dynamic Anti-rollover Protection

Uses intelligent control technology to detect equipment's real-time working parameters and automatically adjust the operating status under dangerous conditions to prevent rollover, keeping you safe on the job.

Anti-collision Technology

By using intelligent control to regulate the positions of spreaders and booms, the reach stacker can effectively prevent collision among the spreader, frame and boom. This technology helps eliminate accidents by faulty operation.

Automatic Fire Extinguishing

The pipeline network has an automatic fire extinguisher with strong spray. It is capable of acting as a fire alarm, anti-flaming and fire extinguishing.

Solid Tire Suspension Technology

It features a solid tire flexible damping system to achieve safer operation and lower maintenance cost. Combined with flexible suspension technology, the technology significantly reduces the shocking load while raising operation comfort and prolonging component longevity.

Automatic Braking Technology upon Reversing

By using laser scanning and graphic identification technology, the machine can detect people or obstacles within the driving route with a high degree of precision. The reach stacker then brakes automatically to prevent accidents.

Reliable Structure Design

Featuring a joint Chinese-German design, the machine underwent a full-digit prototype design system. During development, the design underwent finite element analysis (FEA) and dynamics simulation analysis, as well as strict endurance and vibration tests.

Reliable Power System

Using world-famous engines like Volvo and Cummins, which combine advanced power matching and control technology, SANY equipment is optimized for dynamic performance. The engine and gearbox are protected, significantly prolonging their longevity.

High Efficiency

Vertical Lifting Technologies

The intelligent controller monitors the boom's parameters in real-time, automatically adjusting the position of the boom to allow vertical lifting of the spreader. This technology makes stacking safer and improves work efficiency.

Efficient Control Technology

The centralized joystick's inching control has up to one millimeter of precision. All the spreaders' motions are under proportional control, providing an experience of man-machine unification. The machine also has a multi-motion linkage design to operate faster and more efficiently.

Comfortable Operation Environment

The operator-oriented design includes a wide viewing angle, and the controls are easily accessible.

Bulk Container Handling Technology

SANY's bulk reach stacker broke through the bottleneck of bulk container handling and simplified the handling process, dramatically improving work efficiency.

Energy Saving

Hydraulic Load Sensing System

The reach stacker features high precision flow control by automatically adjusting the pump displacement according to load. Because this system is much more precise, it drastically decreases the amount of energy wasted.

Dynamic Power Matching Control System

The machine features a dynamic power system that adjusts engine speed based on changes in load. The output power automatically accommodates loading and working conditions, reducing energy consumption.

Lighter Design

SANY has optimized the structure to make it lighter and stronger.
