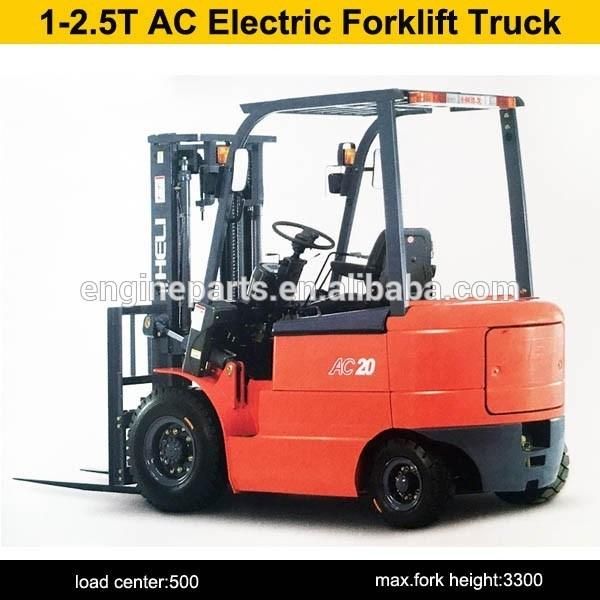

• Model NO.：CPD18
• Model：Cpd18
• Configuration No.：Cj1,Cj2
• Standard Mast Lifting Height：3000mm
• Transport Package：Container
• Trademark：HELI
• Origin：China
• Production Capacity：1000PCS

Model CPD15CPD18Configuration No. CJ1/CJ2CJ1/CJ2Load capacitykg15001750Load centermm500500Standard mast lifting heightmm30003000Free hoisting heightmm155155Overall height (upper frame protection)mm21602160Full length (without pallet fork)mm21302160Full width (before/after)mm10701070Wheelbasemm13701370The minimum ground clearance (the door)mm110110The minimum turning radius (outer)mm19301960Least square channel width
(1200 * 1200 mm tray, 20 mm gap)mm37603790Pallet fork length * width * thicknessmm35*100*92035*100*920The door frame Angle(before/after)deg.6/126/12Tire type(before/after) Pneumatic tyresPneumatic tyresMaximum speed (full/empty)km/h14/1514/15Maximum gradeability (full/empty)%17/2515/23Hoisting speed (full/empty)mm/s270/450280/530Battery capacityV/Ah48/55048/550Control mode (driving, pump) Ac/dc controlAc/dc controlThe total battery (reservation)kg30003250*Ac lifting speed (full/empty)mm/s340/490330/490*Control mode (driving, pump) Exchange controlExchange control

our  company
Yancheng Foreign machinery Parts Co., LTD  specializes in agricultural machines,spare parts,implements and machinery accessories over ten years with rich experience and best-selling consumer market, such as Philippines, Vietnam, Srilanka, Myanmar, Indonesia, Tanzania.etc.
Strength, best credit,quality and service is our advantage to expand our market.Hoping we will have a good communication after you browse our website and know  our products.
