• Lift height：3000~5000mm
• Condition：New
• Electric Controller：Curtis
• Loading Capacity：2000kg
• Transport Package：Standard Packing
• Specification：CE
• Trademark：MIMA
• Origin：China
• HS Code：8427109000
• Production Capacity：More Than 3000PCS,Year

Basic Info.

Lift height 3000~5000mm Condition New Electric Controller Curtis Loading Capacity 2000kg Transport Package Standard Packing Specification CE Trademark MIMA Origin China HS Code 8427109000 Production Capacity More Than 3000PCS/Year

Product Description

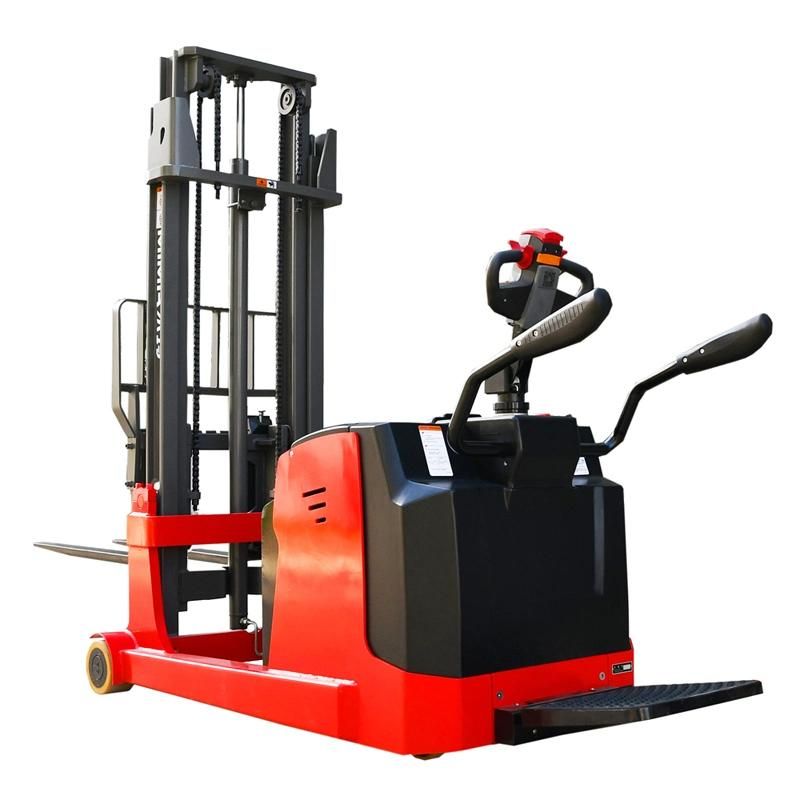

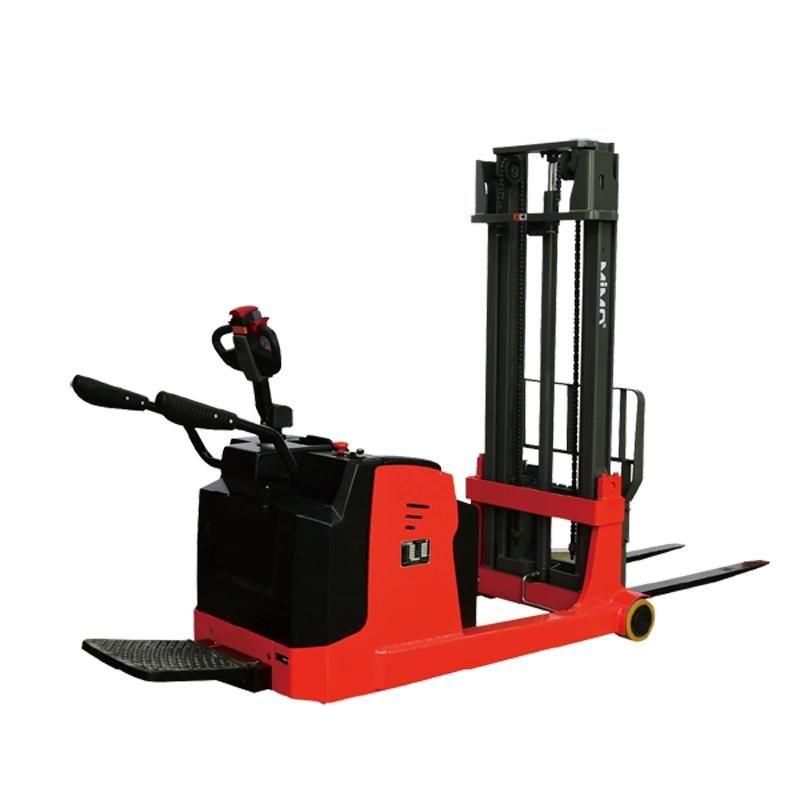

New small 1 ton electric pallet truck with good stabilityProduct details1. AC motor without brush, maintenance free

2.5 fulcrum low center of gravity design, good stability;

3. With ramp anti-sliding function, reverse braking and emergency braking ensure safety;

4. When installing the wing, when the wing is lowered, the driving speed of the vehicle is reduced by 30%-40%, which increases the safety;

5. Removable pedal design, it is more convenient to replace the accessories;

6. Turn the speed limit to prevent the vehicle from turning too fast;

7. It has a descending buffer function. When the fork is less than a certain height from the ground, it will automatically decelerate and effectively protect the cargo.







Brand		MIMA	MIMA	MIMA	MIMA
Model		MBB1516	MBB1525	MBB1530	MBB1535
Power type		Battery	Battery	Battery	Battery
Operation type		Stand on	Stand on	Stand on	Stand on
Service weight(incl. battery)	kg	1810	1890	1920	1950
Rated capacity	kg	1500	1500	1500	1500
Load center	mm	500	500	500	500
Lift height	mm	1600	2500	3000	3500
Fork size	mm	1070*100*35	1070*100*35	1070*100*35	1070*100*35
Front overhang	mm	100	100	100	100
Turning radius	mm	1820	1820	1820	1820
Max. gradeability	%(tanθ )	5/8	5/8	5/8	5/8
Driving speed(load,unload)	km/h	4/5.8	4/5.8	4/5.8	4/5.8
Lifting speed(load,unload)	mm/s	80/110	80/110	80/110	80/110
Lowering speed(load,unload)	mm/s	120/140	120/140	120/140	120/140
Brake type		Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic
Steering system		EPS	EPS	EPS	EPS

Why choose us

BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO., LTD.
 Founded in 1994, BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD is located in Hefei, Eastern of China. As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions. We have passed not only ISO9001:2008, ISO14001:2004 and CE certifications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise".

Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.

As our logo, MiMA has the deep meaning: "Minimum Space, Maximum Benefit", we believe that urban logistics is a mega trend, that needs new, smart and saving space solutions, we have those solutions already today.

Owing to 100 national service networks and dozens of foreign dealers, we promise customers with competitive prices and perfect after-sales service.

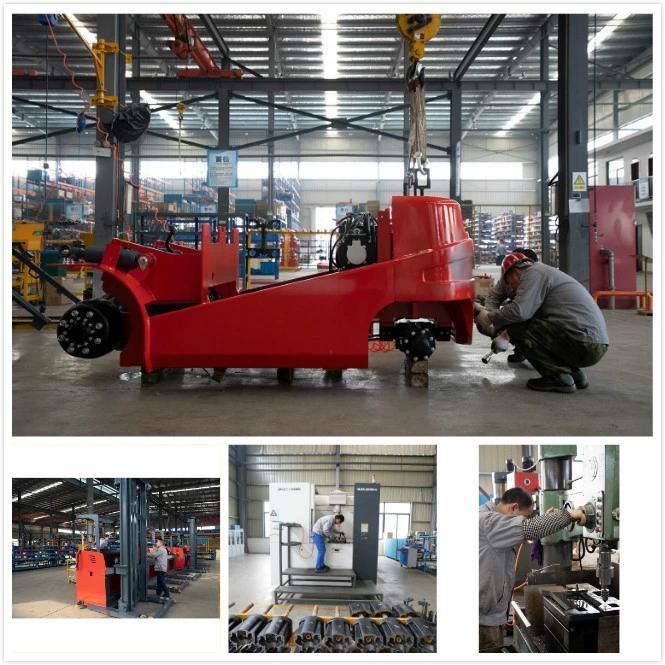

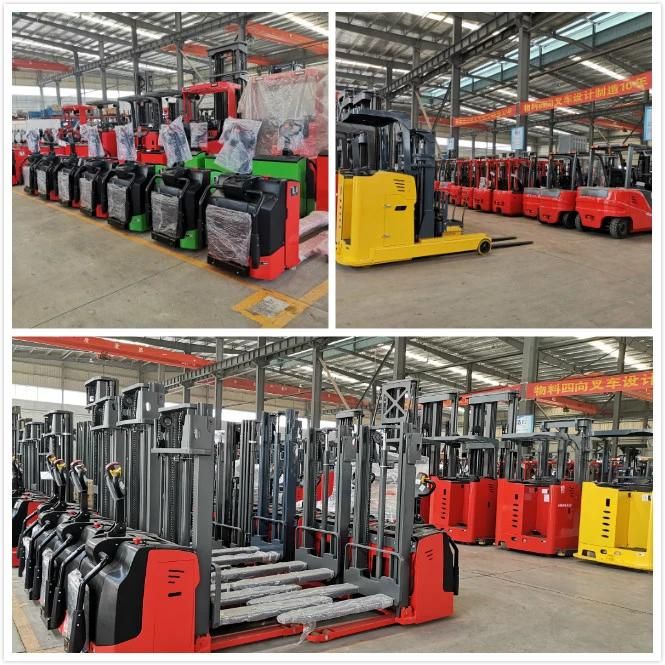

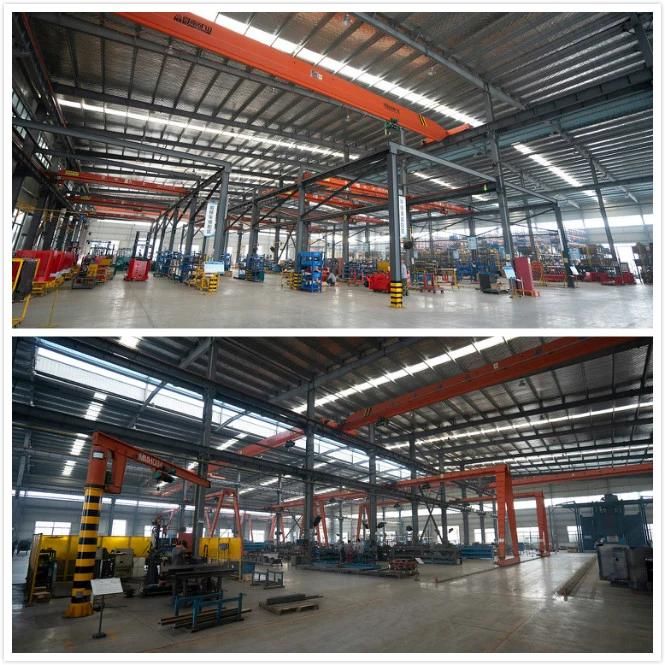

Our workshop and warehouse



Many of our models are in stock, for more details please feel free to contact us.

Exhibition
