Strong Multi-Function Small Telescopic Handler (HQ915T) with Ce

Weifang Haiqin Top Machinery Co., Ltd.
  • After-sales Service：24 Hours Every Day of Technology and Parts Service
  • Warranty：12 Months
  • Cab Location：Adjustable
  • Type：Diesel Forklift
  • Power：Diesel Engine
  • Load Capacity：1T - 5T

Base Info

  • Model NO.：HQ915T
  • Fuel：Diesel
  • Load center：>500mm
  • Lift height：3000~5000mm
  • Condition：New
  • Max Lift Height：4.6m
  • Loading Weight：1.5 Ton
  • Egnine：Euro III , Yanmar , Perkins
  • Transport Package：2 Units in a Hq40 Container
  • Specification：CE, ISO, SGS, ROPS&FOPS
  • Trademark：Haiqin
  • Origin：Shandong, China
  • HS Code：84295100
  • Production Capacity：8000 Units , Year

Description

Basic Info.

Model NO. HQ915T Fuel Diesel Load center >500mm Lift height 3000~5000mm Condition New Max Lift Height 4.6m Loading Weight 1.5 Ton Egnine Euro III / Yanmar / Perkins Transport Package 2 Units in a Hq40 Container Specification CE, ISO, SGS, ROPS&FOPS Trademark Haiqin Origin Shandong, China HS Code 84295100 Production Capacity 8000 Units / Year

Product Description

Haiqin Brand  Small Telescopic Handler  (HQ915T) with Ce and Euro 5 engine

Strong Multi-Function Small Telescopic Handler (HQ915T) with Ce

1, HQ915T  Small Telescopic Handler Standard Equipment:

China Yunnei or Xinchai498BT Engine(EuroIII Engine), Standard Bucket, Real Rops & Fops Cabin, Quick Hitch, Joystick Handle, Comfortable high quality Seat, Adjustable Steering Wheel, 23.5/70-16 Agricultural Tyre, Wheel-reducer Axle, Disc Brake, 130W Heater, Backward camera, Blinking Lamp Without Key, Free Service Spare Parts.

2, Details Specifications of HQ915T  Small Telescopic Handler

1.0 Engine Details
(1) Model: China YUNNEI or  Euro III Xinchai A498BPT
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 37KW (50.32H. P. )
(4) Rated Speed: 2200 r/p. Min (rpm)
(5) Fuel Consumption ratio in standard working condition: 230g/kw. H

2.0 Transmission System :Hydraulic converter + drive shaft + axles

3.0 Bucket
(1) BucketCapacity: 0.65 m3
(2) Bucket width: 1700mm
(3) Bucket type: Heavy-duty bolt on teeth
(5) Rated Load: 1500kg including attachment

4.0 Overall Dimensions
(1) Overall Length: 5920mm
(2) Overall Height: 2650mm
(3) Overall Width: 1800mm
(4) Max. Lifting Height: 4600mm

5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 4500mm
(3) Driving System: Hydraulic converter, four wheel drive
(4) Quick coupling system
(5) Joystick handle
(6) Self levering

6.0 Brake System
(1) Service Brake: Disc brake
(2) Parking Brake: Hand operated

7.0 Tyre: Model: 23.5/70-16
8.0 Wheelbase: 2400mm
9.0 Track: 1415mm
10. System pressure: 20Mpa; Hydraulic output: 70L/min
11, Operation weight:4400kg

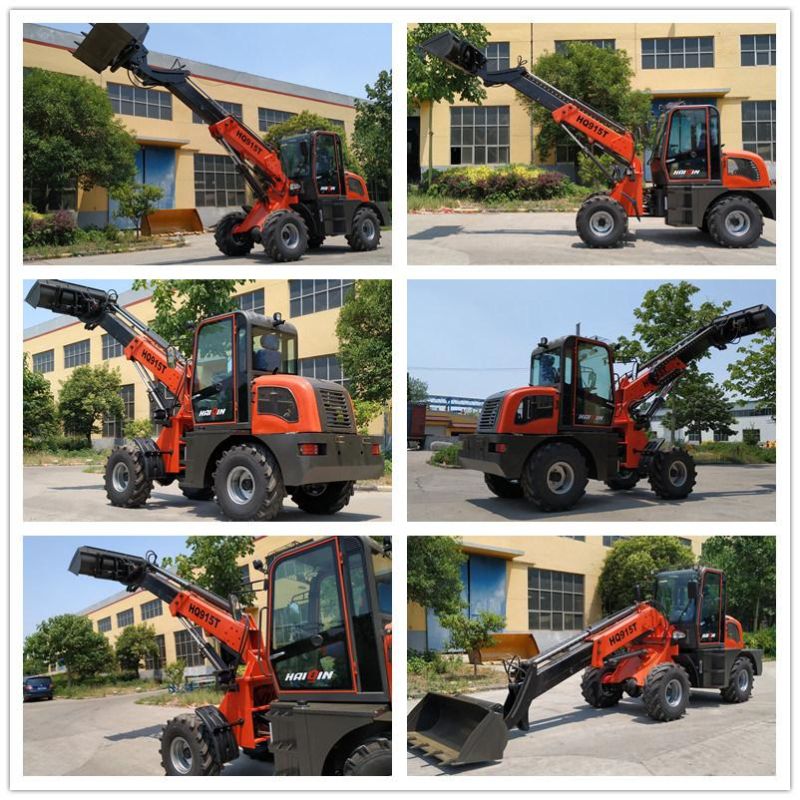

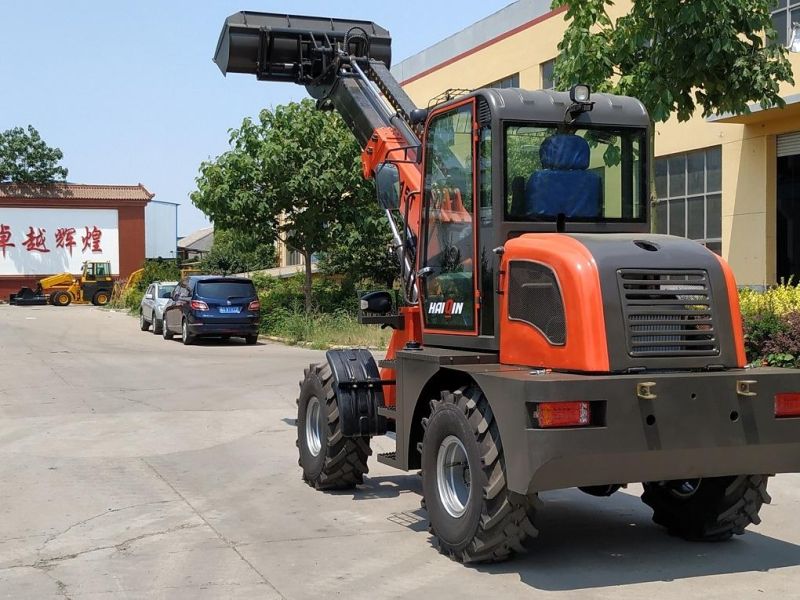

3, Details Photos of HQ915T  Small Telescopic Handler :
Strong Multi-Function Small Telescopic Handler (HQ915T) with Ce
Strong Multi-Function Small Telescopic Handler (HQ915T) with Ce

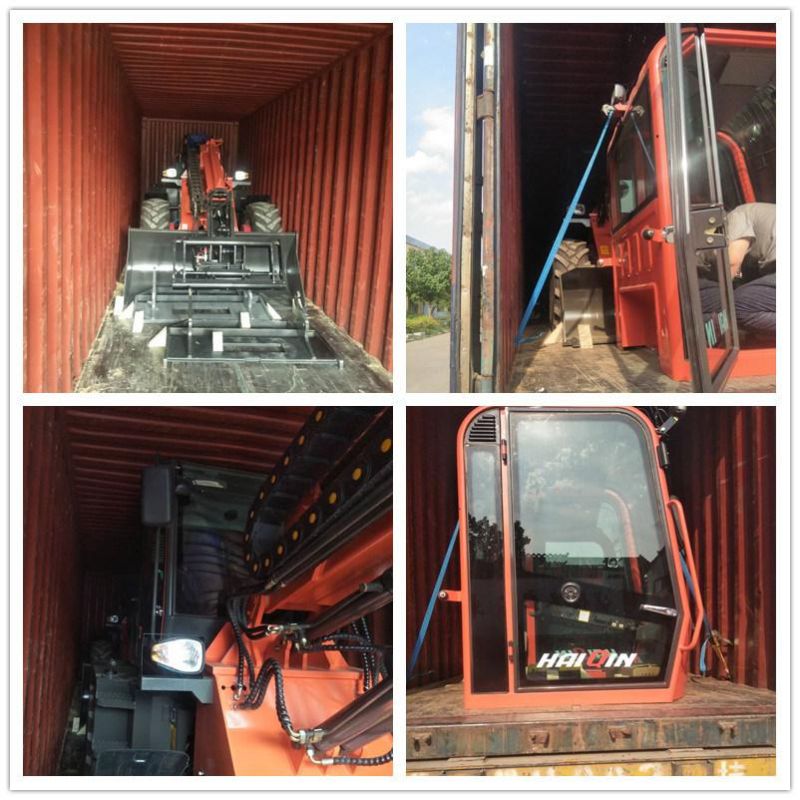

4, Professional Loading and Packing of HQ915T  Small Telescopic Handler :

Strong Multi-Function Small Telescopic Handler (HQ915T) with Ce

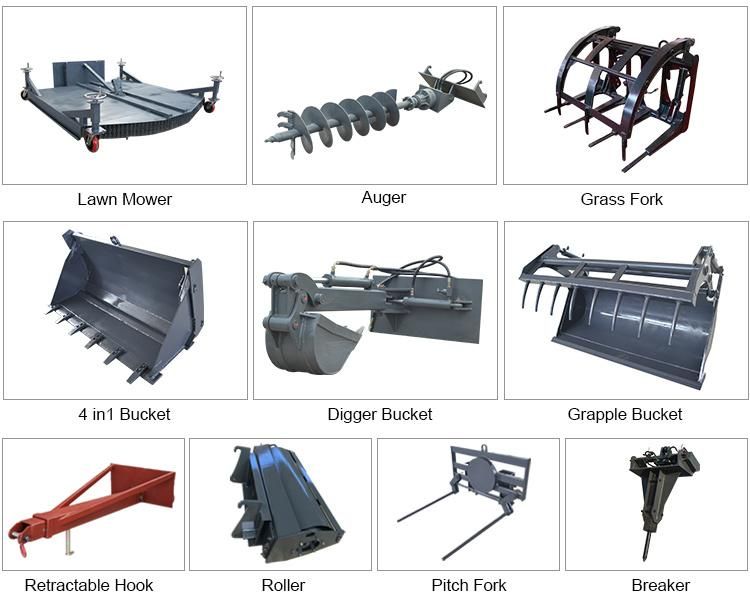

5, Optional Attachments for HQ915T  Small Telescopic Handler :

Strong Multi-Function Small Telescopic Handler (HQ915T) with Ce

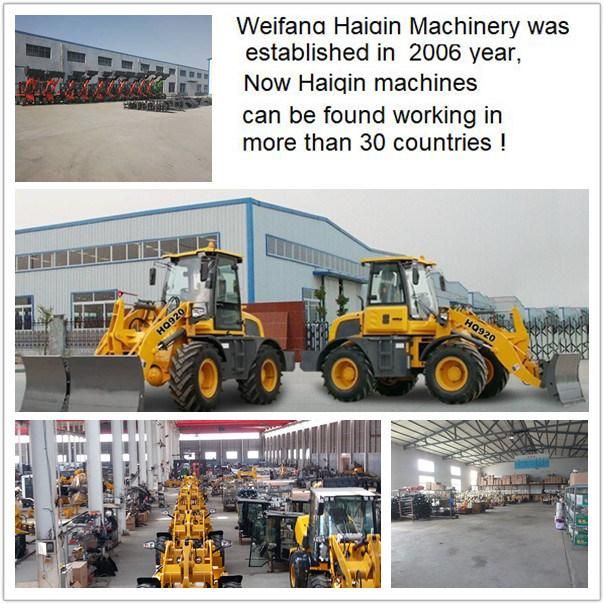

6, Factory introduction of Haiqin Machinery

Strong Multi-Function Small Telescopic Handler (HQ915T) with Ce

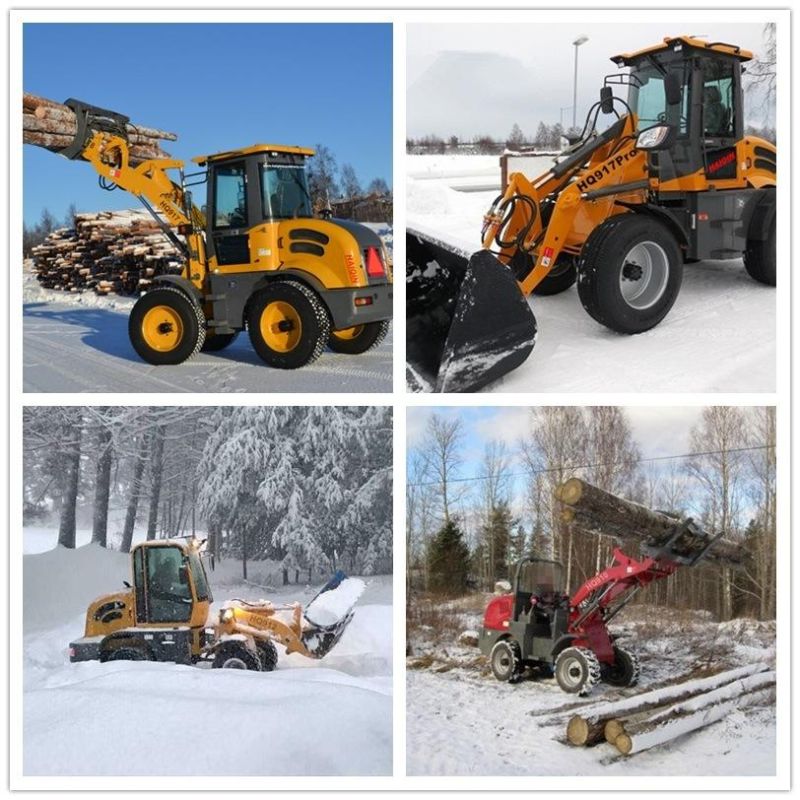

7, Working Case in the foreign countries of Haiqin Machinery' Loaders.

Strong Multi-Function Small Telescopic Handler (HQ915T) with Ce

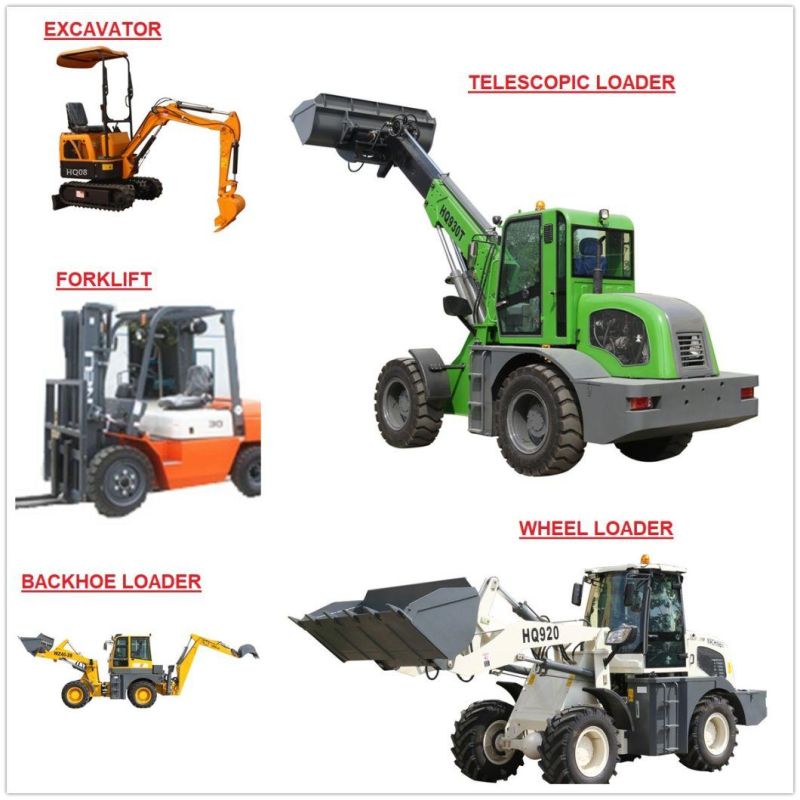

8, MORE PRODUCT CATEGORIES

Strong Multi-Function Small Telescopic Handler (HQ915T) with Ce

9, Warranty and Service.

HAIQIN loader has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN, and then better after-service will be guaranteed.

Contact us right now for more information!  Online 24 hours a day!
