• Model NO.：BD20
• Lift height：3000~5000mm
• Condition：New
• Controller：USA Curtis
• Tire：Polyurethane
• Mast：Duplex,Full Free Lift Mast
• Color：Customer Customized
• Battery Voltage/Rated Capacity：24V,285ah
• Motor：AC
• Charger：Shineng
• Battery：Torch
• OEM Serviece：Yes
• Handle：Germany Imported
• Transport Package：Container Shipment
• Specification：1325kg
• Trademark：SNSC
• Origin：China, Wuhu
• HS Code：84272090
• Production Capacity：15000pieces,Years

Characteristics1.1model DB20-R11.2drive battery1.3operator type stahngding 1.4load  capacity Q(kg)20001.5load centrec(mm)6001.6front overhangx(mm)7011.7wheel base Y(mm)1325weight2.1capacity(with battery)kg13402.2axle loading ,unladen(front/rear)kg1260/20802.3axle loading ,laden(front/rear)kg920/420wheels chassis3.1tyres type polyurethane3.2wheel size (front) φ230×753.3wheel size (rear) φ80×703.4additional wheels φ125×503.5wheels ,number front/rear (x = drven wheels) 1x+2/43.6track width (front)b10(mm)6203.7track width (rear)b11(mm)500dimentions 4.1ciosed mast heighth1(mm)20304.2lifting heighth3(mm)30004.3height ,mast extendedh4(mm)35504.4height of tiller in driving position min/maxh14(mm)1042/14104.5height ,fork loweredh13(mm)904.6lengthl1(mm)20544.7length to face of forksl2(mm)9044.8widthb1(mm)8504.9fork dimentions s/e/l(mm)60/185/11504.10width across forksb5(mm)6854.11ground clearance centre of wheelbasem2(mm)294.12aisel width,pallet 1000x1200(1200crossways)Ast(mm)25044.13aisel width,pallet 800x1200(1200lengthways)Ast(mm)24374.14turning radius Wa(mm)1598Dimensions5.1travel speed ,laden/unladenKm/h5/5.55.2lifting  speed laden/unladenm/s0.08/0.125.3lowering speed , laden/unladenm/s0.13/0.185.8max.grade ability, laden/unladen%4/105.1service brake electromagneticmotor6.1drive motor power kW1.5(AC)6.2lift motor powerkW3(DC)6.4battery voltage/rated capacityV/Ah24/2856.5battery weightkg260others8.1type of dirve control  AC8.2soundlevel at the driver's sear according to DIN12053dB(A)70
OUR MAITRMANCE PLANMandatory maintance timeThe first  mandatory maintanceThe second  mandatory maintanceThe third  mandatory maintanceThe fourth  mandatory maintanceThe fifth  mandatory maintanceThe sixth  mandatory maintanceRunning time50hours200 hours500 hours800 hours1100 hours1400

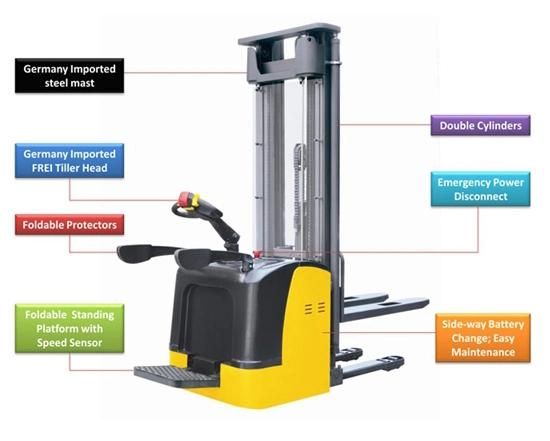

PRODUCT DESCRPTIONS



Performance

Robust Structure;

Highly specialized drive and hydraulic system ensure excellent driving;

 Low-noise and durable hydraulic unit,high quality cylinder as well as hose ensure high reliability of hydraulic system;

 AMP connector and durable electric wires greatly reduce malfunctions of components.

Straddle Chassis option offers stability of high stack operation.

Safety

Safe hydraulic design prevents mast from falling down abruptly when oil pipes cuts off.

Belly button prevents truck from hitting operator

By simply pressing emergency disconnector,power supply will be immediately interrupted.

Multiple lifting limited switch ensures travel safety.

Truck automatically switches to low speed mode,when lifting height is higher than setting height.

 Anti-rolling back braking device ensures trucks don't roll back on ramps

Operation

Ergonomic tiller head for effortless and comfortable operations.

Tiller with long arm for smooth steering.

Compact chassis design offers smallest turning radius needed.

Side operating ensures excellent visibility.

On-board Charge.

Maintenance

 Maintenance-free Battery

Battery display indicator with hour meter,reminds operator of charging on time(optional).

Easy Maintenance-detachable rearpanel.

Self-Diagnostics signal on the digital disply allows easy trouble-shooting.

Easy Accessof hand Set.

 Low-Voltage Cut-off Protection.



Packing & Delivery
1.5tons electric forklift will use container shipment or Ro-Ro shipment to delivery;
one 20GP container can take 4pcs 1.5tons electric forklift;
one 40GP container can take 6pcs 1.5tons electric forklift.
Chose us
Long history and stable factory background:
A history of over 24 years;
Technology ranks NO.1 in China;
Annual out put nearly 30,000 units.
High-quality and reliable products:
Upgrades for thousands of times to meet the demands of million of customers all over the world;
Three series to choose;
Other warehouse equipment to choose;
Better sale service of after-sale service:
Active and professional salesperson;
Warranty period of 1 years or 2000hrs, which occurs first;
Dispatch professional engineer to arrange training courses or after sale maintenance if necessary.
