• Model NO.：CQD20SA
• Fuel：Electric
• Load center：500mm
• Lift height：>5000mm
• Condition：New
• Name：3 Wheel Electric Forklift
• Center Distance：500 mm
• Axle Unloading,Laden Front/Rear：1625,1997mm
• Axle Loading,Laden Front/Rear：4469,981mm
• Tyre Size,Front：200,50-10
• Tyre Size,Rear：140,55-9
• Height of Mast,Lowered：3000--6200mm
• Height,Mast Lowered：2000-2660mm
• Height,Mast Extended：3500-6600mm
• Fork Dimension：40,120,1070mm
• Overall Width of Fork：1130mm
• Turning Radius：1652mm
• Lifting Speed,Laden/Unladen：250,420mm,S
• Battery Voltage/Rated Capacity：48,560(640)Ah
• Service Weight(with Battery)：3450kg
• Transport Package：One Set Pack in One Pallet
• Specification：3100 mm*1130 mm*2095mm
• Trademark：MOVMES
• Origin：China, Ningbo
• HS Code：8427109000
• Production Capacity：100 Sets,Month

Main Configuration1.) 48V FULL AC POWER2.) INMOTION CONTROLLER3.) MULTIPLE VAVLE4.) SOLID TYRES5.) DUAL TRACTION MOTOR6.) Strobe light1.6Ton
48V450AH LEAD-ACID BATTERY (ROLL OUT)
48V50A CHARGER1.8Ton
48V490AH LEAD-ACID BATTERY (ROLL OUT)
48V65A CHARGER2.0Ton
48V560AH LEAD-ACID BATTERY (ROLL OUT)

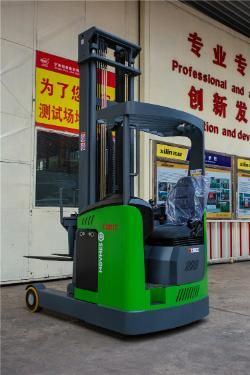

48V65A CHARGERCQD15 Narrow Aisle Mast fork reach truck
1.5ton with 5000-8000mm lifting height,
CURTIS controller,48V400AH LEAD-ACID BATTERYFBR,4 wheel electric forklift
1.6-3.5 ton load capacity,3000--6000mm lifting height ,German imported H type driving axle ;Dual-controller design for driving and steering /lifting ;options Joy stick arm rest integrated control; Different capacity of lead-acid battery and lithium battery. CPD15S-E,3 wheel electric forklift
1.5ton with 2500-5600mm lifting height ,
24V AC power,INMOTION controller,24V320Ah lead-acid battery

Packing and Delivery
MOVMES according to the delivery requirements of each customer, we carefully package each TRUCK. Before delivery, we will take photos and videos, and only after getting the customer's approval will we send them away.

Usually MOVMES producing time is 30-45 days after we receive the advanced 30% payment.

High praise from customer
CE Certification

ISO9002:1995

ISO9001:2008(Quality management system)

ISO14001:2004(Environmental management system)

OHSAS18001:2007(Occupational Health and Safety management system)

We got TUV/GS/CE certificate for hand pallet truck early in 1991,who was the first manufacture in China.For material handling equipment of Manual Lift Trucks and Electric Lifting Trucks,up to 90% products have approved CE certificate from TUV,our products have approved CE standards of ISO3691-1  EN1175-1    EN16307-1

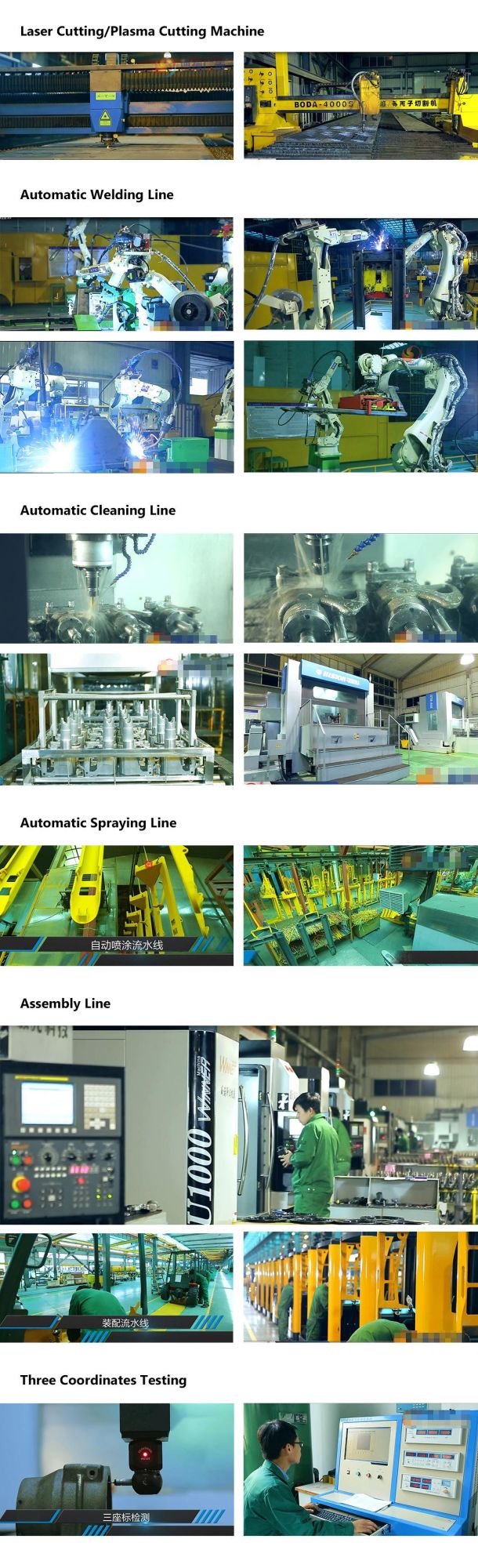

Factory strength
36 year's experience8 international approvals150,000m² factory area1,200 employees188 professional mechanical technicians77 senior engineers500 types warehouse equipment157 countries and regions exported to
FAQ

Q1: How about the continuous working time for the electric truck series ? And How long time to charge the battery full ?

A1: MOVMES battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 3--6 hours to charge the battery.



Q2: What's the specification of the chargers of CQDH18C?

A2: Our chargers 36V700AH Lead-acid battery. Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.



Q3: Can MOVMES provide customized products? OEM or ODM products?

A3: Yes, Since 1985,Our factory is always professionally in developing and producing warehouse logistic equipment ,such as hand/electric pallet trucks,manual /electric slackers, reach trucks, forklifts and so on.We do OEM for Toyota/ Jungheinrich/ Clark / Hyster / Yale etc.



Q4: How long is the Warranty for MOVMES product?

A4: MOVMES provides one year warranty.During the warranty period we provide wearing parts for free which are damaged by non-human.


                                  Recruit MOVMES Agent all over the world
Under the current international environment, the electric industry will definitely develop vigorously. As a the new brand in the warehousing and logistics industry, MOVMES has the strength factory and high-end products as the main support power. Now we are looking for agents all over the world to expand our brand In the market, please give us a chance to cooperate, you will get the same quality products as the world's famous brands.
