• Model NO.：CDDR15-III
• Fuel：Electric
• Load center：500mm
• Lift height：3000~5000mm
• Condition：New
• Name：1 Ton 1.5 Ton Electric Forklift Fork Lift
• Center Distance：500 mm
• Wheel：PU
• Wheel Dimension,Front：Dia 250X70 mm
• Loading Wheels：Dia80*70 mm
• Height of Mast,Lowered：2087,1837,2087,2054,2214,2414mm
• Max.Height of Mast,Extended：1600,2500,3000,4500,5000,5600mm
• Height,Lowered：90 mm
• Overall Length：1965mm
• Fork Dimension：60,170,1070(1150) mm
• Overall Width of Fork：820 mm
• Turning Radius：1525mm
• Lifting Speed,Laden/Unladen：0.09,0.16m,S
• Battery Voltage/Rated Capacity：24V200ah
• Service Weight(with Battery)：760,810,835,1185,1205,1225 Kg
• Transport Package：One Set Pack in One Pallet
• Specification：1950 mm*820 mm*2187 mm
• Trademark：MOVMES
• Origin：China, Qingdao
• HS Code：8427109000
• Production Capacity：1000 Sets,Month

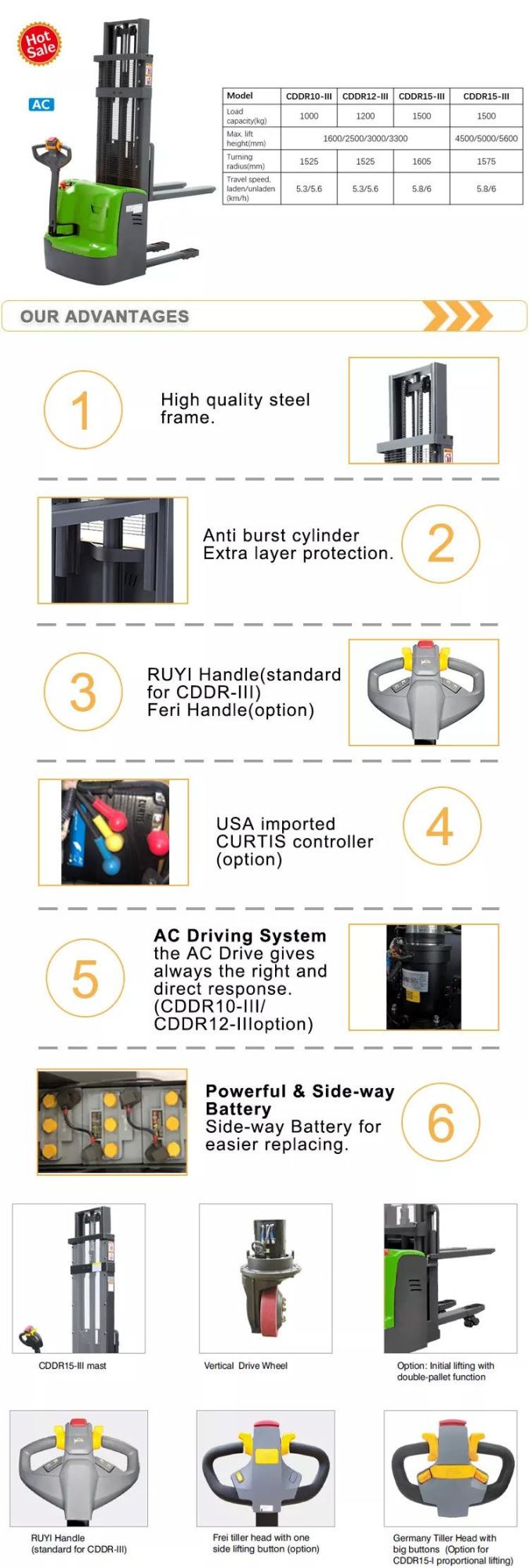

Main Configuration1.24V AC POWER2.CURTIS CONTROLLER3.RUYI TILLER4.24V200AH LEAD-ACID BATTERY5.24V30A CHARGEROptionsFREI TillerStraddle legs24V210AH lead-acid battery24V240AH lead-acid batteryLithium Battery 24V125AH
Lithium Charger 24V50AParameterCDDR15
1.5ton with 1600-3000mm lifting height,
DC motor ,CURTIS controller,24V,80Ah GEL batteryCDDK20
2.0ton with 25000-5600mm lifting height ,
24V AC power,CURTIS controller,24V300Ah lead-acid battery CDD10R19 FULL-ELECTRIC
1.0ton with 1600-3500mm lifting height.
DC power,CURTIS controller, 24V105AH GEL BATTERY

Packing and Delivery
MOVMES according to the delivery requirements of each customer, we carefully package each TRUCK. Before delivery, we will take photos and videos, and only after getting the customer's approval will we send them away.

Usually MOVMES producing time is 30-45 days after we receive the advanced 30% payment.

High praise from customers
CE Certification

ISO9002:1995

ISO9001:2008(Quality management system)

ISO14001:2004(Environmental management system)

OHSAS18001:2007(Occupational Health and Safety management system)

We got TUV/GS/CE certificate for hand pallet truck early in 1991,who was the first manufacture in China.For material handling equipment of Manual Lift Trucks and Electric Lifting Trucks,up to 90% products have approved CE certificate from TUV,our products have approved CE standards of ISO3691-1  EN1175-1    EN16307-1

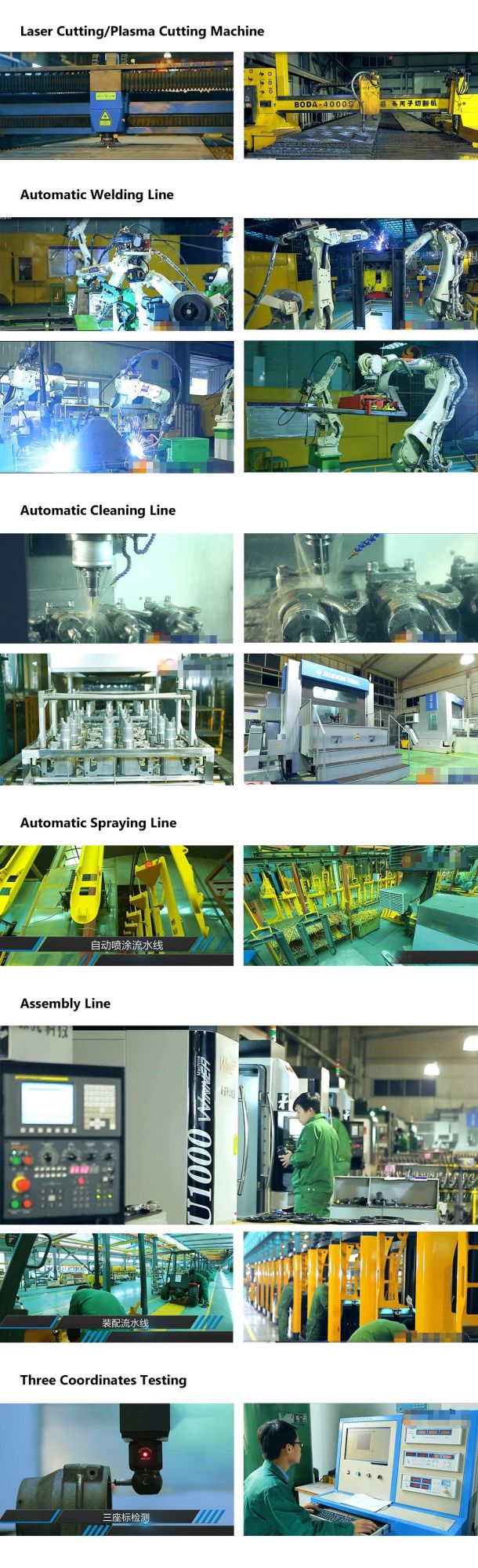

Factory strength
36 year's experience8 international approvals150,000m² factory area1,200 employees188 professional mechanical technicians77 senior engineers500 types warehouse equipment157 countries and regions exported to
FAQ

Q1: How about the continuous working time for the electric truck series ? And How long time to charge the battery full ?

A1: MOVMES battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 3--6 hours to charge the battery.



Q2: What's the specification of the chargers of CDDR15-III?

A2: Our chargers 24V200Ah Lead-acid battery. Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.



Q3: Can MOVMES provide customized products? OEM or ODM products?

A3: Yes, Since 1985,Our factory is always professionally in developing and producing warehouse logistic equipment ,such as hand/electric pallet trucks,manual /electric slackers, reach trucks, forklifts and so on.We do OEM for Toyota/ Jungheinrich/ Clark / Hyster / Yale etc.



Q4: How long is the Warranty for MOVMES product?

A4: MOVMES provides one year warranty.During the warranty period we provide wearing parts for free which are damaged by non-human.


                                  Recruit MOVMES Agent all over the world
Under the current international environment, the electric industry will definitely develop vigorously. As a the new brand in the warehousing and logistics industry, MOVMES has the strength factory and high-end products as the main support power. Now we are looking for agents all over the world to expand our brand In the market, please give us a chance to cooperate, you will get the same quality products as the world's famous brands.
