• Model NO.：CTY-1000
• Lift height：1600mm
• Condition：New

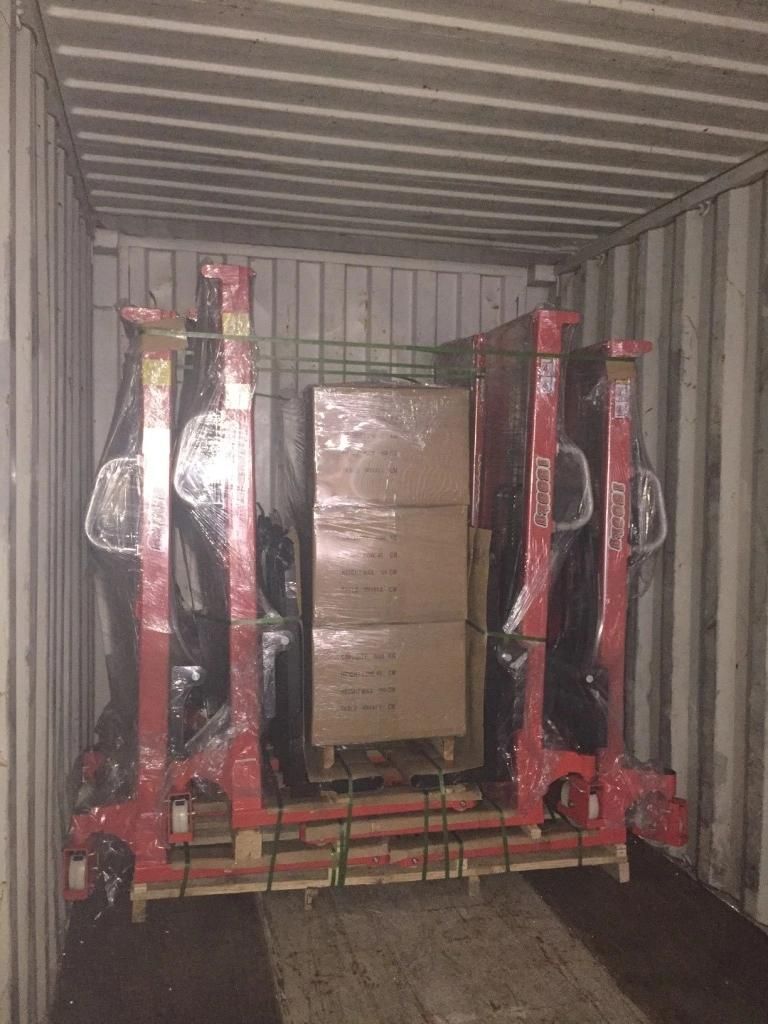

• Transport Package：Wooden Case
• Specification：1.35*0.72*2m
• Trademark：Bafang
• Origin：Jining, China
• Production Capacity：500set,Month

Basic Info.

Model NO. CTY-1000 Lift height 1600mm Condition New Transport Package Wooden Case Specification 1.35*0.72*2m Trademark Bafang Origin Jining, China Production Capacity 500set/Month

Product Description

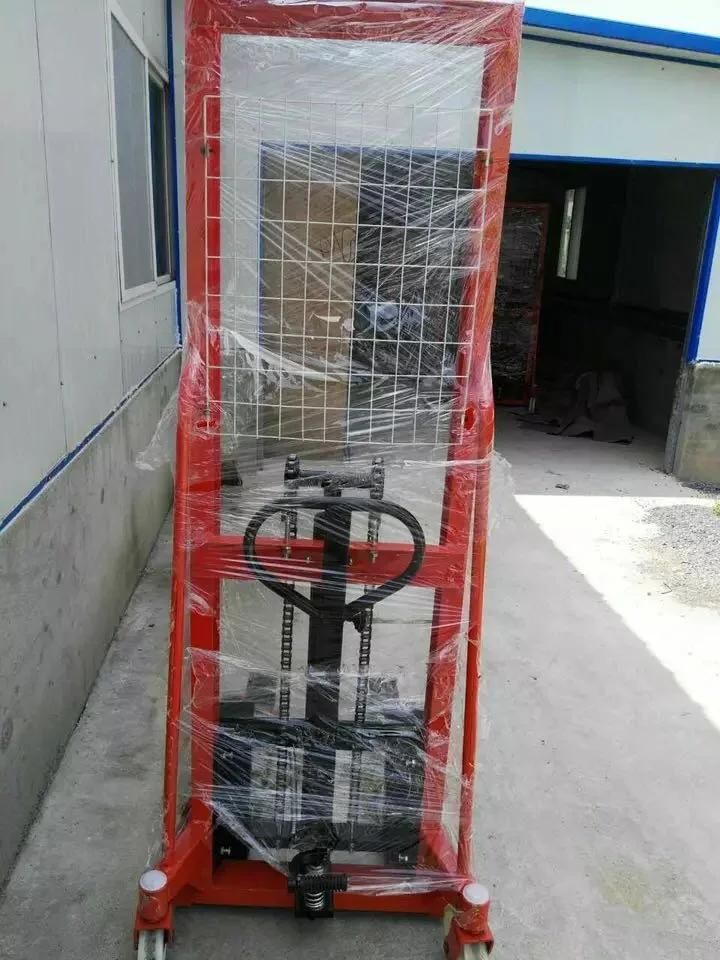

The hydraulic hand stacker structure principle

• The hydraulic consists of three parts:the elevating cylinder and controlling parts,the elevating arm and chain-wheel parts,the gantry and back-wheel parts.
• The lift lifts the weights with a manual or pedal hydraulic device,and loads weights with manual pull and push at a low position.
• The oil-reflow valve is placed in the hydraulic device.
• The descending speed is controlled through the pedal,ensuring the correct action of the hydraulic system and safety.

• Item	Unit	CTY-1000
  Capacity	kg	1000
  Min fork height	mm	80
  Max fork height	mm	1600
  Overall Height	mm	1940
  Adjustable size of fork	mm	220-580
  Fork length	mm	900
  Overall Width	mm	730
  Overall Length	mm	1350

•



•
