• Load center：600mm
• Lift height：120mm
• Condition：New
• Weight：286kg
• Fork Size：1150mm*160mm*47mm
• Color：Customize
• Lifting Height (Standard)：120mm
• Turning Radius：1460mm
• Pump Stations：24V,0.8kw
• Drive Motor：24V,0.75kw
• Battery：2*12V,65ah
• Total Length(Pedal Down)：1620mm
• Transport Package：Container
• Specification：1620*685*1174mm
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：800sets,Year

modelunitFEP15Rated loadkg1500Fork widthmm560/685Fork lengthmm1150Minimum fork heightmm85Maxmum fork heightmm200Turning radiusmm1460Load Centermm600Battery 24v/20AhWeight(without battery)kg220(170)Total length(pedal down)mm1620Overrall widthmm560/685Total heightmm1174


Features
1.Safety: Auto Curve Speed-reduced function;
2.Anti-roll back prevents uncontrolled traveled speed or roll-back on ramps when loading and unloading;
3.The small ground clearance, to protect the operator;
4.High-strength frame design, suitable for tough workplaces, ensures longer service life;
5.Vertical motor ensures convenience inspection and maintenance of motor and brake, provide much better maintainability than horizontal motor.

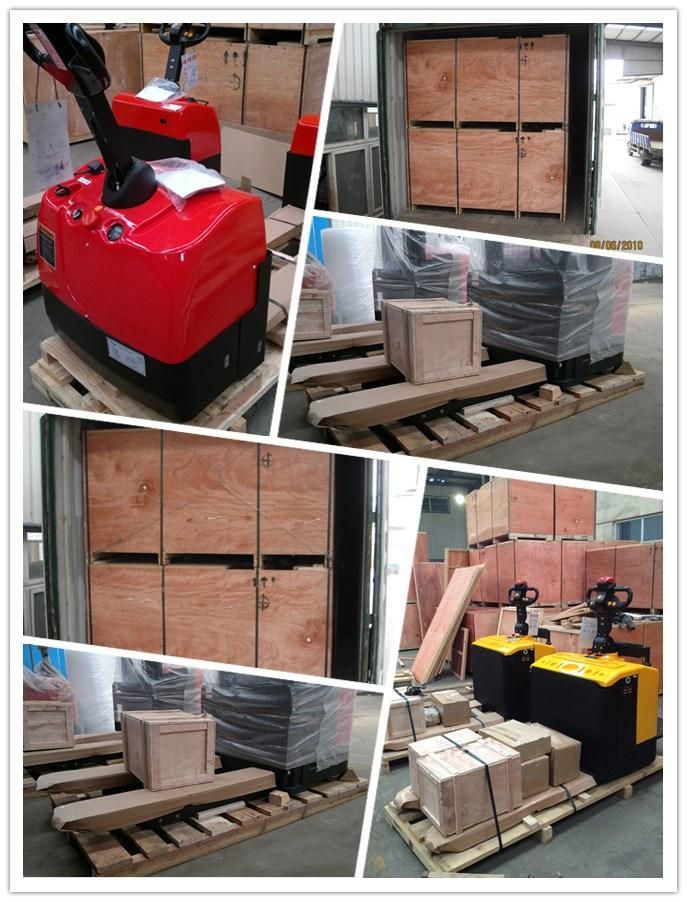

Packaging and shipping

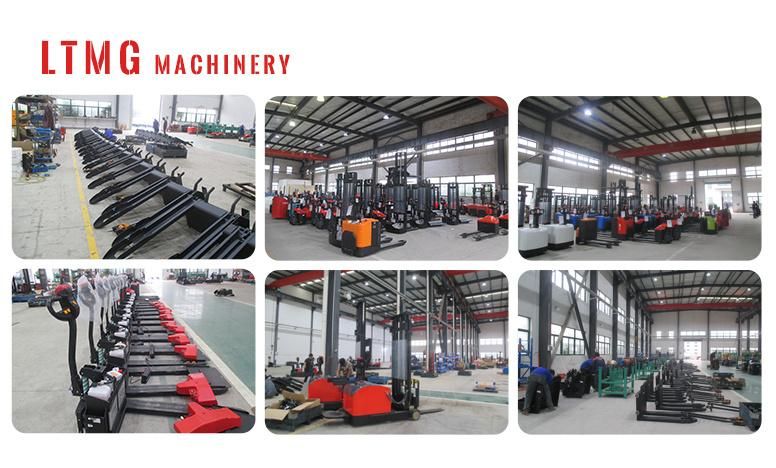

LTMG Factory





LTMG Clients




After sales service

LTMG always treat after-sale as important as sale.Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with 1 year or 2000 working hours(which occurs first)period quality warranty.
Detail clauses and policies please check our website and product certificate.
