• Model NO.：ES16-16RA
• Condition：New

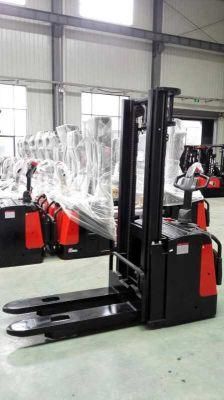

• Name：1600kg Electric Stacker(Es16-16ra)
• Drive Unit：Battery
• Fork Size：60, 190, 1150 mm
• Tyres：Polyurethane Wheels
• Overall Length：2530mm
• Overall Width：860mm
• Battery Voltage/Capacity：24V,280ah
• Outside Turning Radius：1613mm
• Structure Weight：1400kg
• Transport Package：Seaworthy Packing
• Specification：CE, SGS, ISO
• Trademark：SHYTGER
• Origin：Shanghai, China
• HS Code：84271090
• Production Capacity：3000units,Year

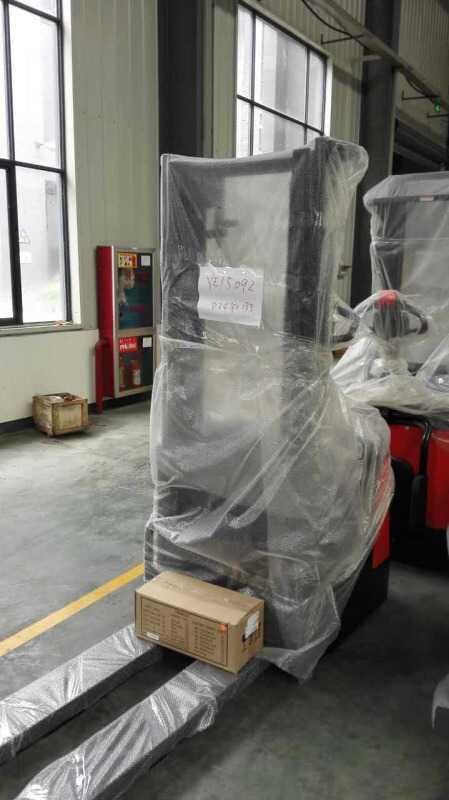

Basic ParameterItem No:                       ES16-16RAPress capacity:            1600kgControl system:            CURTISBattery voltage:             24V/ 280AhLoad center:                  600mmOperate type:                Rider stand  Forks dimension:           60/ 190/ 1150                     Overall Dimension:         2525*860*2019mmStructure Weight:           1400kgHS Code:                       84271090Some spare parst free for you.Attention:1.Max lift height can be 5500mm available.2.Local voltage can be customized.2.Blue light can be added like forklift.3.Spare parts available.4,All colors are available.Remarks:1.Trade terms:FOB,CFR,CIF are available.2.Delivery time:within 25 received payment.3.Packing:Pallet packing,spare parts is packed in a box.4.Warranty:2000 working hours or 12month.

SHYTGER1.2Model designation ES14-14RASES16-16RAST1.3Drive unit BatteryBattery1.4Operator type Rider standRider stand1.5Load capacityQ (kg)140016001.6Load centerc (mm)6006001.8Load distancex (mm)7137131.9Wheelbasey (mm)13941394 Weights2.1Service weight (Incl. battery)kg126012902.2Axle loading, laden operator/load sidekg830/ 1830905/ 19802.3Axle loading, unladen operator/load sidekg805/455820/470 Wheels, Chassis3.1Tyre type PU/ PUPU/ PU3.2Tyre size, operator sidemm230x75230x753.3Tyre size, load sidemm85x7085x703.4Balance wheels (dimensions) 130x60130x603.5Wheels, number operator/load side
(x=drive wheels) 1x+ 2/ 41x+ 2/ 43.6Tread, operator sideb 10  (mm)6346343.7Tread, load sideb 11  (mm)380380 Dimensions4.2Height, mast loweredh 1  (mm)2020/2170/23202020/2170/23204.3Free lifth 2  (mm)1001004.4Lift heighth 3  (mm)3000/3300/36004500/4800/50004.5Height, mast extendedh 4  (mm)352935294.9Height of tiller arm in operating position,
min/ maxh 14  (mm)1007/ 14121007/ 14124.15Fork height, loweredh 13  (mm)85854.19Overall lengthl 1  (mm)2003/ 25252003/ 25254.20Length to face of forksl 2  (mm)8608604.21Overall widthb 1 / b 2  (mm)8508504.22Fork dimensionss/ e/ l (mm)60/ 190/ 115060/ 190/ 11504.25Outside fork width, minimum/ maximumb 5  (mm)5705704.32Ground clearancem 2  (mm)30304.33Aisle width, 1000×1200 pallet crosswaysAst (mm)252125214.34Aisle width, 800×1200 pallet lengthwaysAst (mm)245424544.35Outer turning radiusWa (mm)16131613 Performance5.1Travel speed, laden/ unladenkm/ h7.4/8.07.4/8.05.2Lifting speed, laden/ unladenm/ s0.10/0.180.10/0.185.3Lowering speed, laden/ unladenm/ s0.17/0.180.17/0.185.8Maximum gradeability,
laden/ unladen S 2  5 min.%8/ 168/ 165.10Service brake ElectromagneticElectromagnetic Drive6.1Drive motor rating S 2  60 min.kW1.51.56.2Lift motor rating at S 3  15%kW336.4Battery voltage/ rated capacity (5h)V/ Ah24/ 23024/ 2806.5Battery weight (with box)kg210240 Battery compartment dimensions l/ w/ hmm815/ 208/ 630815/ 208/ 630 Battery type Industry batteryIndustry battery Others8.1Type of drive control AC  ZAPIAC  ZAPI8.4Sound level at operator's eardB (A)74748.5Steering Electric power steeringElectric power steering
T/T,L/C,Western Union,Paypal etc.
Pls send your inquiry in the below for quotation,Click "Send" now !



Shanghai Hytger Industry & Trade Co., Ltd
