• Model NO.：FD25
• Lift height：3000mm-6000mm
• Condition：New
• Engine：China , Japan for Choice
• Mast：Duplex,Full Free Lift Mast
• Tire：Pneumatic Tire
• Transmission：Automatic Transmission
• Attachements：Side Shifter, Clamps, Positioner Ect
• Options：LED Light, Lux Seat, Fan, Solid Tire Ect
• Color：Customer Customized
• OEM：Yes
• Transport Package：Container Shipment
• Specification：3750kg
• Trademark：SNSC
• Origin：China, Wuhu
• HS Code：84272090
• Production Capacity：15000pieces,Years

SpecificationsUnitFD251CharacteristicsPower diesel2Rated Capacitykg25003Center of loadmm5004Lifting heightmm30005Free lifting heightmm1356Forks L×W×Hmm1070x122x407Tilt Forward/Backward.6/128Min.turning radiusmm22409Min.ground clearance(Mast)mm11010Overhead guard heightmm212011Height from seat to overhead guardmm94312Front overhangmm47313PerfMax.traveling speed(loaded)km/h1914Max.lifting speed(loaded/empty)mm/s470/51015Drawbar pull/GradeabilitykN/%17/2016DimensionsOverall length (without fork)mm257017Overall widthmm117518Mast lowered height mm199019Mast extended heightmm400020ChassisTireFront 7.00-12-12PR21Rear 6.00-9-10PR22Wheelbasemm160023Tread widthFront/Rearmm970/97024Curb weightNone-loadkg375025PowertrainBatteryVoltage/CapacityV/Ah12/9026EngineModel XC490BPG27Rated powerkw/r.p.m37/265028Rated torqueNm/r.p.m148/200029Cylinder amount 430Bore×Stroke mm90x10031Displacement 2.5432Fuel tankL6033Transmission 1/1 automatic transmission34Working pressureMPa17.5
Our Products

I. Diesel forklift range from 1.5 to 16ton;(FD15/18/20/25/30/35/40/45/50/60/70/80/100/160)
II. Battery forklift range from 1.5 to 3.5ton;(FB15/20/25/30/35)
III.LPG and gasoline forklift range from 1.5 to 3.5 ton;(FL15/20/25/30/35)
IV.warehouse equipment, like electric pallet truck, electric reach truck, electric stacker & electric trailer.(YB20,DB16,TB15)

Service

WARRANTY TIME:
The warranty period for forklift is 15 months or 2500 working hours begins from the forklift arrival date of oversea port, depends on which come first.

SPARE PARTS SERVICE:
We have free wearing parts to present you with the forklift.
Warranty period of Spare parts is 6 months, begins from 30 days after shipment.

MAINTENANCE SERVICE
Our products are all well-designed and strictly tested. If any maintenance problem you can not handle, we can also offer training and maintenance services in our factory field or at your site.Your requirements will be handled promptly and appropriately.

OEM SERVICE
With the authorization of the brand, we can OEM for our clients.

CUSTOMIZED SERVICE
We will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available.

VIP Solution

SNSC forklift can install different attachments to help your work, like paper roll clamp, side shifter, full free container mast, bale clamp, drum clamp, block clamp, fork positioner, tyre clamp, rotators, carton clamp, cabin, etc.

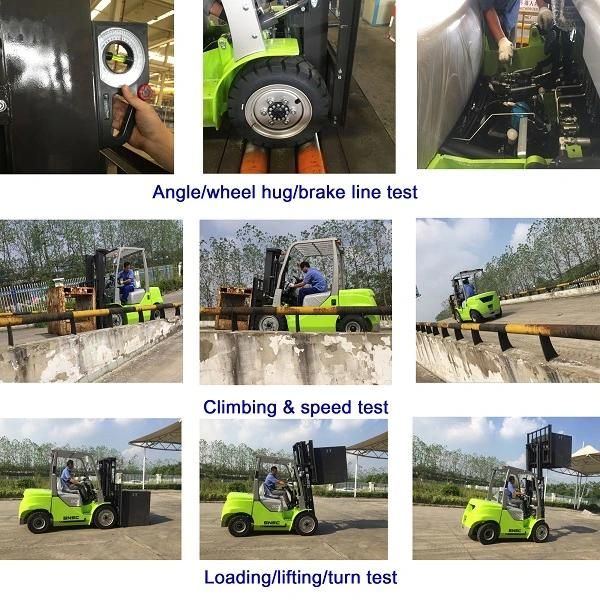

Quality Control


We use advanced equipments, eg: welding robot and others to realize over 95% automatic production line.Every forklift part is produced by ourselves, our products are all well-designed and strictly tested, We traite  every process from  prepare materials- structure-painting-assambly to delivery to make customer's satisfaction.
 Packing & Delivery
Covered Forklift In Container Shipping with Tool Box, Forklift Catalogue, Gloves and Forklift Operation and Maintenance Manuals, Fork Sleeves and Spare Parts together.

Packaging&Shipping 1*20'GP - 3 Units,     1*40'GP - 6 Units
