• Model NO.：FD30
• Lift height：3000mm-6000mm
• Condition：New
• Engine：China,Japan for Choice
• Mast：Duplex,Full Free Lift Mast
• Options：LED Light, Lux Seat, Fan, Solid Tire Ect
• Transmission：Automatic Transmission
• Attachements：Side Shifter, Clamps, Positioner Ect
• Color：Customer Customzied
• OEM：Yes
• Transport Package：Container Shipment
• Specification：4250kg
• Trademark：SNSC
• Origin：China, Wuhu
• HS Code：84272090
• Production Capacity：15000pieces,Years

SpecificationsUnitFD301CharacteristicsPower diesel2Rated Capacitykg30003Center of loadmm5004Lifting heightmm30005Free lifting heightmm1456Forks L×W×Hmm1070×125×457Tilt Forward/Backward.6/128Min.turning radiusmm26009Min.ground clearance(Mast)mm12010Overhead guard heightmm217011Height from seat to overhead guardmm48012Front overhangmm54513PerfMax.traveling speed(loaded)km/h2014Max.lifting speed(loaded/empty)mm/s470/52015Drawbar pull/GradeabilitykN/%18/2016DimensionsOverall length (without fork)mm282517Overall widthmm123018Mast lowered height mm206519Mast extended heightmm426020ChassisTireFront 28×9-15-12PR21Rear 6.50-10-10PR22Wheelbasemm180023Tread widthFront/Rearmm1000/97024Curb weightNone-loadkg425025PowertrainBatteryVoltage/CapacityV/Ah12/9026EngineModel QC490GP27Rated powerkw/r.p.m39/265028Rated torqueNm/r.p.m157/198029Cylinder amount 430Bore×Stroke mm90×10531Displacement 2.6732Fuel tankL7033Transmission 1/1 automatic transmission34Working pressureMPa17.5Mandatory maintance timeThe first  mandatory maintanceThe second  mandatory maintanceThe third  mandatory maintanceThe fourth  mandatory maintanceThe fifth  mandatory maintanceThe sixth  mandatory maintanceRunning time50hours200 hours500 hours800 hours1100 hours14
VIP SOLUTION

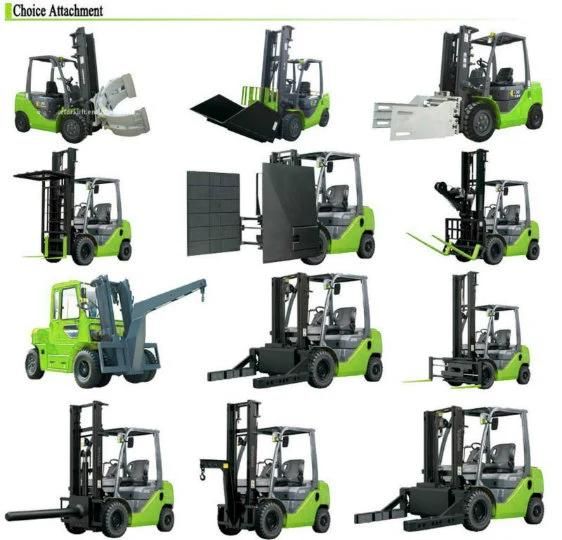

SNSC forklifters can install different attachments to help your work, like paper roll clamp, side shifter, full free container mast, bale clamp, drum clamp, block clamp, fork positioner, tyre clamp, rotators, carton clamp, etc.


PACKAGE AND DELIVERY



Covered Forklift In Container Shipping with Tool Box, Forklift Catalogue, Gloves and Forklift Operation and Maintenance Manuals, Fork Sleeves and Spare Parts together.

Forklift Warranty Time period for SNSC Forklift is 15 Months or 2500 Working Hours begins from the forklift arrival date of oversea port, deponds on which come first.
