China Hydraulic 7m 4.5 Ton Telescopic Handler Telehandler Xc6-4517K Best Price
Newindu Construction Engineering (Shanghai) Co., Ltd.- Cab Location:Adjustable
- Type:Telehandler
- Power:Diesel Engine
- Load Capacity:1T - 5T
- Fuel:Diesel
- Load center:>500mm
Base Info
- Model NO.:XC6-4517K
- Lift height:>5000mm
- Condition:New
- Spacification:6960*2500*2850mm
- Max Traction Force:70kn
- Rated Load:4500kg
- Transport Package:Nude Shipment
- Trademark:Newindu
- Origin:Jiangsu, China
- HS Code:8429521200
- Production Capacity:100 Pieces, Month
Description
Unit XC6-4517K Gross weight kg 13500 Engine power kW 82(CUMMINS)/74.9(DDE) Rated load kg 4500 Maximum lifting height mm 16700 Maximum forward reach mm 12600 Center distance of load mm 600 Luffing angle ° -4~73 Fork angle ° -90~18 Maximum traction force kN ≥70 Gradeability ° ≥25 Maximum traveling speed km/h 36 Turning radius mm ≤5000 Braking distance m ≤10 (Initial speed 32±2km/h) Overall length mm 6960 Overall width mm 2500 Overall height mm 2850 Wheelbase mm 3900 Wheel tread mm 2060 Fork length mm 1200

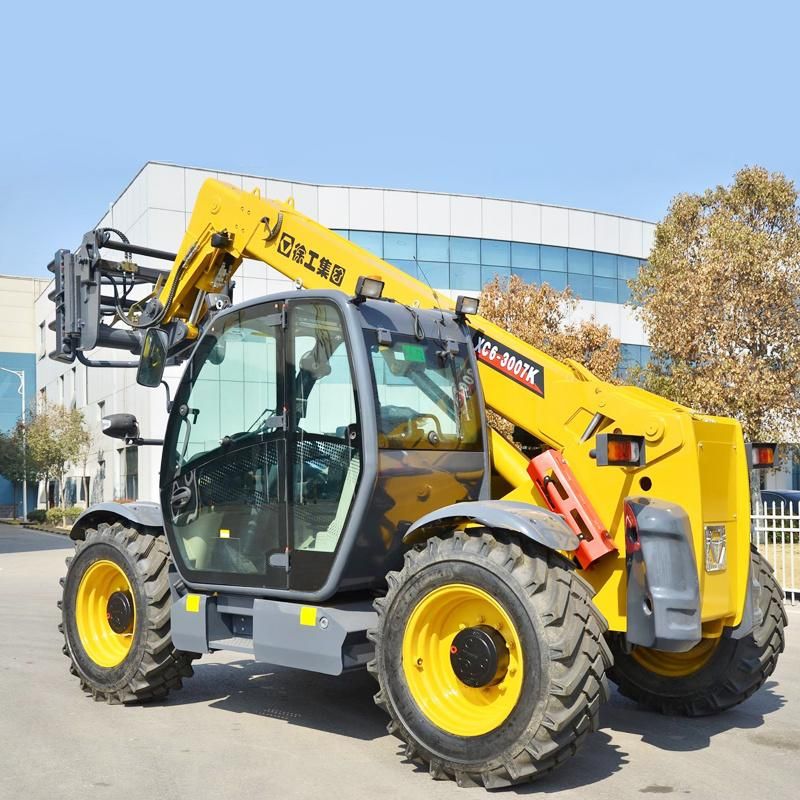

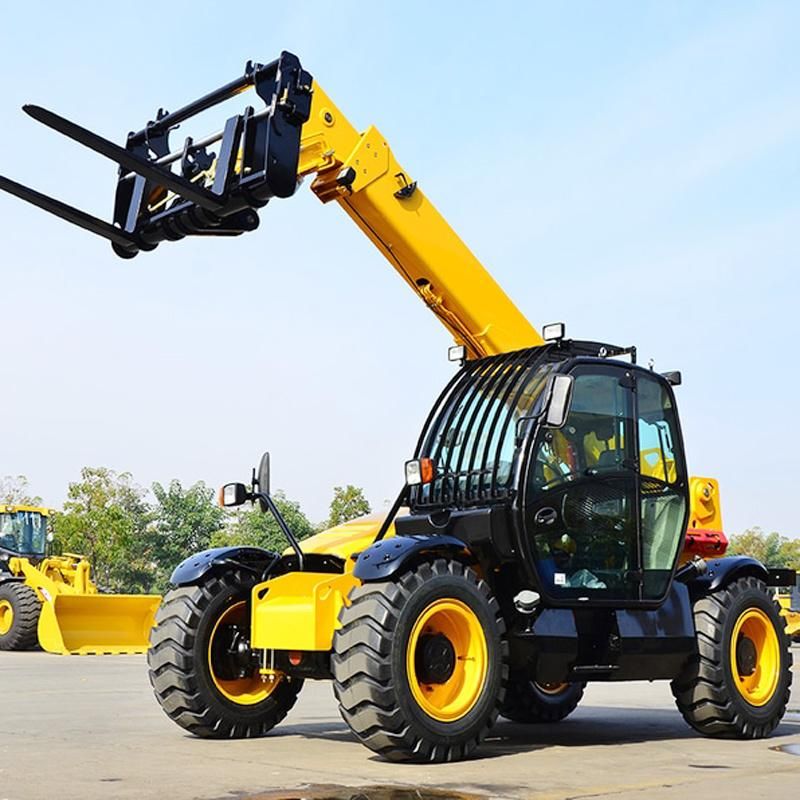

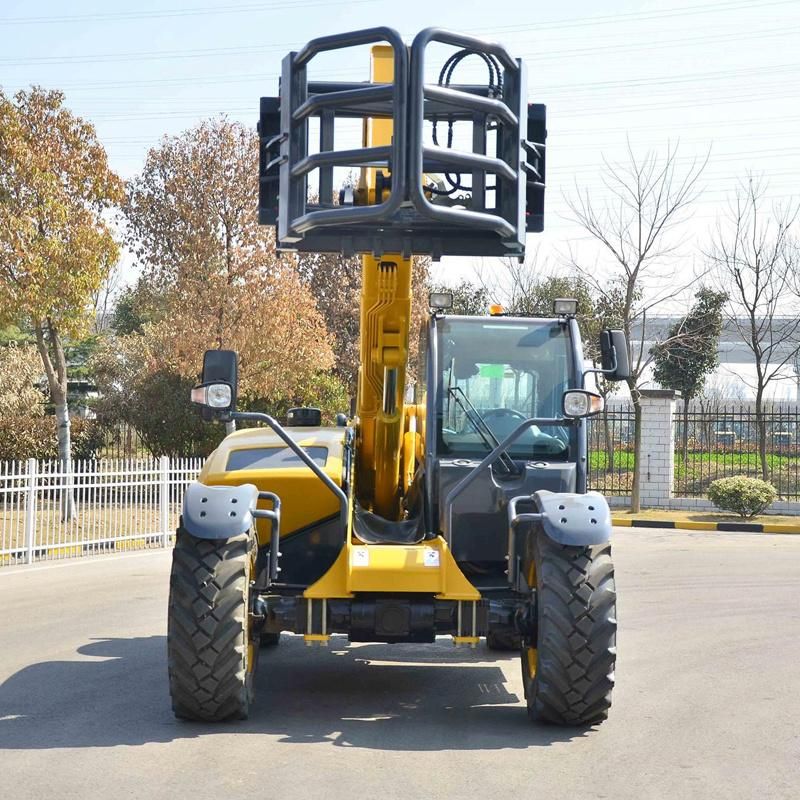

Product show

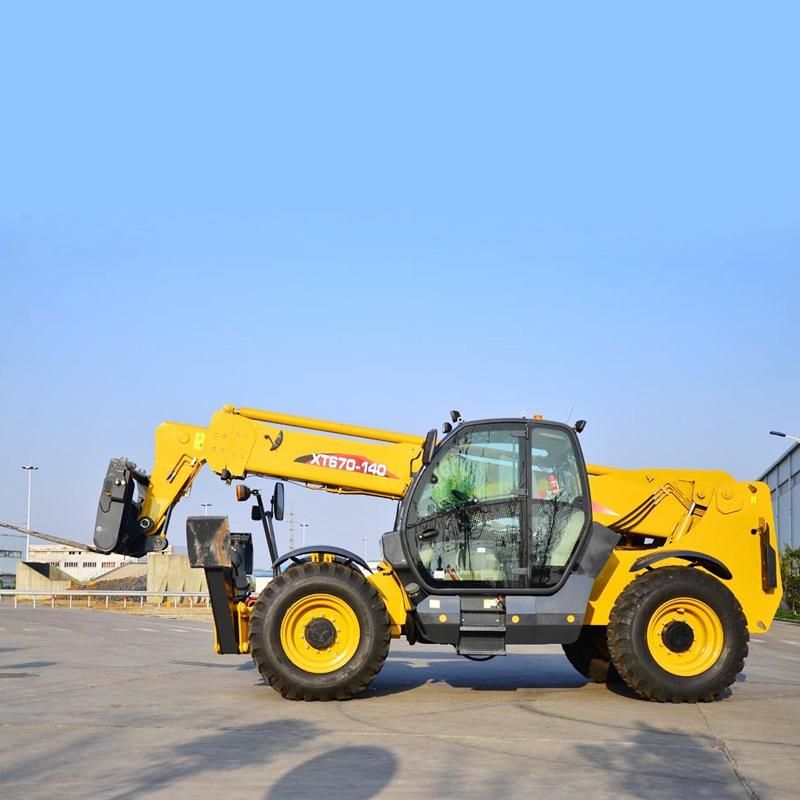

Product show
