Factory Direct 3 Wheel Battery Electric Forklift with 3 Wheel Electric Forklift
Banyitong Science & Technology Developing Co., Ltd.- Cab Location：Not Adjustable
- Type：Electric Forklift
- Power：AC Motor
- Load Capacity：1T - 5T
- Fuel：Electric
- Load center：500mm
Base Info
- Lift height：>5000mm
- Condition：New
- Controller Brand：Curtis
- Certificate：Ce
- Power Type：Battery
- Operate Type：Seat
- Rated Capacity：1600-2000kg
- Lift Motor Type：AC
- Drive Motor：AC Motor
- Brand：Mima
- Color：Red
- Lifting Height：6000mm
- Transport Package：Standard Packing
- Specification：ISO9001
- Trademark：MIMA
- Origin：China
- HS Code：84271090
- Production Capacity：2000 Units,Year
Description
Model No. TKC16 TKC20 Standard Power Type Battery Battery Operate Type Seated Seated Rated Capacity Q(kg) 1600 2000 Load Center C(mm) 500 500 Wheel Wheel Type Solid rubber Loading wheel 15×4.5-8 15×4.5-8 Driving wheel 18×7-8 200/50-10 Wheel tread, drive 1080 1050 Wheel tread, load 180 180 Number of wheels. -front/rear (X=Drive wheel) 2X / 2 2X / 2 Dimension Mast tilting α/β(º) 6/6 6/6 Lift height h1(mm) 3000 3000 Free lift height h2(mm) 140 140 Mast closed height h3(mm) 1995 1995 Mast extended Height h4(mm) 4030 4030 Overhead guard height h6(mm) 2000 2000 Mast Clearance h8(mm) 90 90 Overall Length 11(mm) 3090 3090 Length to fork face 12(mm) 2020 2020 Wheelbase y(mm) 1480 1480 Front overhang x(mm) 345 345 Overall width b1/b2(mm) 1250 1250 Fork Dimensions mm 1070*100*35 1070*100*40 Fork outside width b5(mm) 222-1000 222-1000 Trurning radius Wa(mm) 1660 1660 Function Driving Speed, lode/unload km/h 12/13 12/13 Max. Gradeability -load/unload % 12/14 12/14 Driving Motor (S2-60min) kw AC4.8×2 AC4.8×2 Lift Motor (S3-15%) kw AC8.2 AC8.6 Battery V/AH V/AH 48/400 48/490 Weight Battery kg 645 770 Service Weight kg 3050 3200 Steering Brake type Hydraulic Steering system Hydraulic
Why choose us
BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO., LTD.
Founded in 1994, BANYITONG SCIENCE & TECHNOLOGY DEVELOPING CO.,LTD is located in Hefei, Eastern of China. As the leading manufacturer of Chinese electric forklift and material handling equipment, we are specialized in designing and developing with all-around logistics handling solutions. We have passed not only ISO9001:2008, ISO14001:2004 and CE certifications, but also got the People's Republic of China Special Equipment Production License and the honor of "Innovative Enterprise".
Referring to 12 series and more than 50 kinds of products, MiMA can offer you with electric forklift, electric reach truck, pallet stacker, pallet truck, order picker, tow tractor, narrow aisle forklift, special forklift, AGV and other customized equipments, which can provide customers with logistics handling solutions from 500kg to 100,000kg. Due to serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.
As our logo, MiMA has the deep meaning: "Minimum Space, Maximum Benefit", we believe that urban logistics is a mega trend, that needs new, smart and saving space solutions, we have those solutions already today.
Owing to 100 national service networks and dozens of foreign dealers, we promise customers with competitive prices and perfect after-sales service.

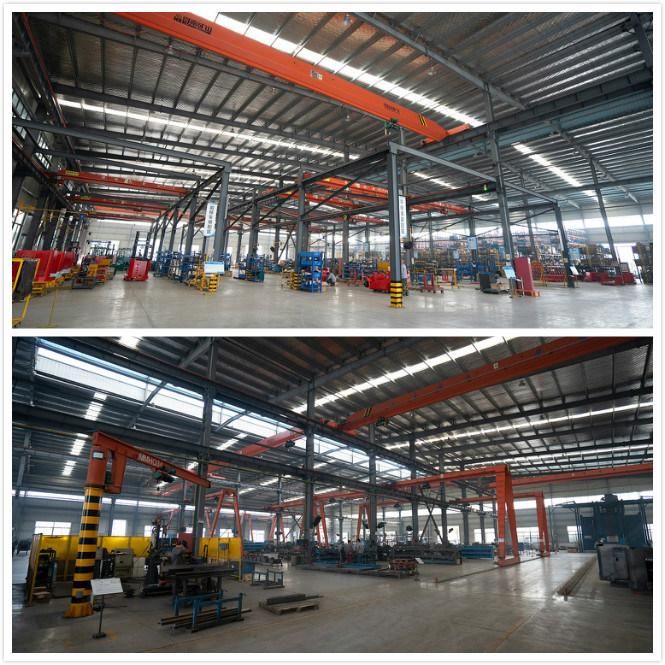

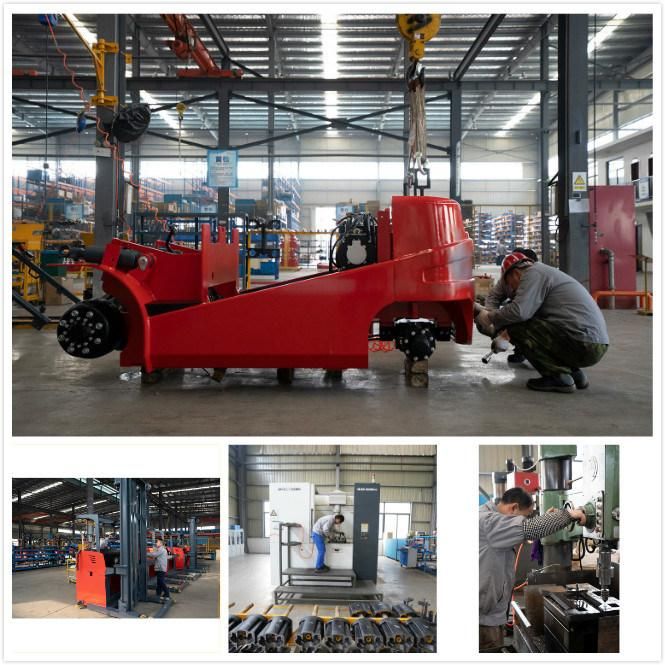

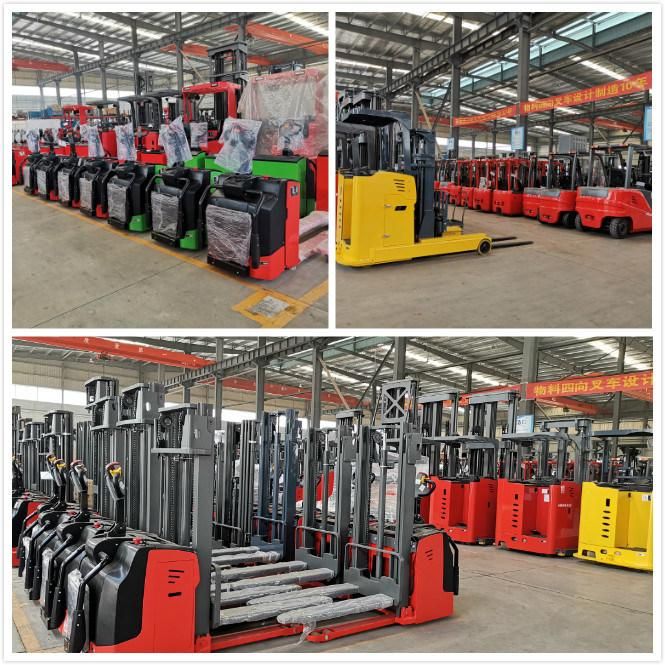

Our workshop and warehouse
Many of our models are in stock, for more details please feel free to contact us.
