• Model NO.：FG35
• Lift height：3000mm
• Condition：New
• Wheelbase：1900mm
• Fork Size：1070mm*130mm*50mm
• Rated Power：57kw,2800rpm
• Length with Fork：2895mm
• Brand：Ltmg
• Warranty：2000 Working Hours
• Height of Mast (Standard)：3000mm
• Min. Turning Radius(Outside)：2700mm
• Free Lift Height(Standard)：150mm
• Rear Overhang：495mm
• Transport Package：Container
• Specification：2895mm*4140mm*2150mm
• Trademark：LTMG
• Origin：China
• HS Code：8427209000
• Production Capacity：800sets,Year

The specification of 4 ton Gasoline/LPG forkliftModelUnit FG40Power type Gasoline/Liquefied gas/Natural gasRated capacity kg4000Load centermm500Operator type Drive in seatMax. lift height of mast with Load-backrest mm4275Max.lift  height of fork(standard)mm3000Height of mast (standard)mm2150Free lift height(standard)mm150Height of Load-backrestmm1240Front wheel overheadmm2105Length with forkmm2895Front overhangmm500Rear overhangmm495Wheel basemm1900The height of traction pinmm330Min. ground clearancemm130Overall widthmm1410The distance between forksmm1290/260Tread(front /rear)mm1160/1065Min. Turning radius(outside)mm2700Min. Turning radius(inside)mm230Min. Intersecting aislemm2685Mast tilt angledeg6° / 12°Fork sizemm1070X130X50
SpeedsMax.Drive speeds(with/without load)km/h18/19Lifting speeds (with load)mm/s350/380Lowering speeds(with /without full load)mm/s350/400Max. tractive forceKN20/18Max.grade ability (with/without full load)%15/18Total weightkg4270Weight Distribution full load (front/ rear)kg8380/930Weight Distribution zero load(front / rear)kg2120/3190Quantity of wheels  2X / 2Type of tyres Penumatic tiresTiresFront  250-15-16PRRear 6.00-10-10PRDriving Brake hydraumatic pedalParking Brake Mechanical manual BatteryV/AH12/80Engine (standard)Model GQ-4YRated outputkw/rpm57/2800Rated torqueN.m/rpm198/1800No.of cylinder 4-91X86DisplacementL2.237Fuel tank capacityL60Number of speeds for transmission 1-1 Power shift transmission
/ 2-2 Hand shift transmission

Product Features

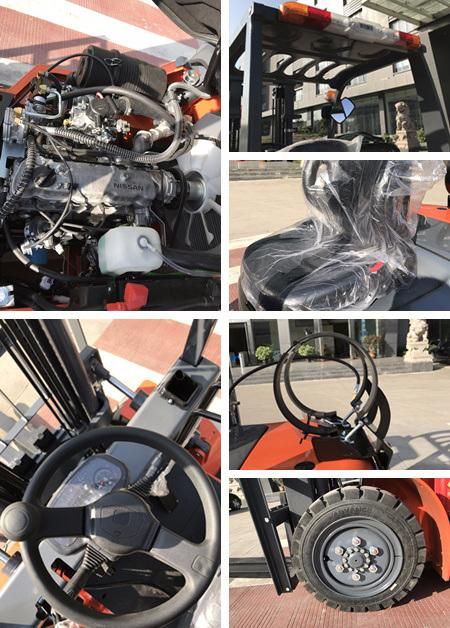

1. Equipped with Chinese powerful and reliable engines with excellent environmental performance; Original imported Nissan engine is optional.Using American IMPCO gas system which is more reliable.

2. Equipped with full set of LED lamps, which are brighter and energy saving.

3.The lighted instrument panel is conveniently positioned relative to the operator's line of sight. The LCD display monitors the machine's vital components and electrical systems including travel speed and operating time. The monitor with integrated diagnostic system provides easy service and lower maintenance costs. The advanced design wiring harness uses waterproof connectors and an enclosed multiunit fuse module for improved circuit security and reliability.

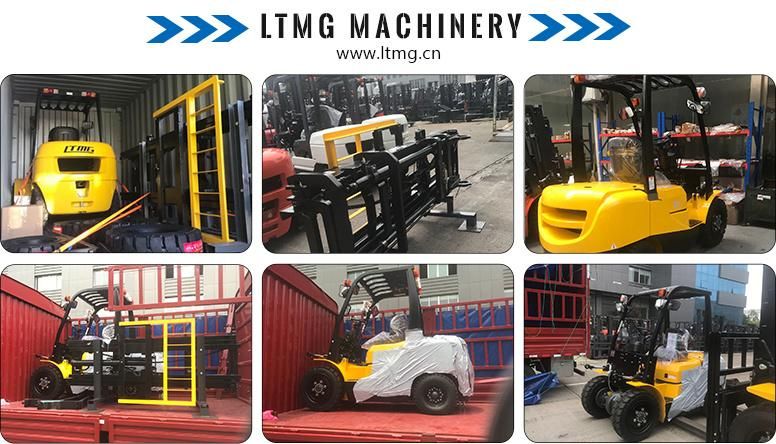

Packing & Delivery




Our factory




Our customer





After-sale service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.


FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
