• Model NO.：FD20
• Lift height：3000~5000mm
• Condition：New
• Free Lift ：160mm
• Fork Size：1070X122X40mm
• Weight：3330kg
• Engine：Isuzu
• Wheelbase：1600mm
• Color：Decided by Buyer
• Warranty：1 Year or 2000 Working Hours
• Max.Lifting Height：3000mm
• Tire Types：Pnumatic
• Number of Cylinders：4
• Transport Package：Exported Standard by Container
• Specification：2460mm*1150mm*1995mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：1000sets,Year

Manufacturer  LTMGModelHydraulic shift T/MFD20Load capacity   kg2000Load center mm500Power unit   Diesel Operator type   Driver/seatTire type   PneumaticWheel  Front/rear 2/2Max. lifting height mm3000Free lift  mm160Fork size L*W*Tmm1070*122*40Tilt rangeMast forward/backwarddeg6/12Overall length(without fork)  mm2460Total width mm1150Mast height (fork lowering)   mm1995Overall height fork raised With backrestmm4030Height to head guard             mm2120Turning radius(outside)   mm2170Front face of fork to front axle  mm450Min. right angle stacking aislewithout load length&clearancemm2615Speed Max Travelling full/no loadkm/h17/19Lifting  full/no loadmm/s550/580Lowering  full/no loadmm/s450/550Max.drawbar pull Power shift T/M full/no loadkg1670/830Manual shift T/M full/no loadkg1700/830Gradeability at 1.6km/hPower shift T/M full/no load%27/20Manual shift T/M full/no load%21/20Truck weight kg3330Weight  distributionFull  load  front/rearkg4700/630No  load    front/rearkg1510/1820Tires Numberfront/rear2/2Modelfront axle 7.00-12-12PRrear axle6.00-9-10PRWheelbase mm1600Tread Front/rearmm970/970Ground clearanceAt lowest point(mast)mm110Framemm115BrakeService  brake Hydraulic-foot pedal  Parking brake Mechanical-hand leverBatteryVoltage/capacityV/AH12/80EngineModel Mitsubishi S4SRated powerkw/rpm35.4/2250Rated torqueN.m/rpm170/1700Number of cylinders 4PlacementL2.369Fuel tank capacityL70TransmissionSpeed forward/backwardPower shift T/M Manual shift T/M 1-1 power shift T/M
2-2 manual shift T/MOperating pressureHydraulic system pressurekg/cm²180



What are the features of our products?



1. The standard LED lamps and warning lights make it safer,more energy efficient and create better werking condition.
2. Thicker reinforcing plate ensures the safety and efficiency.
3. New designed overhead guard protective device prevent the sudden accidents.

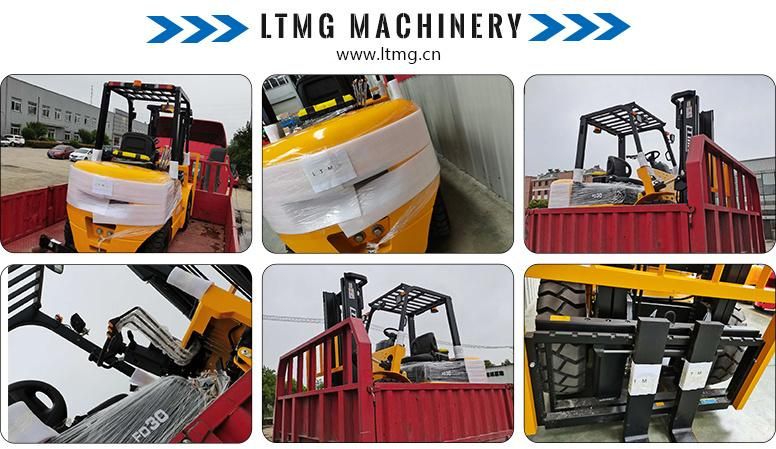

Packing and shipping



Our factory and customer






After sales service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.





FAQ

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.
Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.

2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
Details to see warranty policy for each model.

4.What payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.

5.What logistics ways we can work for shipment?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.

6.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 30 days.
