• Model NO.：FB35
• Fuel：Electric
• Load center：500mm
• Lift height：3000mm-6000mm
• Condition：New
• Engine：China , Japan for Choice
• Tire：Pneumatic Tire
• Mast：Duplex,Full Free Lift Mast
• Transmission：Automatic Transmission
• Options：LED Light, Lux Seat, Fan, Solid Tire Ect
• Attachements：Side Shifter, Clamps, Positioner Ect
• Color：Customer Customized
• OEM Serviece：Yes
• Transport Package：Container Shipment
• Specification：4810kg
• Trademark：SNSC
• Origin：China, Wuhu
• HS Code：84271090
• Production Capacity：15000pieces,Years

No.SpecificationsUnitFD35S1CharacteristicsPower  2Capacitykg30003Center of loadmm5004Lifting heightmm30005Free lifting heightmm1456Forks L×W×Hmm1070×125×457Mast tilt angle Forward/Backward.6/128Min.turning radiusmm22459Min. right angle stacking widthmm393010Min. right angle Aisle widthmm212011Min.ground clearancemm12012Overhead guard heightmm217013Height from seat to overhead guardmm100514Front overhangmm47515PerfMax.traveling speed(loaded)km/h13.516Max.lifting speed(loaded)mm/s28017Gradeability%1518DimensionsOverall length (without fork)mm251119Overall widthmm122520Mast extended height(with bracket)mm426421Mast lowered height mm205522ChassisTireFront 28×9-15-12PR23Front 28×9-15-12PRRear 18×7-8-14PR25Wheelbasemm160026Tread widthFront/Rearmm1000/98027Curb weightNone-loadkg481028PowertrainBatteryVoltage/CapacityV/Ah80/50029MotorTravelingKW1230LiftingKW1231ControllerCURTIS32Control type50%AC33Working pressureMpa17.5

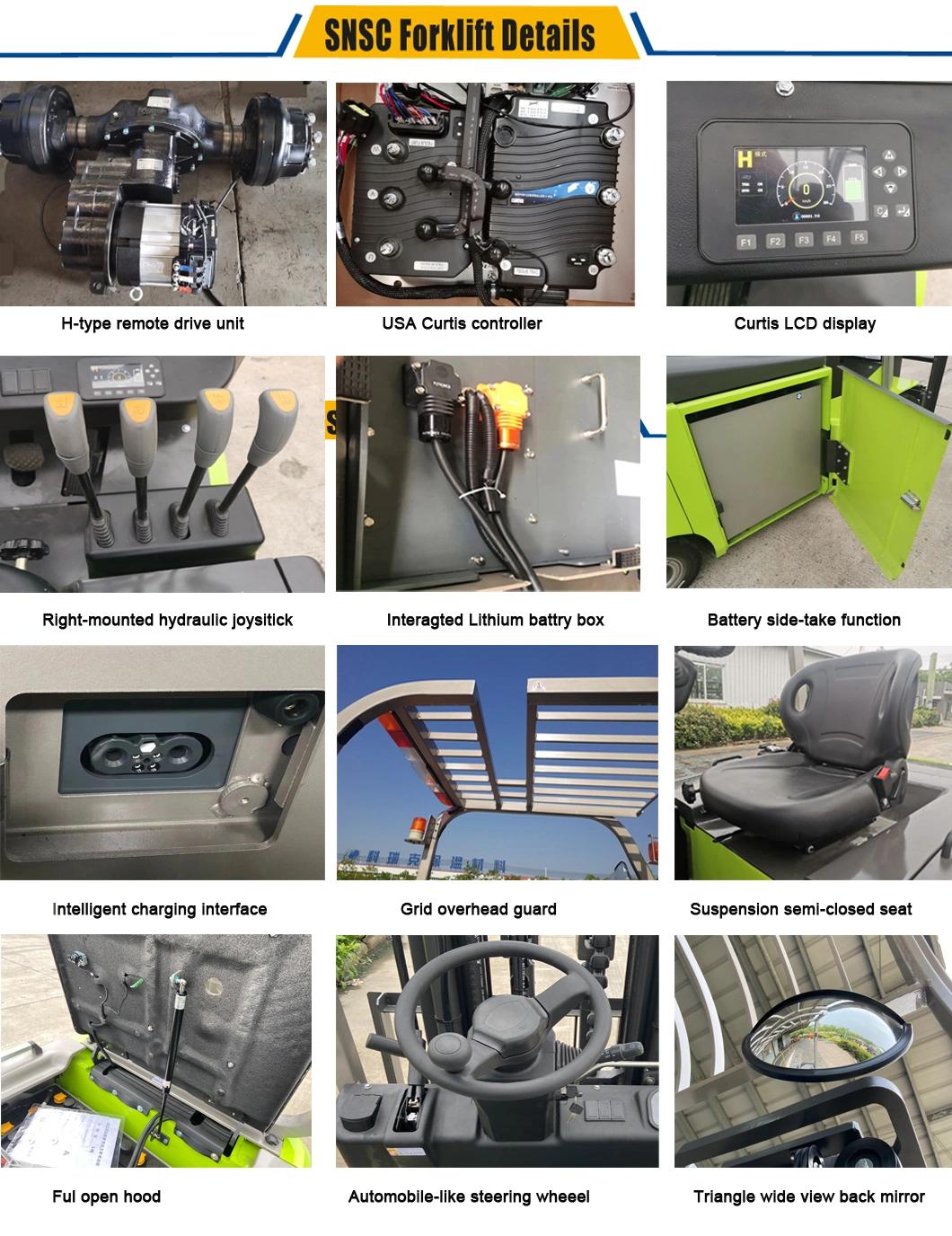

SNSC 3.5Ton Electric forklift main configuration:
With AC DriverMotor,AC Lift Motor;With Imported Electrical Controller & Water proof LCD Dispaly;With Chinese top brand battery 80V/500AH;With Battery charger;With High quality 1070mm fork, 1220-2500mm for as option;With Duplex wide view mast 3000mm lifting height; duplex mast 3000mm-triplex mast 7000mm as option;With Pneumation tire, solide tire and no marking tire as option;With Toyota seat with safty belft;With tool box and operation manul;

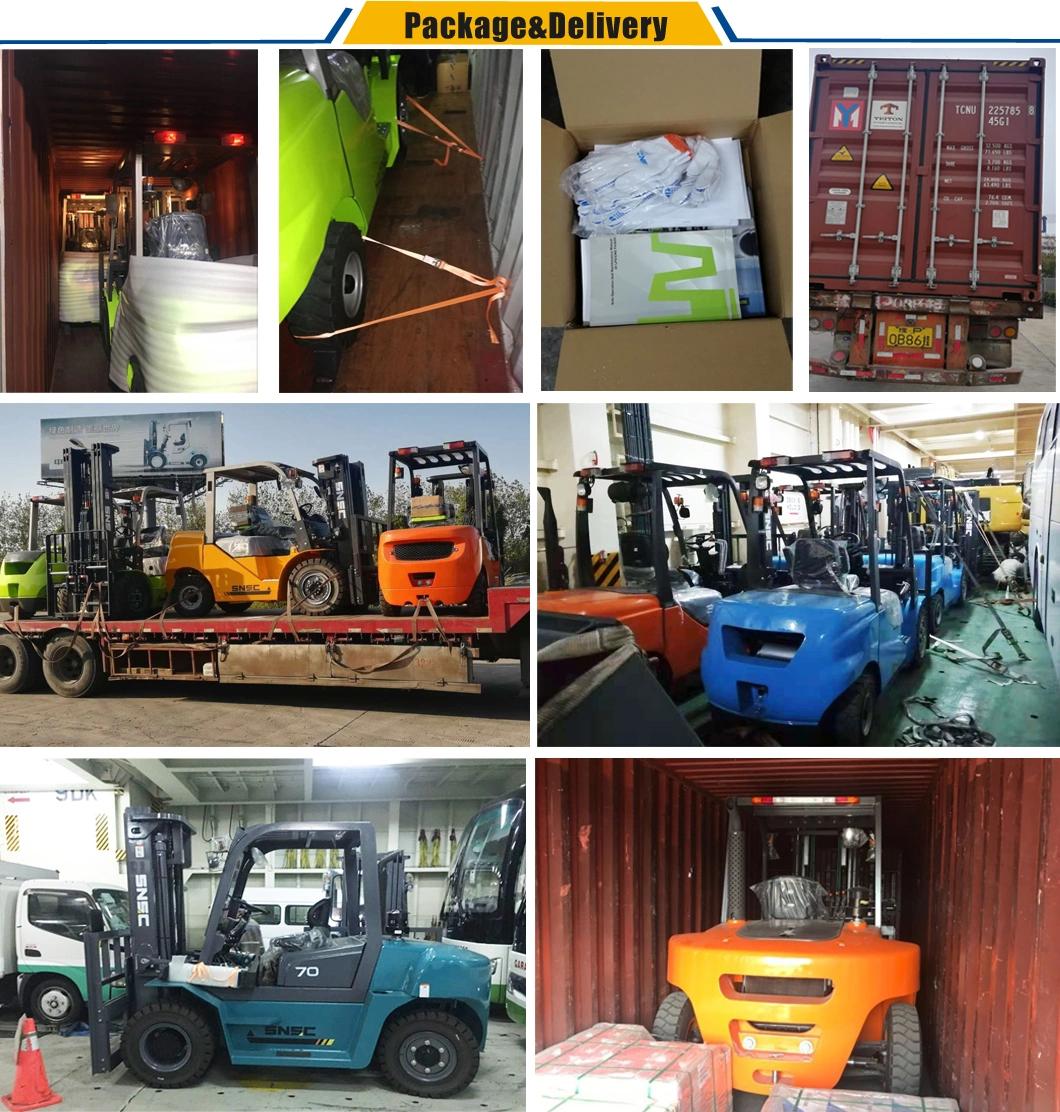

SNSC Forklift is shipped by container.

Packaging&Shipping 1*20'GP - 2 Units,     1*40'GP - 4 Units

Covered Forklift In Container Shipping with Tool Box, Catalogue, Gloves and Operation and Maintenance Manuals and Spare Parts together.


Forklift Warranty Time period for SNSC Forklift is 15 Months or 2500 Working Hours begins from the forklift arrival date of oversea port, deponds on which come first.
