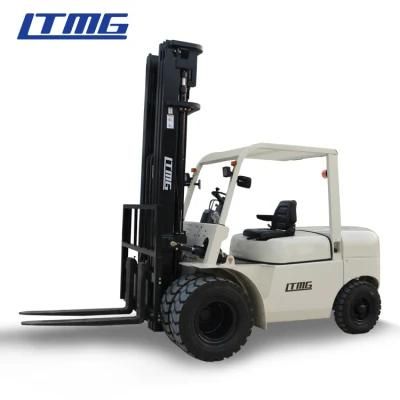

Chinese Diesel 3 Ton Forklift Mini Diesel Hydraulic Control Forklift Truck with Block Clamp

Xiamen LTMG Machinery Co., Ltd.
  • After-sales Service：Free Parts Within Warranty
  • Warranty：1 Year,2000 Working Hours
  • Cab Location：Not Adjustable
  • Type：Diesel Forklift
  • Power：Diesel Engine
  • Load Capacity：1T - 5T

Base Info

  • Model NO.：FD30
  • Fuel：Diesel
  • Load center：500mm
  • Lift height：3000-6000mm
  • Condition：New
  • Engine：Japanese or Chinese Engine
  • Fork Size：1070mm*125mm*45mm
  • Weight：4300kg
  • Wheelbase：1700mm
  • Load Centrer：500mm
  • Color：Customized
  • Fuel Tank：70L
  • Optional：Cab, Fork Positioner, Side Shift, Lift Height, etc
  • Transport Package：Container
  • Specification：2660mm*1225mm*2115mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：8427209000
  • Production Capacity：1000set,Years

Description

SpeedMax Travelling full/no loadKm/h18/19.5Lifting full/no loadmm/s450/500Lowering full/no loadmm/s450/450Max. Drawbar pullFull/no loadKg1550/1000Gradeability at 1.6km/hFull load%25Truck weight  Kg4290Weight distributionFull load front/rearKg6420/870No load front/rearKg1680/2610TiresNumberFront/rear2/2ModelFront axle28X9-15-12PRRear axle6.50-10-10PRWheelbase  mm1700TreadFront/rearmm1000/970Ground clearenceAt lowest point(mast)mm120Framemm135BrakeService brake  Hydraulic-foot pedaParking brake  Mechanical-hand leverBatteryVoltage/capacityV/AH12/80EngineModel  ISUZU C240Rated powerKw/rpm52/2500Rated torqueN-m/rpm15.7/1800Number of cylinders  4Fuel tank capacity  L70TransmissionShift stage(front/rear-type)  1-1 power shift T/MOperating pressureHydraulic system pressureKg/cm²180
 Chinese Diesel 3 Ton Forklift Mini Diesel Hydraulic Control Forklift Truck with Block Clamp Chinese Diesel 3 Ton Forklift Mini Diesel Hydraulic Control Forklift Truck with Block Clamp
Chinese Diesel 3 Ton Forklift Mini Diesel Hydraulic Control Forklift Truck with Block Clamp

LTMG always treat after-sale service as important as sale. Nowadays 16 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.
