• Model NO.：FD50
• Fuel：Diesel
• Load center：600
• Lift height：3000
• Condition：New
• Fork Size：1220mm*150mm*60mm
• Weight：8150kg,9750kg
• Engine：Chinese Engine,Isuzu,Mitsubishi
• Wheelbase：2250mm,2250mm
• Color：Could Be Designed by Buyer
• Tire Type：Pneumatic
• Optional：Solid Tires, Side Shift, Three Stage Mast, etc
• Height to Head Guard：2430mm,2430mm
• Free Lift：205mm
• Attachment：Paper Roll Clamp, Bale Clamp, Crane. etc

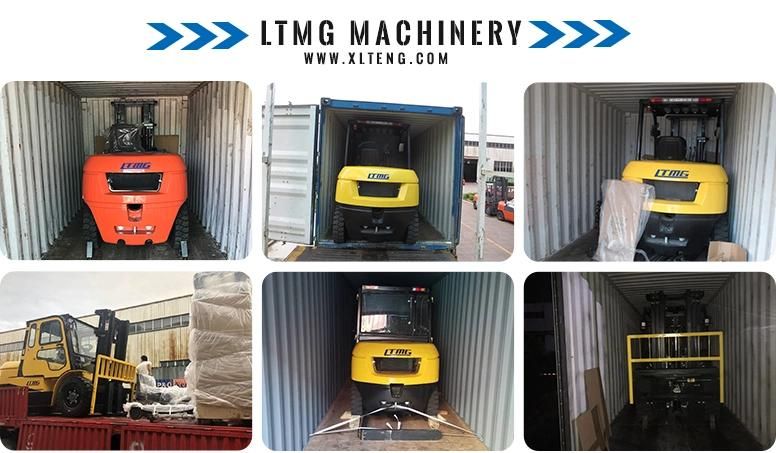

• Transport Package：Nude Package, Fixed in Container
• Specification：2190*1090*2195,2190*1090*2195
• Trademark：LTMG
• Origin：China
• HS Code：8427109000
• Production Capacity：1000 Units,Year

General1Model FD50FD702Power Type DieselDiesel3Rated Capacitykg500070004Load Centremm600600Characteristic&Dimension5Lift Heightmm300030006Fork SizeL×W×Tmm1220×150×601220×150×707Mast Tilt AngleF/RDeg6°/12°6°/12°8Fork Overhang (Wheel center to fork face)mm5905959Ground Clearance(Bottom of mast)mm20020010Overall DimensionLength to face of fork(Without fork)mm3440356511Overall Widthmm2010201012Mast Lowered Heightmm2500250013Mast Extended Height(With backrest)mm4415441514Overhead Guard Heightmm2430243015Turning Radius (outside)mm32503350Performance16SpeedTravel (Full load)km/h303017Lifting (Full load)mm/s50046018Max.Gradeability%2020Chassis19TyreFrontmm8.25-15-14PR8.25-15-14PR20Rearmm8.25-15-14PR8.25-15-14PR21Wheelbasemm2250225022Self weightkg81509750Power&Transmission23BatteryVoltage/CapacityV/Ah(12/80) x 2(12/80) x 224EngineModel 6BG1-0225Manufacture ISUZU26Rated output/r.p.m.kw82.4/200027Rated torque/r.p.m.N·m416/160028No.of Cylinder 629Bore×Strokemm105×12530Displacementcc649431Fuel Tank CapacityL12512532TransmissionType HydraulicHydraulic33StageFWD/RVS 2/22/2

Product feature

1.Equipped with Chinese powerful and reliable engines with excellent environmental performance;
2.Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.
3.install optional three-way catalytic device to lower the harmful emission beside of low emission engines; Adopt soundproof cotton to ease noise and high exhaust system as option to reduce dust.

Optional

1.Japan engine ISUZU or Mitsubishi,EPA koller engine ,Euro III engine are optional.
2.Lifting Height 3m-7m
3.Full-free Duplex or Triplex Mast
4.Side Shift, Solid Tires, Suspension Seat, fork positioner .
5.Driver's Cabin, Customized Color, air-conditioner, etc.
6.Attachments :paper roll clamp,bale clamp ,rotating clamp etc.

After sales service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.
