Small Turning Semi-Electric Hydraulic Lifting Stacker
Jining Bafang Mining Machinery Group Co., Ltd.- Cab Location：Not Adjustable
- Type：Stacker
- Load Capacity：1T - 5T
- Load center：>500mm
- Lift height：Less Than 2m
- Condition：New
Base Info
- Model NO.：BF-CL16
- Transport Package：Wooden Frame
- Trademark：Bafang
- Origin：China
- Production Capacity：500sets,Month
Description
Model
BF-CL16
BF-CL20
BF-CL25
BF-CL30
BF-CL35
Forklift height
2080mm
1600mm
1850mm
2150mm
2350mm
Forklift length
1900mm
1900mm
1900mm
1900mm
1900mm
Lifting height
1600mm
2000mm
2500mm
3000mm
3500mm
Min forks height
90mm
90mm
90mm
90mm
90mm
Max forks width
680mm
680mm
680mm
680mm
680mm
Forks length
1000mm
1000mm
1000mm
1000mm
1000mm
Min turning radius
1800mm
1800mm
1800mm
1800mm
1800mm
Load center distance
500-600
500-600
500-600
500-600
500-600
Battery
24v/180ah
24v/180ah
24v/180ah
24v/180ah
24v/180ah
Lifting motor
2.2kw
2.2kw
2.2kw
2.2kw
2.2kw
Front wheel radius
80mm
80mm
80mm
80mm
80mm
Rear wheel radius
125mm
125mm
125mm
125mm
125mm
Driving wheel radius
250mm
250mm
250mm
250mm
250mm
Forklift width
860mm
860mm
860mm
860mm
860mm
Forks width
680mm
680mm
680mm
680mm
680mm

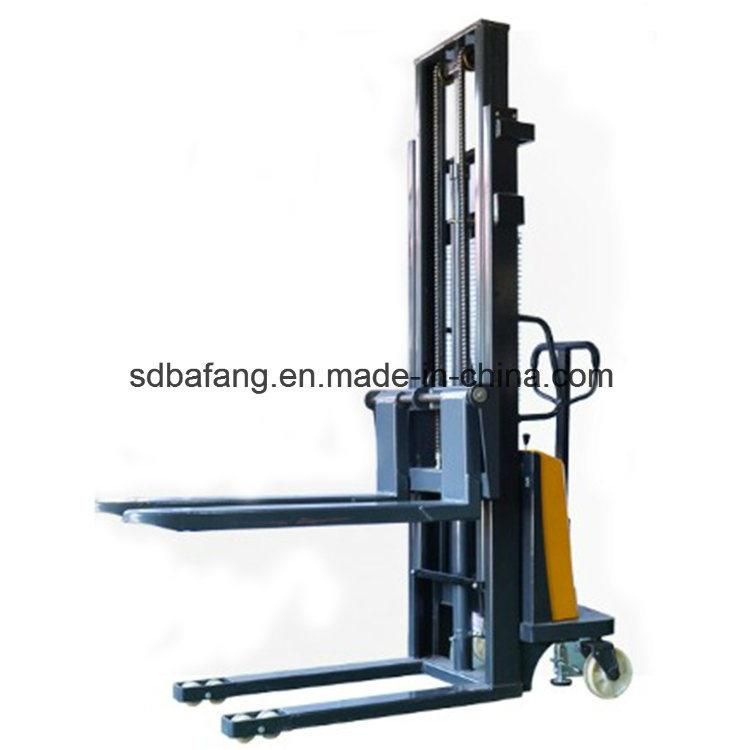

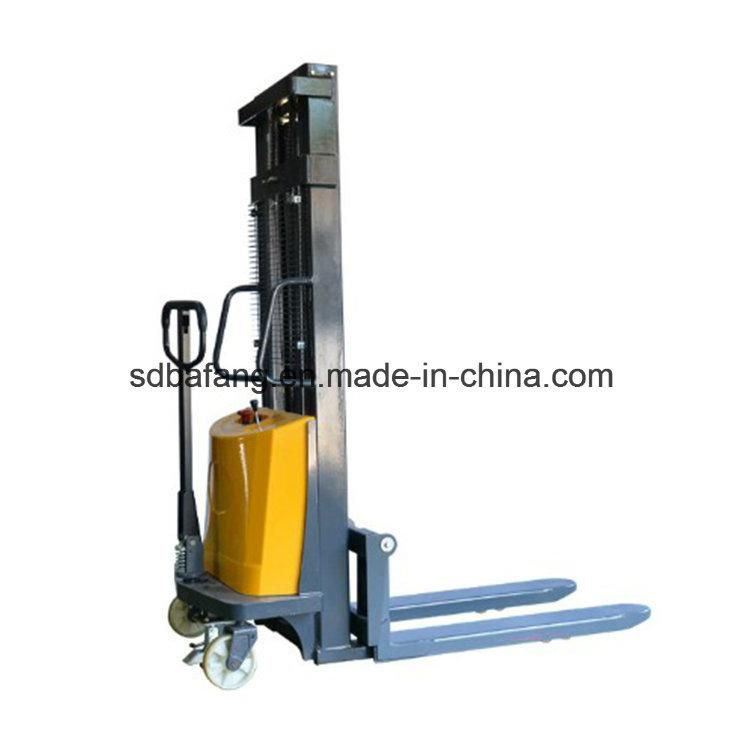

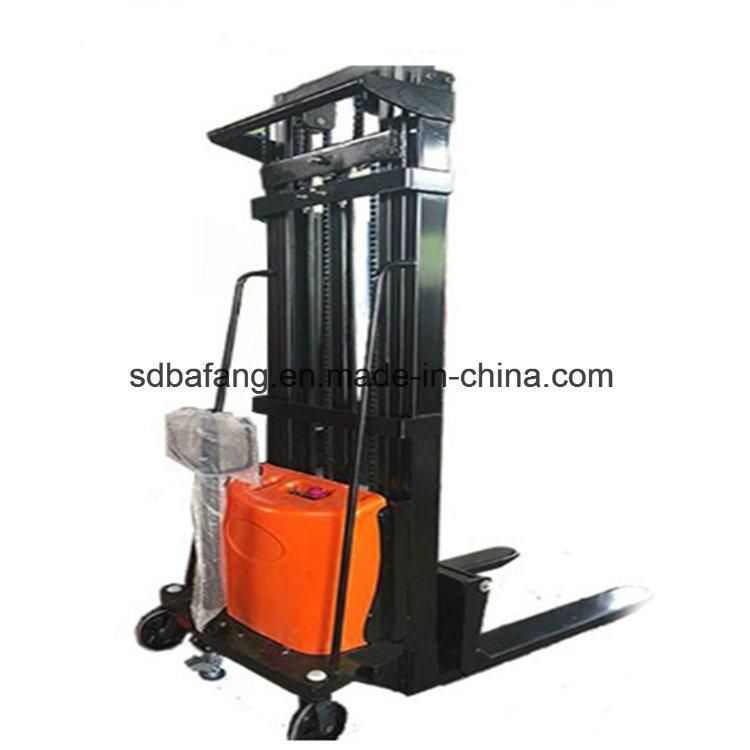

Product pictures
Company information
For more detailed specifications please feel free to contact with us
Jining Bafang Mining Machinery Group Co.,Ltd
Name:Mavis Zhang
Telephone:86-537-2228876 +86-13012657265
Web:sdbafang.en.made-in-china.com
