High Efficiency Lifting Equipment Hand Hydraulic Stacker Wholesale
Jining Bafang Mining Machinery Group Co., Ltd.- Cab Location：Not Adjustable
- Type：Stacker
- Load Capacity：1T - 5T
- Load center：>500mm
- Lift height：Less Than 2m
- Condition：New
Base Info
- Model NO.：BF-SG10
- Transport Package：Wooden Frame
- Trademark：Bafang
- Origin：China
- Production Capacity：500sets,Month
Description
Column
8# U-steel
10# U-steel
12# U-steel
12# H-steel
14# H-steel
Rated load
500kg
1000kg
1500kg
2000kg
3000kg
Max height
1600mm
1600mm
1600mm
1600mm
1600mm
Min height
≤100mm
≤100mm
≤100mm
≤100mm
≤105mm
Fork length
800mm
800mm
800mm
800mm
800mm
Fork width
160-580mm
200-580mm
240-580mm
240-580mm
240-600mm
One time lifting height
≈20mm
≈20mm
≈15mm
≈15mm
≈10mm
Turning radius
≤1450mm
≤1450mm
≤1450mm
≤1450mm
≤1450mm
Length
1250mm
1280mm
1280mm
1280mm
1280mm
Width
720mm
730mm
730mm
730mm
740mm
Height
1980mm
1980mm
1980mm
1980mm
1980mm
Weight
≈100kg
≈125kg
≈150kg
≈170kg
≈200kg
Front wheel radius
Ø90mm
Ø90mm
Ø90mm
Ø90mm
Ø90mm
Rear wheel radius
Ø180mm
Ø180mm
Ø180mm
Ø180mm
Ø180mm
Brake
Customize
Customize
Customize
Customize
Customize

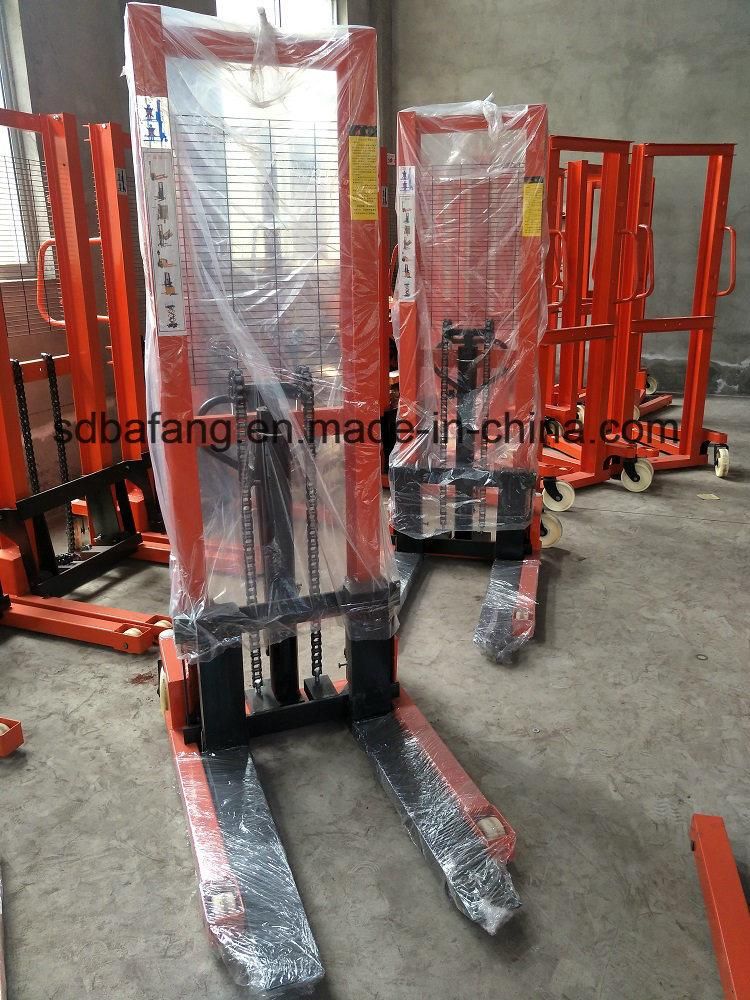

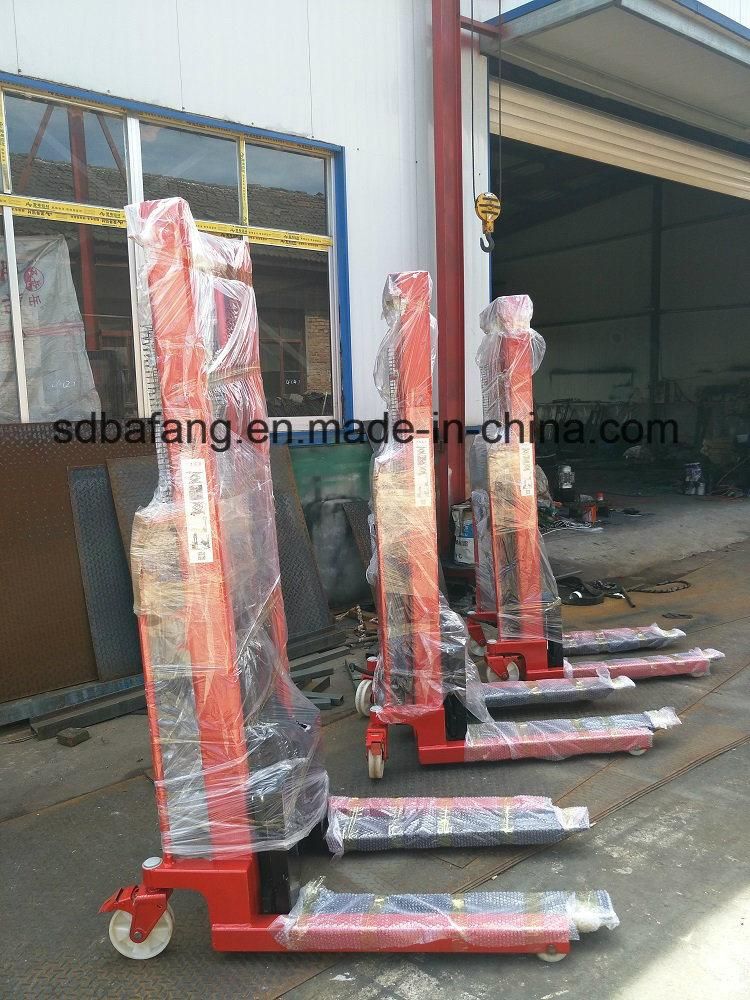

Product pictures
