• Model NO.：FD120
• Lift height：3000~5000mm
• Condition：New
• Fork Length：1220mm
• Weight：13750kg
• Engine：Isuzu,Chaochai
• Wheelbase：3000mm
• Color：Decided by Buyer
• Cab：Decided by Buyer
• Rated Power：82.3kw,2000rpm
• Overall Length(Without Fork)：4455mm
• Item：12t Diesel Truck
• Brand：Ltmg
• Transport Package：Container
• Specification：4455mm*2245mm*2850mm
• Trademark：LTMG
• Origin：China
• HS Code：84272090
• Production Capacity：1000set,Years

ModelFD120MastVM300Fork lengthmm1220load capacitykg120000Load centermm600Max. lifting heightmm3000Free liftmm205Tilt range(front/back)deg6°/12°Liftingno loadmm/s390full loadmm/s350loweringno loadmm/s310full loadmm/s450Travellingfront/rear(full load)km/h22front/rear(no load)km/h28Gradeabilltyno load%20full load%22Min.turning radiusmm4100Numberfront/rear4/2Sizefront9.00×20-14PRrear9.00×20-14PROverall length(without fork)mm4455Total widthmm2245Height of head guardmm2560Overall height(Mast lowering)mm2850Wheelbasemm3000Treadfrontmm1600rearmm1700Ground clearance(Mast)mm245weightkg13750Model ISUZU 6BG1Rated powerkw/rpm82.3/2000Rated torqueN-m/rpm418/1500Number of cylinders 6DisplacementL6.494
Product Features

1.Safe :
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of
visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable :
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

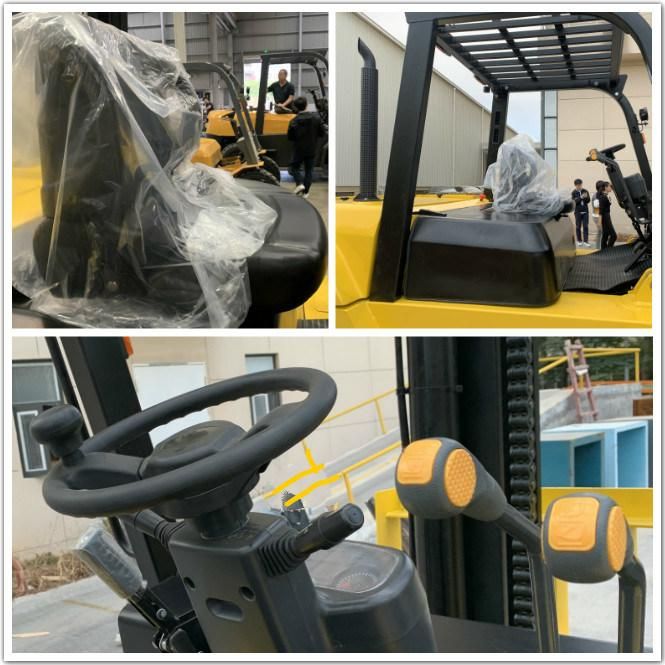

Details

Certificates

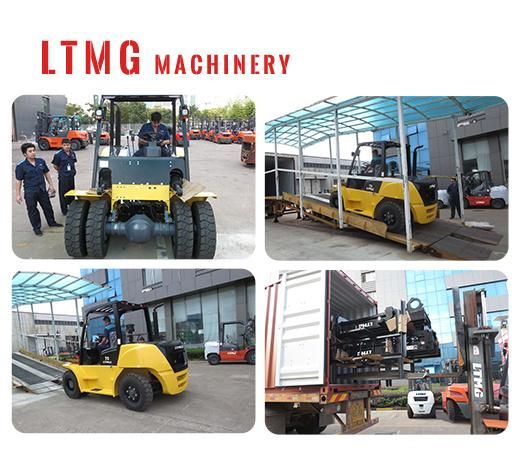

Packaging & Shipping




Factory information & Customer visit




Customer show



After sales service

Nowadays we have been sell more than 100 countries. All the products of LTMG supplied with one year
or 2000 working hours (which occurs first) period quality warranty.

If the machine have any problem within the warranty time, but not caused by man-made, we will send you
spare parts for free.

Detail clauses and policies please see to our website and product's quality certificate.



Contact Me

FAQ
1.What's the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.
LTMG neverrecruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What's the payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is from 30 days.
