New Electric Forklift 1.5ton 2ton 2.5ton 3ton with Curtis AC Controller 1.5 Ton 2 Ton 2.5 Ton 3 Ton

Xiamen LTMG Machinery Co., Ltd.
  • Cab Location：Adjustable
  • Type：Electric Forklift
  • Power：AC Motor
  • Load Capacity：1.5 Ton
  • Fuel：Electric
  • Load center：500mm

Base Info

  • Model NO.：FB15
  • Lift height：3000~5000mm
  • Condition：New
  • Rated Capacity：1500 Kg
  • Fork Size(L*W*T)：920mm*120mm*35mm
  • Length to Fork Face of Fork(Withou Fork)：2190mm
  • Overall Width：1090mm
  • Mast Lowered Height：1995
  • Overhead Guard Height：2195
  • Turning Radius(Outside)：2010mm
  • Front Overhang：420mm
  • Ground Clearance：110mm
  • Wheelbase：1420mm
  • Travel Speed：14 Km,H
  • Max. Gradeability：15%
  • Service Weight：3070kg
  • Battery Standard：48V,400ah
  • Transport Package：Container
  • Specification：2190mm*1090mm*2195mm
  • Trademark：LTMG
  • Origin：China
  • HS Code：8427109000
  • Production Capacity：800sets,Year

Description

Driving AC  , lifting DC
Driving AC  , lifting AC(as option )  Operating pressure  kg/cm²145

Product Features

1.The standard LED lamps and warning lights make it safer,more energy efficient and create better working condition.

2.Thicker reinforcing plate ensures the safety and efficiency.

3.New designed overhead guard protective device prevent the sudden accidents.

4.Driver could easy to read and understand it according to the right instrument panel with clear meter display.

5.High voltage and large capacity battery can supply the forklift with strong power;GS & HOPPECKE battery group is optional according to customers' requirements.

New Electric Forklift 1.5ton 2ton 2.5ton 3ton with Curtis AC Controller 1.5 Ton 2 Ton 2.5 Ton 3 Ton

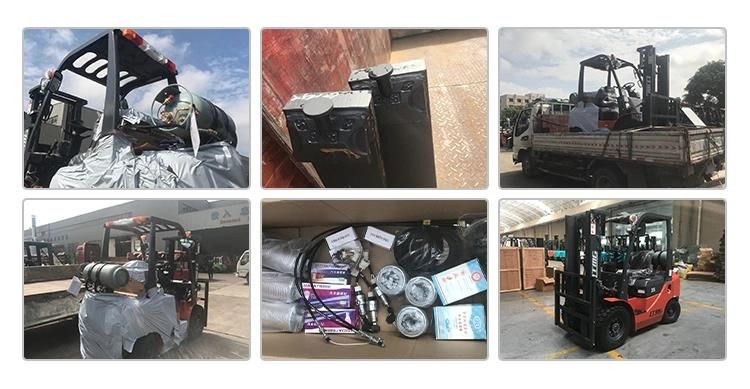

Packing & Delivering

New Electric Forklift 1.5ton 2ton 2.5ton 3ton with Curtis AC Controller 1.5 Ton 2 Ton 2.5 Ton 3 Ton

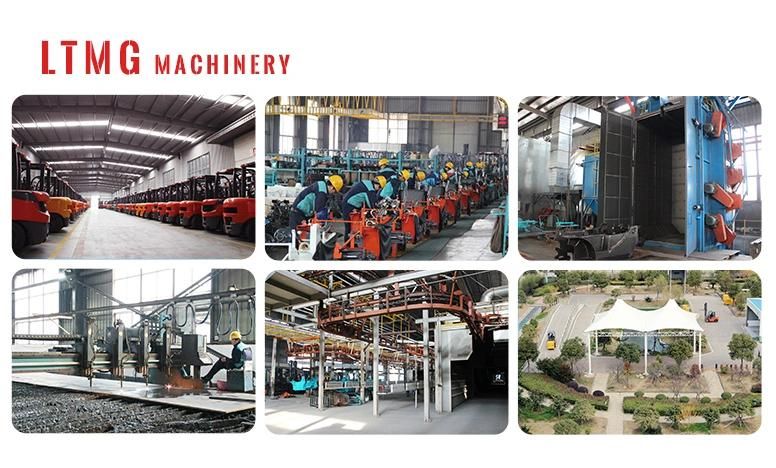

Our Factory
New Electric Forklift 1.5ton 2ton 2.5ton 3ton with Curtis AC Controller 1.5 Ton 2 Ton 2.5 Ton 3 Ton

Our Customers
New Electric Forklift 1.5ton 2ton 2.5ton 3ton with Curtis AC Controller 1.5 Ton 2 Ton 2.5 Ton 3 Ton

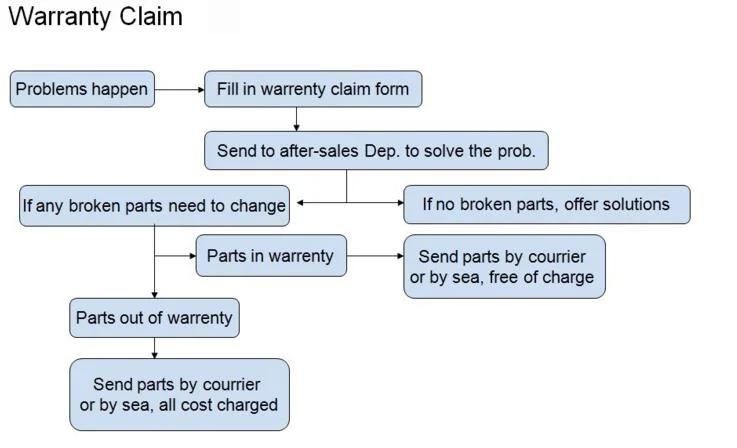

After-sale Service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.


New Electric Forklift 1.5ton 2ton 2.5ton 3ton with Curtis AC Controller 1.5 Ton 2 Ton 2.5 Ton 3 Ton


FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.  Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
