• Model NO.：SF30
• Lift height：3000~5000mm
• Condition：New
• Length：3779mm
• Height：2070mm
• Front Tread：1000mm
• Wheel Base：1700mm
• Transport Package：Nude Packing
• Specification：ISO9001: 2000
• Trademark：Shantui
• Origin：China
• HS Code：8429521200
• Production Capacity：500,Month

ModelSF30unitLoad capacity3000Kgload center500mmPower typeDiesel DimensionsLift size3000mmFree lift height160mmFork size1070× 122× 45mmMast tilt angle6/12°Front overhang495mmOverall dimensionsLength to face of fork3779mmOverall width1226mmOverall height fork lowered2070mmOverall height fork raised4216mmOverhead guard height2140mmTurning radius2400mmMin. right angle aisle width2100mmPerformanceTravel speed(full load/no load)19/20Km/hLift speed with load420mm/secMax. gradeability20%Self weight4350KgWheel& tiresTiresFront28× 9-15-14PR Rear6.50-10-10PR TreadFront1000mmRear980mmWheelbase1700mmGround clearance(full load/no load)Mast110/135mmFrame130/135mmDrive units& controlEngineModelISUZU C240PKJ Rated output34.5/2500Km/rpmRated torque139/1800N· m/rpmNo. of cylinder4 Bore× stroke86× 102mmDisplacement2.369L

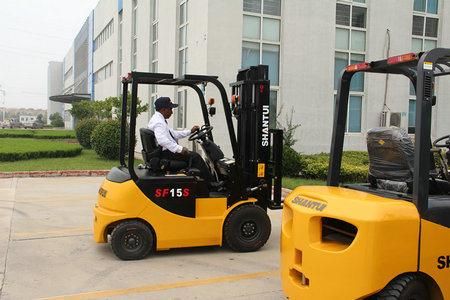

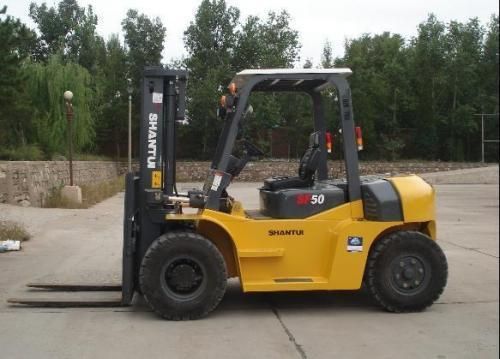

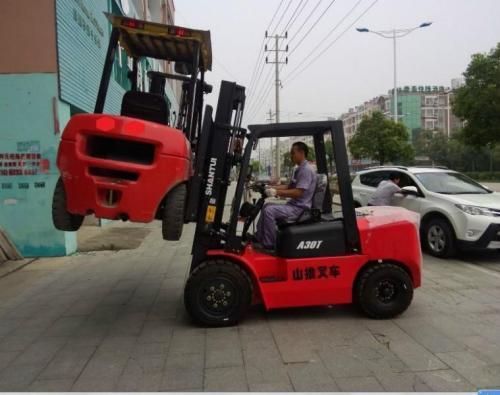

Product Show
